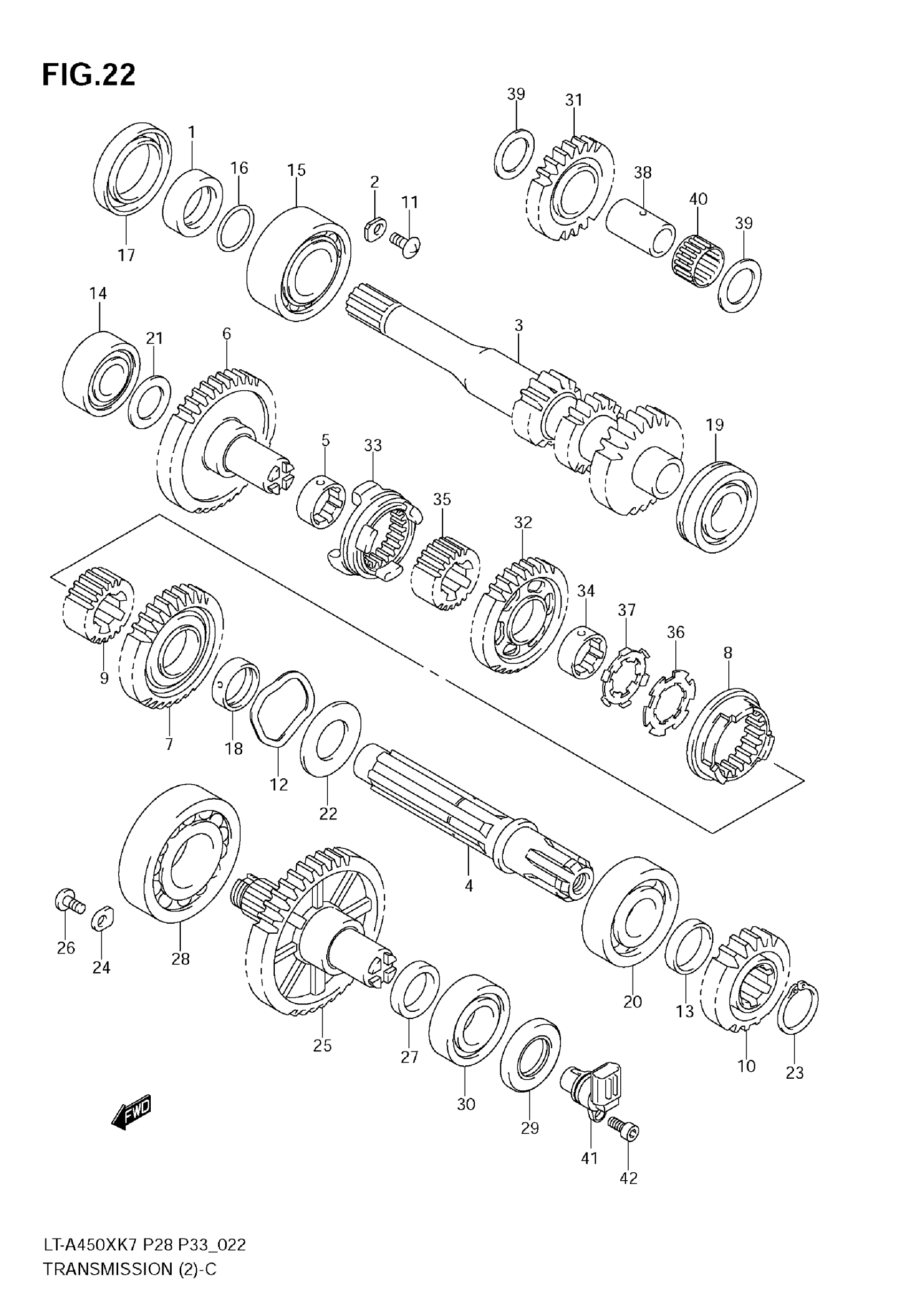

Suzuki LT-A450X (2009) TRANSMISSION (2) Diagram

#

Description
Price

1

SPACER, DRIVE SHAFT

21102-31G00

$34.45

2

RETAINER, DRIVE SHAFT, R

24741-21A00

$2.80

3

SHAFT, DRIVE (NT:25/17/16) | MODEL K7

29111-11H00

Unavailable

3

SHAFT, DRIVE (NT:25/16/16) | MODEL K8/K9

29111-11H01

Unavailable

4

SHAFT, SUB T/M COUNTER

29131-31G00

$110.28

5

BUSH, SUB T/M DRIVEN GR LOW

29215-07G00

$25.08

6

GEAR, SUB T/M DRIVEN LOW | NT:41

29311-31G00

$150.17

7

GEAR, SUB T/M DRIVEN HIGH | NT:31

29321-31G00

$175.28

8

DOG, GEAR SHIFT HIGH This part replaces 29331-31G00.

29331-31G10

$89.47

9

SPACER, SUB T/M SELECT

29332-31G00

$49.73

10

GEAR, SUB T/M DRIVE NO.2 | NT:20

29411-11H00

Unavailable

11

SCREW, RTNR DRIVE SHAFT, R | 6X12

09125-06110

$2.13

12

WASHER, SUB T/M DRIVEN

09164-34001

$8.02

13

SPACER, SUB T/M DRIVE GEAR | 25X30X7

09180-25097

$11.10

14

BEARING, SUB T/M COUNTER, R | 20X47X14

09262-20139

$48.87

15

BEARING, DRIVE SHAFT, R | 25X62X17

09262-25153

$79.03

16

.O-RING (D:2.4,ID:24.7) | D:2.4,ID:24.7

09280-25004

$2.01

17

SEAL, DRIVE SHAFT SPACE | 38X56X7.0

09283-38025

$28.75

18

BUSH, SUB T/M DRIVEN GR

24252-19F00

$19.32

19

BEARING, DRIVE SHAFT, L | 25X52X15

09262-25142

$40.43

20

BEARING, SUB T/M COUNTER, L

09262-25073

$23.39

21

WASHER, SUB T/M DRIVEN, R

08211-20363

$2.87

22

WASHER, SUB T/M DRIVEN, L

08211-25463

$4.23

23

CIRCLIP, SUB T/M GEAR

08331-3125A

Unavailable

24

RETAINER, SEC DRIVE SHAFT

24741-21A00

$2.80

25

SHAFT, SUB T/M OUTPUT

29120-11H00

Unavailable

26

SCREW, RETAINER (6X12)

09125-06110

$2.13

27

SPACER, SUB T/M OUTPUT | 25X34X5.5

09180-25083

$15.42

28

BEARING, SUB T/M OUTPUT, R | 30X72X19

09262-30077

$63.52

29

SEAL,OIL (25X45X5) | 25X45X5

09283-25076

$9.33

30

BEARING, SUB T/M OUTPUT, L | 25X52X15

09262-25003

$22.40

31

GEAR, REVERSE IDLE This part replaces 24561-31G01.

24561-31G20

Unavailable

32

GEAR, REVERSE DRIVEN (NT:32)

24571-31G00

$128.95

33

DOG, SUB T/M SELECT SL

24581-31G00

$97.15

34

BUSH, REVERSE DRIVEN GEAR

29215-07G00

$25.08

35

SPACER, REVERSE SELECT

29332-31G00

$49.73

36

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.58

37

WASHER, LOCK

09169-25001

$2.95

38

SHAFT, REVERSE IDLE

24551-31G00

Unavailable

39

WASHER, REVERSE IDLE GEAR | 20X30X1.0

09181-20195

$2.68

40

BEARING, REVERSE IDLE GEAR | 20X47X14

09263-20060

$22.53

41

SENSOR, SPEED This part replaces 34990-31G00.

34990-31G01

$105.97

42

BOLT, SENSOR

07130-0616B

$2.38
