Description

Price

1

TIE ROD, STEERING

51281-31G01

$46.22

2

KNUCKLE, STEERING RH

51231-11H00

$331.25

3

KNUCKLE, STEERING LH

51241-11H00

$331.25

4

END, KNUCKLE STEERING

51210-31G10

$65.76

5

ROD, END, R

51260-31G10

$54.33

6

ROD, END, L

51270-31G10

$54.33

7

NUT, TIE ROD (RH THREAD)

09140-12030

$2.92

8

NUT, ROD END

08314-4010B

$2.50

9

NUT, TIE ROD (LH THREAD)

09140-12035

$2.92

10

COTTER PIN, ROD END

04111-2020A

$1.49

11

WASHER, ROD END

09162-10010

$3.72

12

NUT, KNUCKLE END

08314-4010B

$2.50

13

PIN, KNUCKLE END COTTER

04111-2020A

$1.49

14

WASHER, KNUCKLE END

08322-0110B

$2.34

15

WASHER, KNUCKLE END LOCK

09162-10010

$3.72

16

DUST SEAL, INNER (38X55X8)

09283-38012

$14.74

17

DUST SEAL, OUTER (38X55X6)

09285-38002

$13.30

18

BEARING This part replaces 51259-31G00.

51259-31G10

$99.34

19

CIRCLIP This part replaces 08331-3130A.

08331-31309

$2.57

20

CLIP This part replaces 08331-4155A.

08331-41559

$3.70

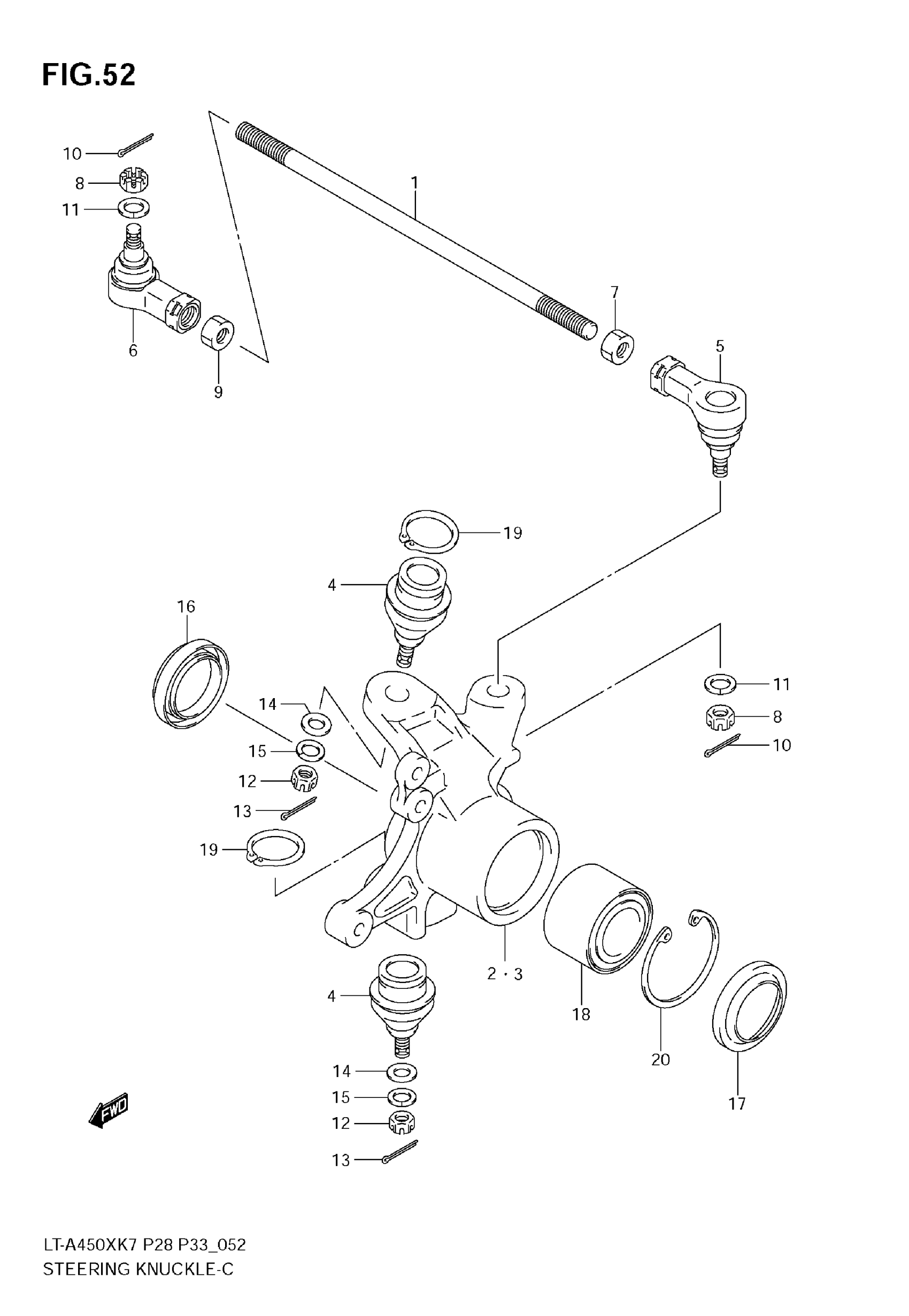

Suzuki LT-A450X (2009) STEERING KNUCKLE Diagram
