2009 Suzuki LT-A450X Starter Clutch Diagram

← All diagrams

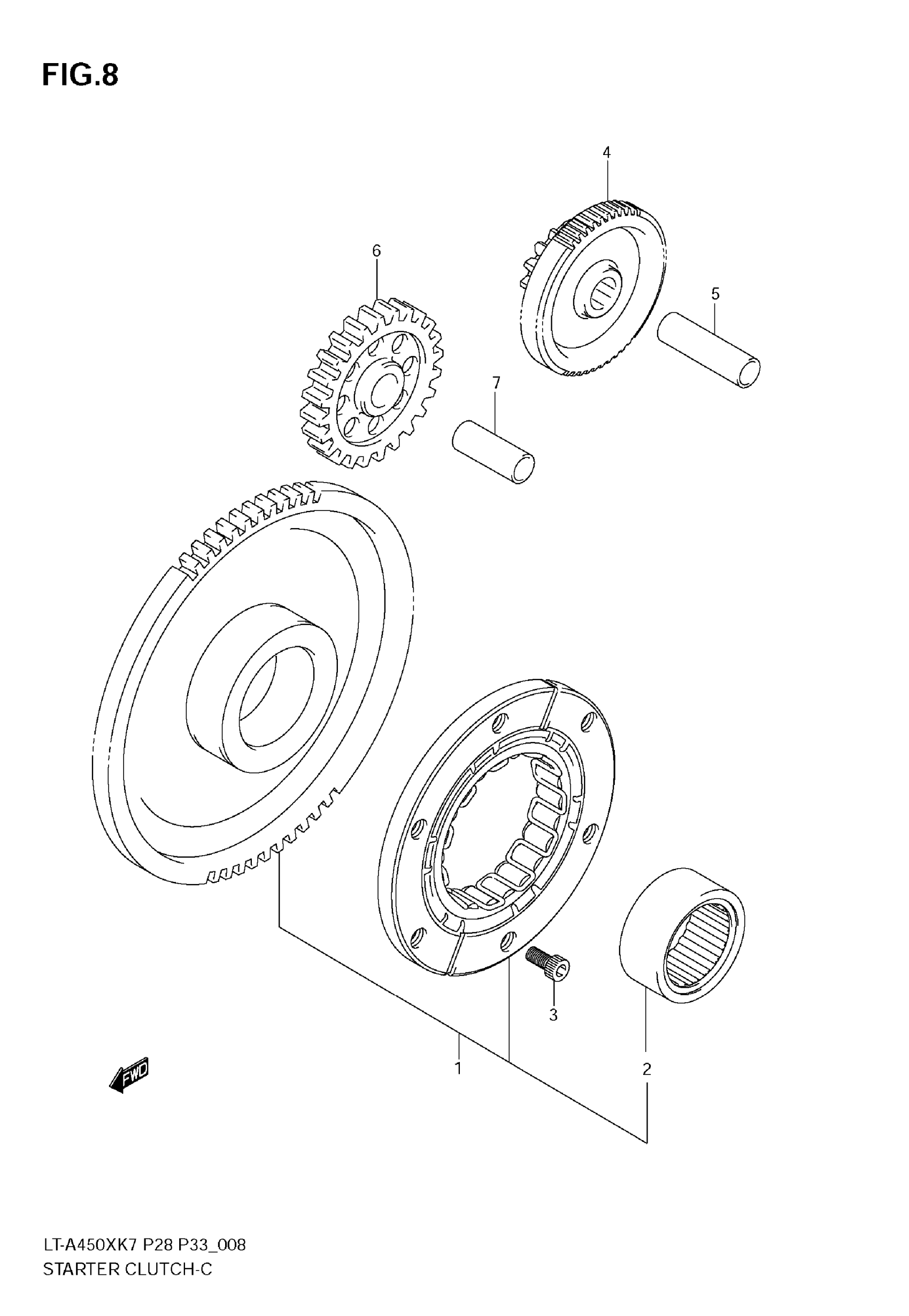

Find the part on the Starter Clutch diagram for your 2009 Suzuki LT-A450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-A450X Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH SET, STARTER | Includes Item(s) 2

12600-11810

1
Out of stock

2

BEARING (31X39X17.8)

09263-31009

1
Out of stock

3

BOLT, 8X20

09106-08095

6
Out of stock

4

GEAR, STARTER IDLE NO.1

12611-11H00

1
Out of stock

5

PIN

09206-12006

1
Out of stock

6

GEAR, STARTER IDLE NO.2

12612-31G00

1
Out of stock

7

PIN

09206-12007

1
Out of stock
