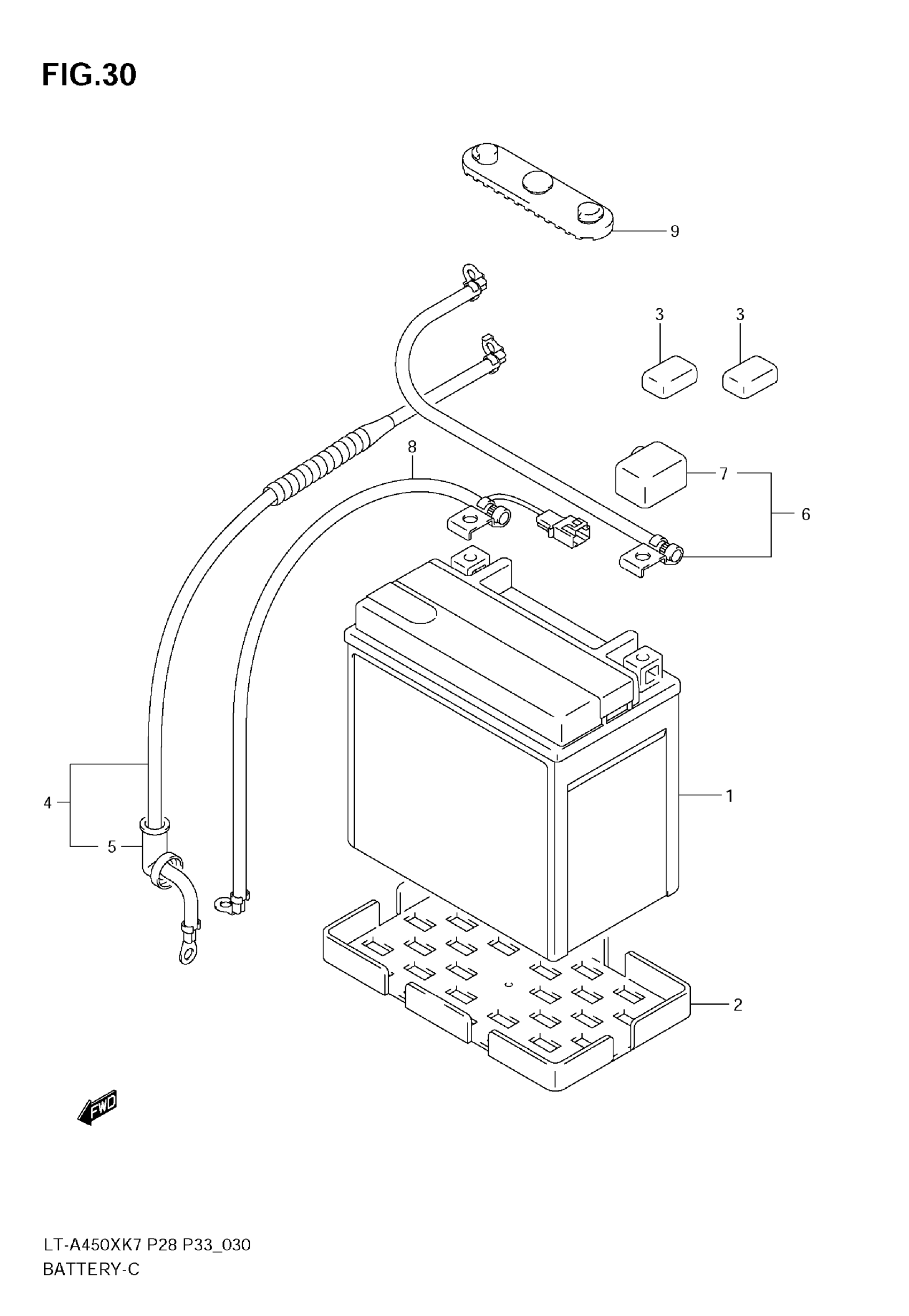

Suzuki LT-A450X (2009) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY | YTX14-B3,12V12AH This part replaces 33610-38F00.

33610-38F02

$131.02

2

PROTECTOR,BATTERY

33652-16G00

$13.50

3

PROTECTOR (20X40X20)

33652-38F20

$2.71

4

WIRE, STARTER MOTOR | Includes Item(s) 5

33810-11H00

$45.65

5

CAP, STARTER MOTOR LEAD

31861-48B10

$7.40

6

WIRE, BATTERY PLUS | Includes Item(s) 7

33820-31G00

$30.03

7

CAP, BATTERY PLUS TERM

33624-10D00

$7.12

8

WIRE, BATTERY MINUS

33860-31G00

$33.97

9

PROTECTOR, BATTERY

33652-07G00

$3.81
