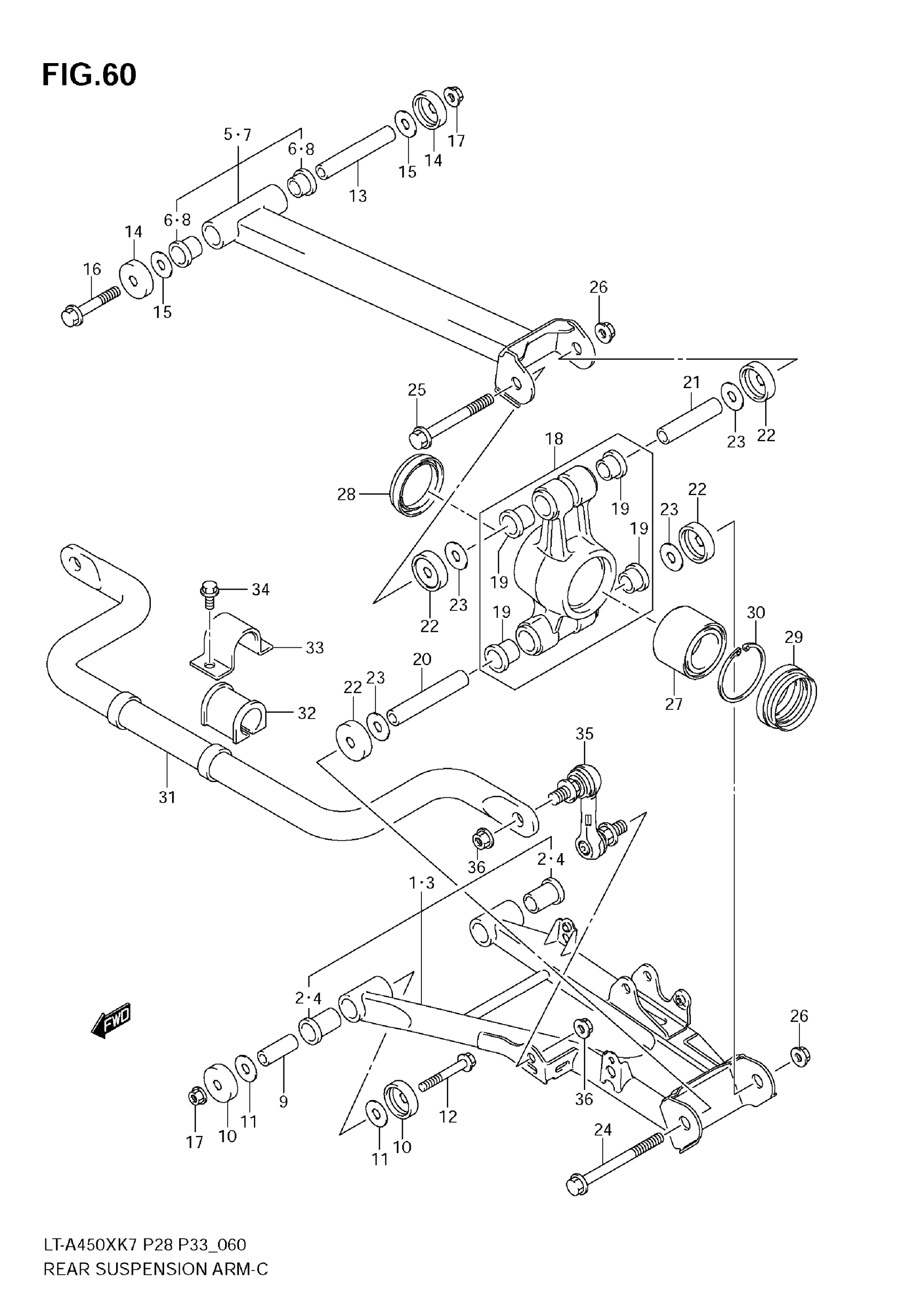

Suzuki LT-A450X (2009) REAR SUSPENSION ARM (MODEL K7) Diagram

#

Description
Price

1

ARM SET, RR SUSPENSION LOWER, R | Includes Item(s) 2

61510-31810

$165.63

2

BUSH, RR SPNSN ARM LOWER

61551-31G00

$28.70

3

ARM SET, RR SUSPENSION LOWER, L | Includes Item(s) 4

61520-31810

$113.67

4

BUSH, RR SPNSN ARM LOWER

61551-31G00

$28.70

5

ARM SET, RR SUSPENSION UP, RH | Includes Item(s) 6 This part replaces 61530-31820.

61530-31830

$249.18

6

BUSH, RR SPNSN ARM UPPER

51236-40B00

$17.46

7

ARM SET, RR SUSPENSION UP, LH | Includes Item(s) 8 This part replaces 61540-31820.

61540-31830

$244.46

8

BUSH, RR SPNSN ARM UPPER

51236-40B00

$17.46

9

SPACER, RR SPNSN ARM LOWER

61552-31G10

$20.82

10

SEAL, RR SPNSN ARM LOWER

51255-18900

$4.09

11

WASHER, RR SPNSN ARM LOWER

08211-10281

$2.06

12

BOLT, RR SPNSN ARM LOWER

09103-10392

$4.42

13

SPACER, RR SPNSN ARM UPPER

61554-31G00

$18.51

14

SEAL, RR SPNSN ARM UPPER

51255-31G00

$15.84

15

WASHER, RR SPNSN ARM UPPER

08211-10281

$2.06

16

BOLT, RR SPNSN ARM UPPER

09103-10388

$5.44

17

NUT, RR SPNSN ARM PIVOT

09159-10115

$3.21

18

KNUCKLE SET, RR SUSPENSION | Includes Item(s) 19

61600-11810

Unavailable

19

BUSH, RR KNUCKLE

51236-40B00

$17.46

20

SPACER, RR KNUCKLE LOWER

61554-31G00

$18.51

21

SPACER, RR KNUCKLE UPPER

61553-31G10

$23.48

22

SEAL, RR KNUCKLE DUST

51255-18900

$4.09

23

WASHER, RR KNUCKLE

08211-10281

$2.06

24

BOLT, RR KNUCKLE LOWER

09103-10388

$5.44

25

BOLT, RR KNUCKLE UPPER

09103-10387

$8.48

26

NUT, RR KNUCKLE

09159-10115

$3.21

27

BEARING, RR HUB This part replaces 43440-84F00.

43440-58J01

$68.54

28

SEAL, REAR HUB INNER DUST

61615-31G00

$19.19

29

SEAL, REAR HUB OUTER DUST

61616-31G00

$17.02

30

CLIP, HUB BEARING

08331-4162A

$3.56

31

BAR, RR STABILIZER

61651-31G10

$243.83

32

BUSH, RR STABILIZER This part replaces 61652-31G10.

61652-34K00

$6.61

33

PLATE, RR STABILIZER

42415-66D00

$11.83

34

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.32

35

JOINT, RR STABILIZER

61660-31G00

$74.20

36

NUT, RR STABILIZER JOIN

08319-3110B

$4.20
