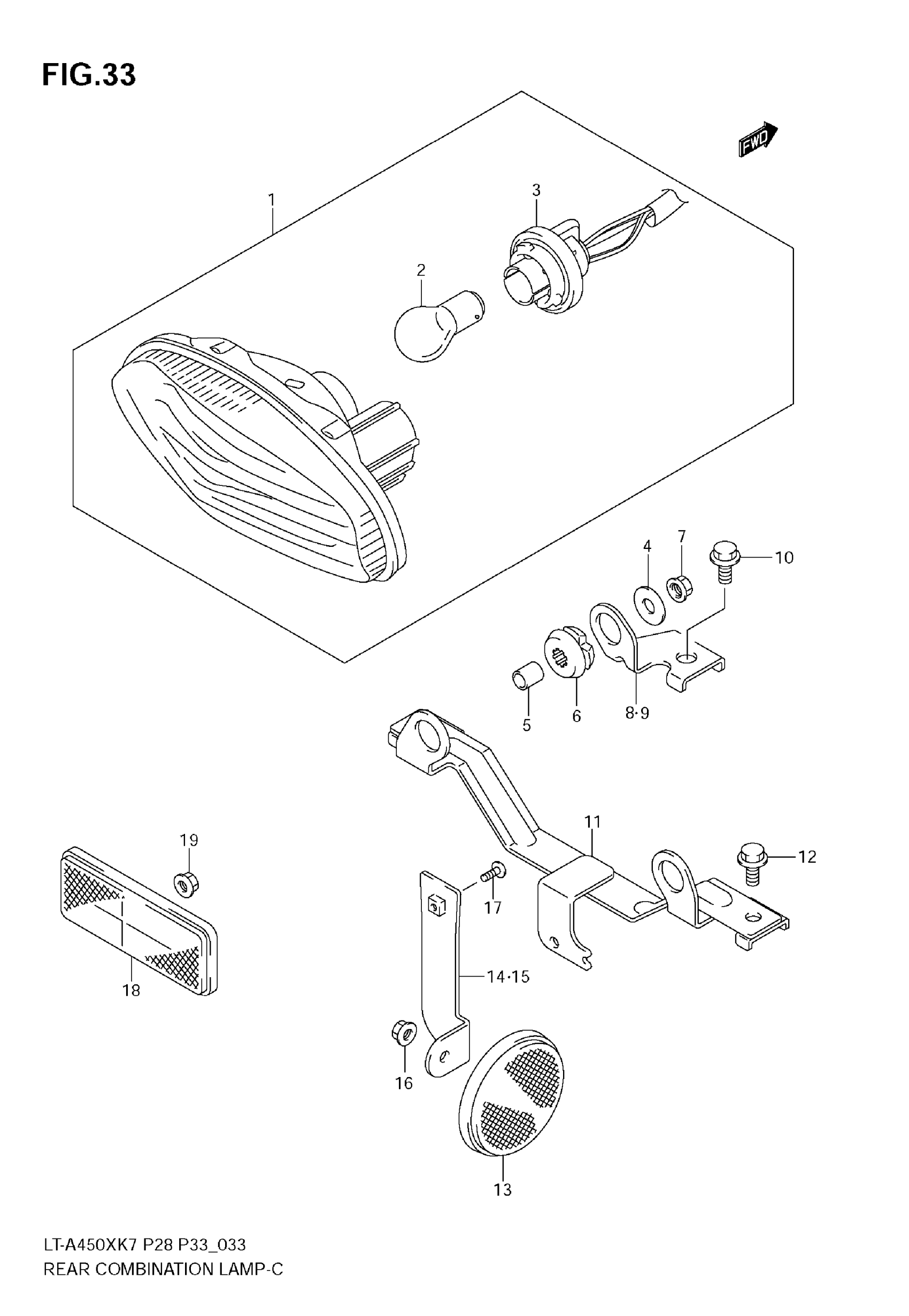

Suzuki LT-A450X (2009) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMB | Includes Item(s) 2 - 3

35710-31G00

$82.87

2

BULB (12V,21/5W)

09471-12128

$6.73

3

SOCKET & CORD

35718-03G30

$26.34

4

WASHER, REAR COMB LAMP | 6.5X20X1.2

09160-06077

$1.91

5

SPACER, REAR COMB | 6.5X9X10.5

09180-06264

$2.23

6

CUSHION, REAR COMB

09320-09018

$2.44

7

NUT, REAR COMB

08316-1006B

$2.50

8

BRACKET, REAR COMB LAMP, R | E33

35726-31G40

$8.93

9

BRACKET, REAR COMB LAMP, L | E33

35726-31G50

$8.93

10

BOLT, REAR COMB BRACKET | E33

01550-0612B

$2.39

11

BRACKET, REAR COMB | E28

35726-31G10

$28.27

12

BOLT, REAR COMB BRACKET | E28

01550-0612B

$2.39

13

REFLECTOR ASSY, RR SIDE | E28

35970-14A20

$15.10

14

BRACKET, REAR SIDE RR, R | E28

35975-31G00

Unavailable

15

BRACKET, REAR SIDE RR, L | E28

35976-31G00

Unavailable

16

NUT, RR SIDE RR BKT | E28

08316-1005B

$2.50

17

SCREW, RR SIDE RR BKT | E28

09125-05073

$2.38

18

REFLECTOR ASSY, REAR | E28

35970-07F01

$20.88

19

NUT, REAR RR | E28

08316-1005B

$2.50
