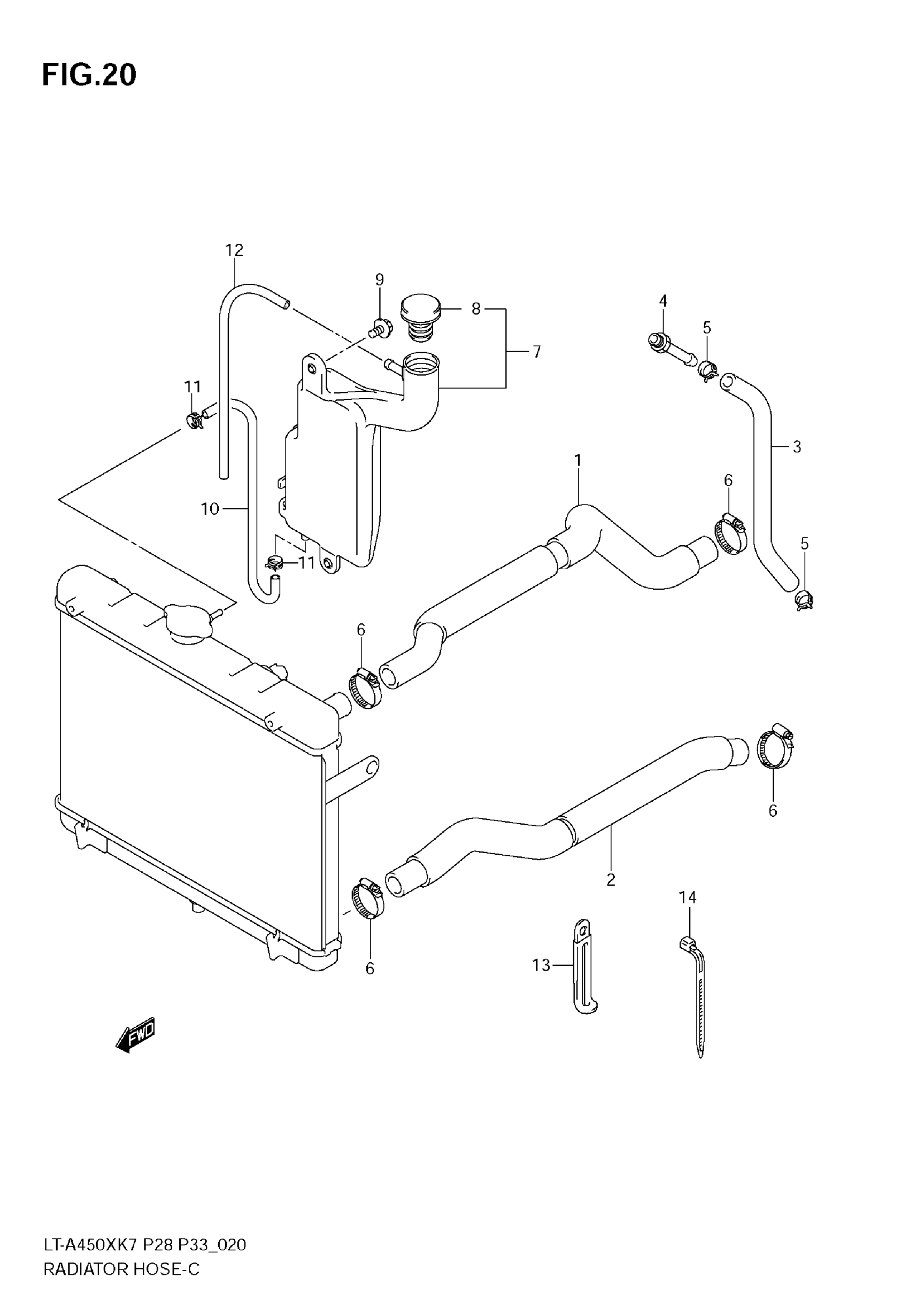

Suzuki LT-A450X (2009) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-31G00

$39.54

2

HOSE, RADIATOR OUTLET

17852-31G00

$46.52

3

HOSE, WATER BYPASS

17854-11H00

$31.70

4

UNION, BYPASS

09362-09011

$8.28

5

CLIP This part replaces 09401-12409.

09401-12414

$3.26

6

CLAMP

09402-32512

$12.85

7

TANK,RESERVOIR | Includes Item(s) 8 This part replaces 17910-31G00.

17911-34K00

$31.43

8

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

9

BOLT, 6X16

09116-06168

$2.50

10

HOSE, RSVR TANK INLET This part replaces 17982-18G00.

17900-44810

$12.79

11

CLIP

09401-08411

$1.78

12

HOSE, OVFL | L:600!360

09352-50901-600

$8.06

13

CLAMP

09404-06429

$1.83

14

CLAMP

09407-19401

$3.05
