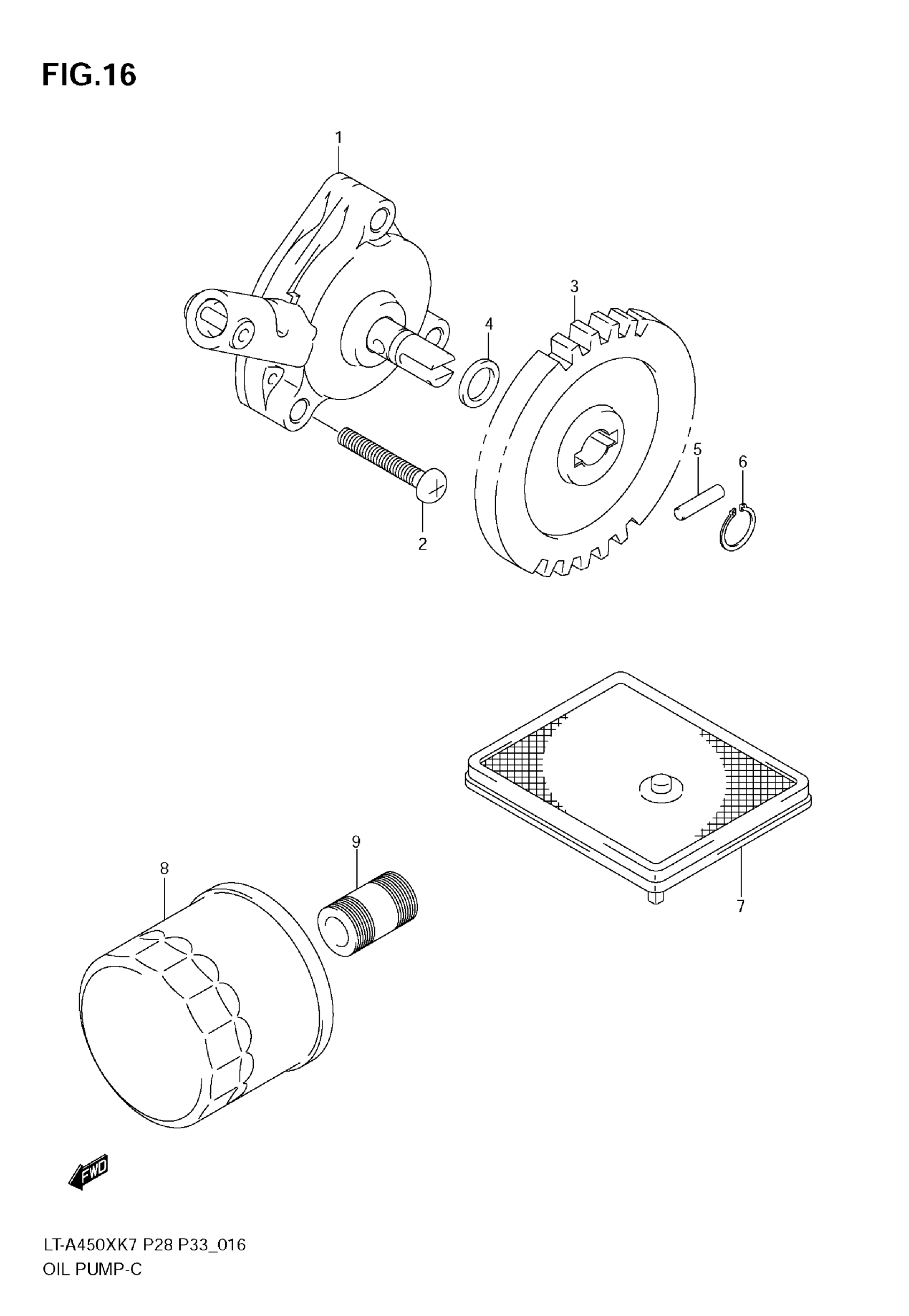

Suzuki LT-A450X (2009) OIL PUMP Diagram

#

Description

Price

1

PUMP ASSY, ENG OIL

16400-11H00

$182.33

2

SCREW (6X30)

09125-06119

Unavailable

3

SPROCKET, OIL PUMP DRIVE

16331-11H00

Unavailable

4

WASHER, 10X18X0.5

09181-10158

$1.97

5

PIN, 4X15.8

09261-04009

$1.56

6

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78

7

STRAINER,ENG OIL This part replaces 16520-32E00.

16520-32E01

$13.10

8

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

$13.10

9

UNION,OIL STAND

16591-06B01

$7.05
