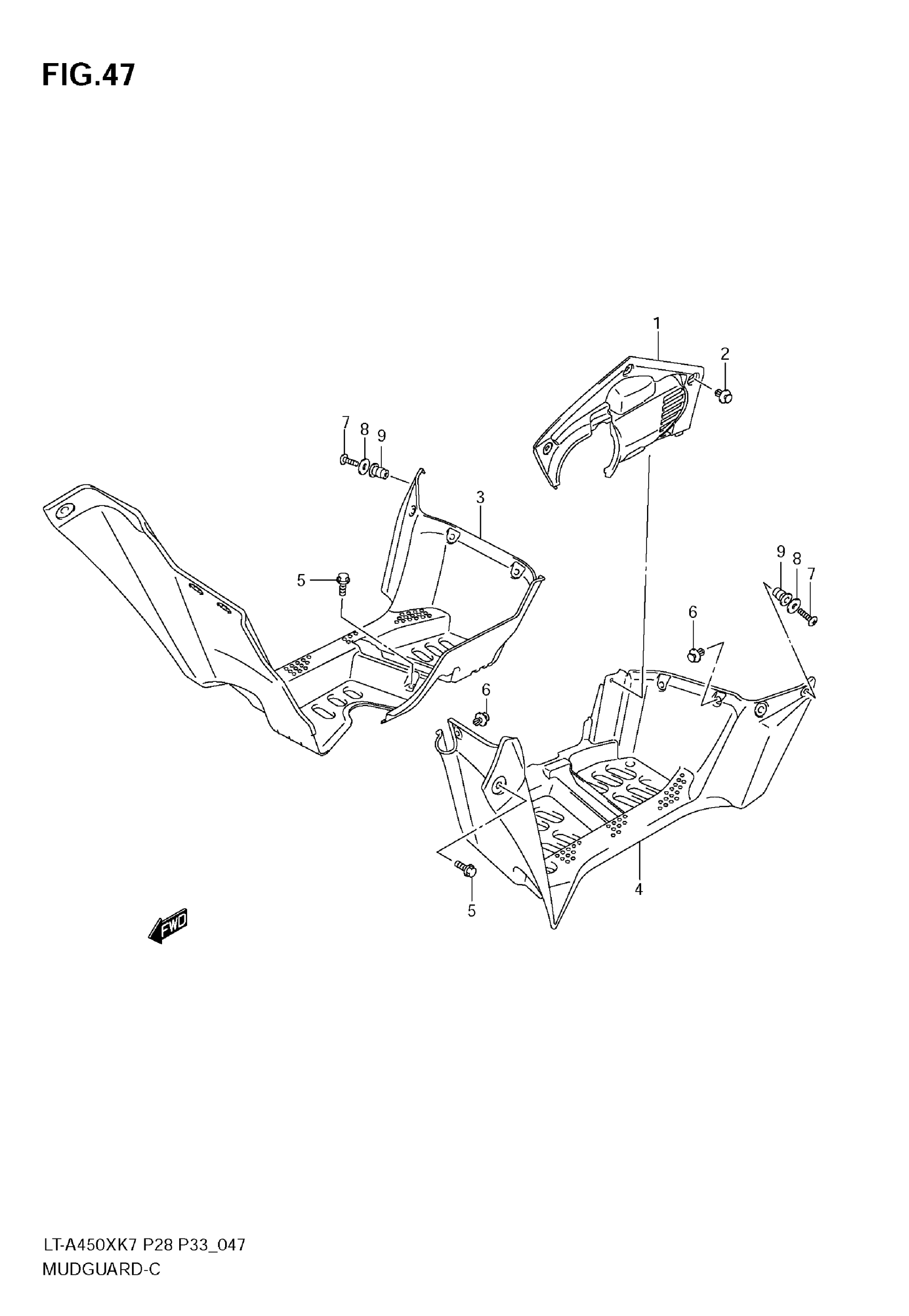

Suzuki LT-A450X (2009) MUDGUARD Diagram

LID (BLACK) This part replaces 63342-31G00-291.

63342-31G02-291

$102.07

CLIP

09409-08335

$2.47

MUDGUARD,FRONT This part replaces 63331-31G01-291.

63331-31G03-291

$47.34

MUDGUARD,FRONT This part replaces 63341-31G01-291.

63341-31G03-291

$158.41

BOLT, GUARD

09111-06088

$2.03

CLIP | MODEL K7/K8

09409-08335

$2.47

SCREW

02142-0520B

$1.78

WASHER

09160-05046

$1.92

NUT

09159-05019

$7.14
