2009 Suzuki LT-A450X Left Rear Wheel Diagram

← All diagrams

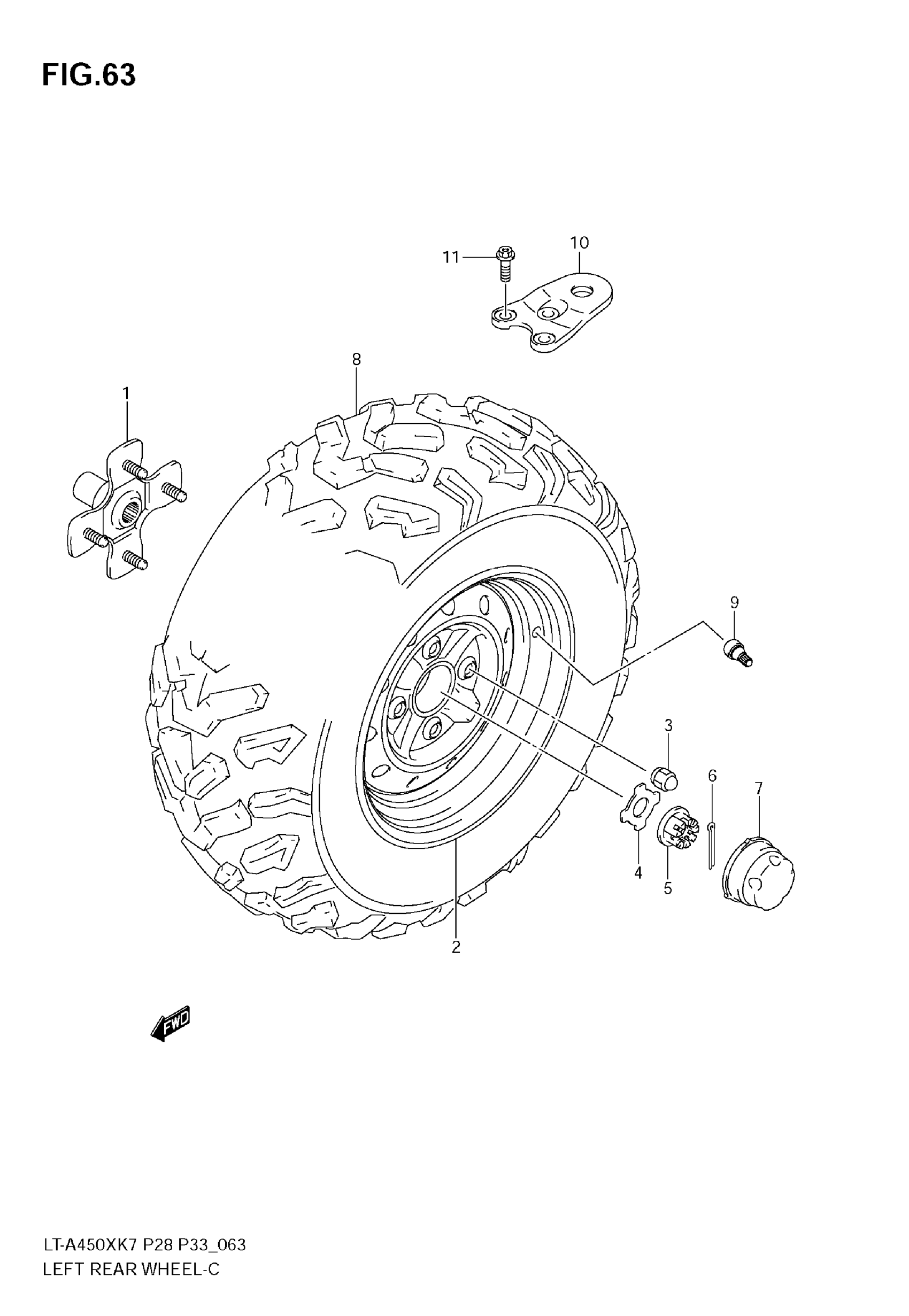

Find the part on the Left Rear Wheel diagram for your 2009 Suzuki LT-A450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-A450X Left Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL LH This part replaces 64110-31G01.

64110-31G10

1
Out of stock

2

RIM, REAR WHEEL (12X7.5AT) | LT-A450XK7/K8/K9

65310-11H00-291

1
Out of stock

2

RIM, REAR WHEEL (12X7.5AT) | LT-A450XZK8/ZK9 This part replaces 65310-11H00-YL8.

65310-11H00-291

1
Out of stock

3

NUT | MODEL K7

09159-10114

4

$5.02

In stock

3

NUT | MODEL K8/K9

09140-10021

4
Out of stock

4

WASHER

64723-03G00

1
Out of stock

5

NUT | MODEL K7/K8 This part replaces 09141-20005.

09141-20008

1
Out of stock

5

NUT, HUB | MODEL K9

09141-20008

1
Out of stock

6

COTTER PIN

04111-4035A

1
Out of stock

7

CAP,WHEEL CENTER

54725-09F01

1
Out of stock

8

TIRE, REAR (AT25X10-12) | CHANG SHIN This part replaces 65110-11H00.

65110-31G20

1
Out of stock

8

TIRE, REAR (AT25X10-12) | DUNLOP This part replaces 65110-31G10.

65110-31G20

1
Out of stock

9

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

10

PLATE, TRAILER TOW

95211-31G00

1

$43.30

In stock

11

BOLT

09103-10366

3

$2.95

In stock
