2009 Suzuki LT-A450X Handle Lever Diagram

← All diagrams

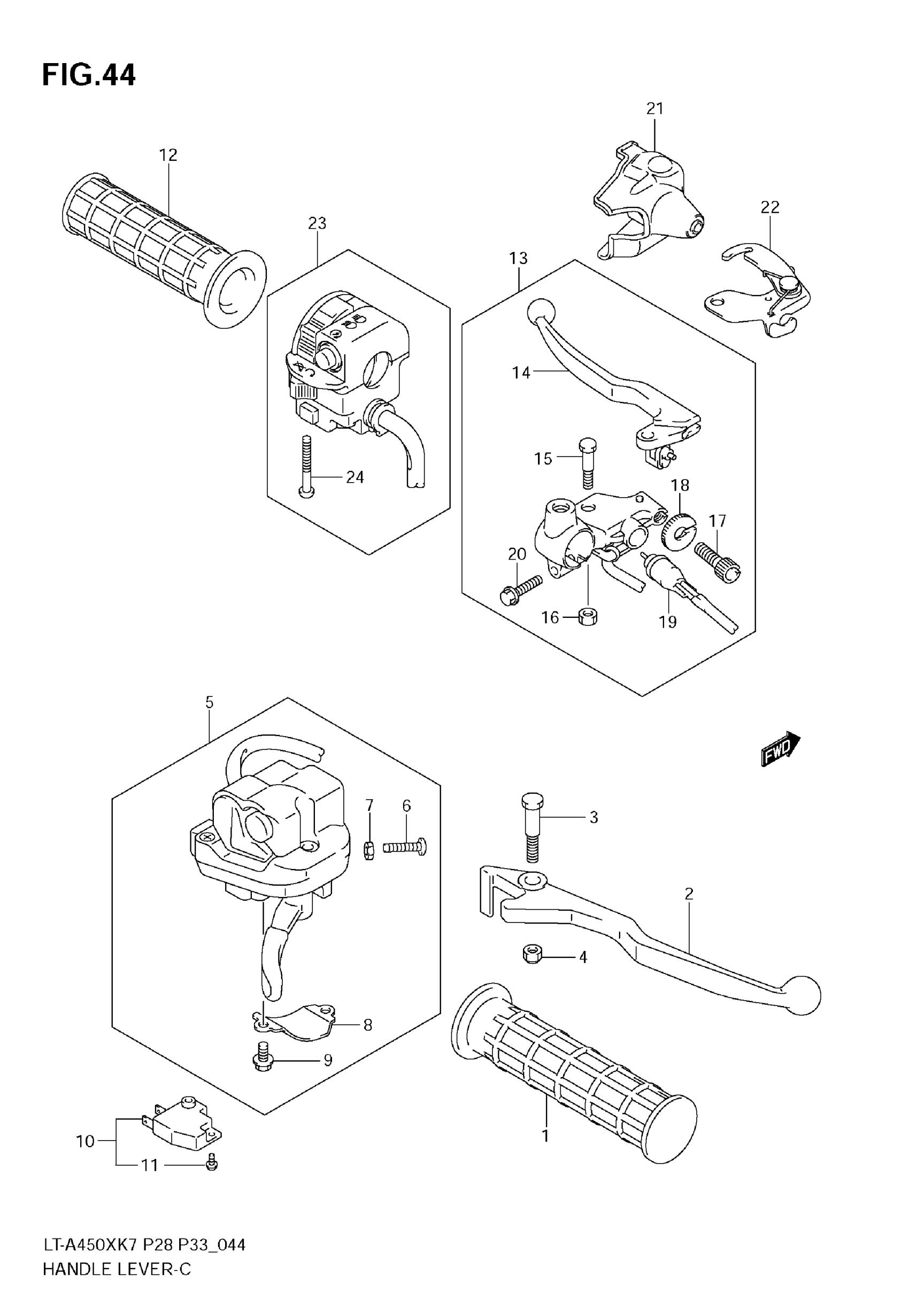

Find the part on the Handle Lever diagram for your 2009 Suzuki LT-A450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-A450X Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP

57211-21G10

1
Out of stock

2

LEVER,FRONT BRAKE

57421-39D20

1
Out of stock

3

BOLT,BRAKE LEVER PIVOT

57431-04F00

1
Out of stock

4

NUT,LEVER PIVOT

57433-09F00

1
Out of stock

5

CASE ASSY, THROTTLE | Includes Item(s) 6 - 9

57100-31G01

1
Out of stock

6

SCREW

02112-0520B

1
Out of stock

7

NUT This part replaces 08310-0005B.

08310-0005A

1
Out of stock

8

HOLDER

57126-07G00

1
Out of stock

9

BOLT

57127-07G00

2
Out of stock

10

SWITCH ASSY,FR BRAKE | Includes Item(s) 11 This part replaces 57460-17C11.

57460-14J02

1
Out of stock

11

SCREW

57465-17C00

1
Out of stock

12

GRIP

57211-21G10

1
Out of stock

13

LEVER ASSY,REAR | MODEL K7/K8 This part replaces 57500-38FC0.

57500-38FC1

1
Out of stock

13

LEVER SET,RR BR | MODEL K9; Includes Item(s) 14 - 20 This part replaces 57500-27H00.

57501-27H01

1
Out of stock

14

LEVER SET, BRAKE

57620-21821

1
Out of stock

15

.BOLT,PIVOT

57431-09F00

1
Out of stock

16

NUT

08319-2106B

1
Out of stock

17

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

1
Out of stock

18

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

1
Out of stock

19

SWITCH ASSY, STOP

57560-38FA1

1
Out of stock

20

..BOLT

01547-0620B

1
Out of stock

21

COVER,BRAKE LEVER This part replaces 57541-38FA0.

57541-38FA1

1
Out of stock

22

.STOPPER,BRAKE LEVER

57790-38FA0

1
Out of stock

23

SWITCH ASSY, LH | Includes Item(s) 24

37400-11H00

1
Out of stock

24

SCREW

02112-0535B

2
Out of stock
