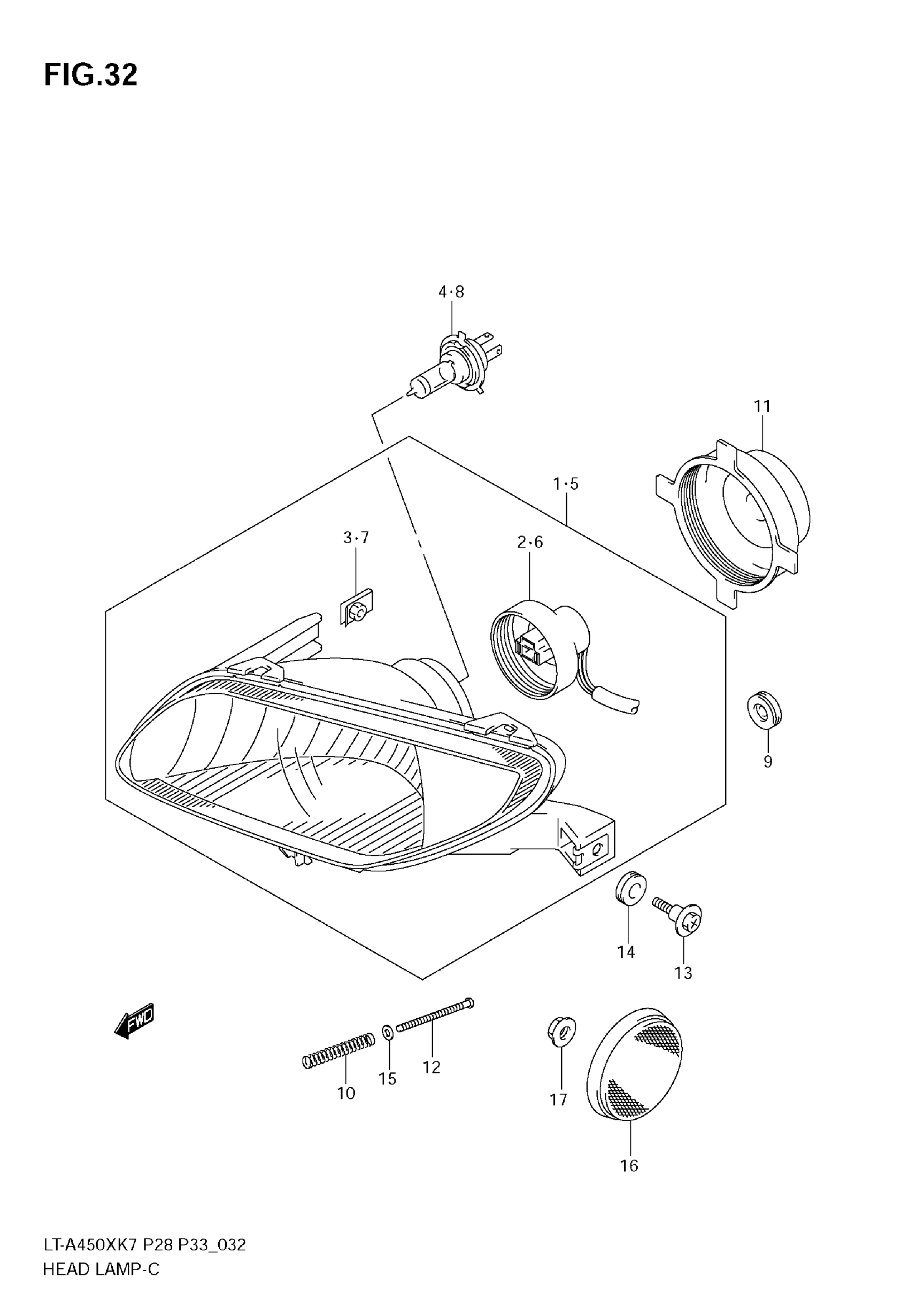

Suzuki LT-A450X (2009) HEADLAMP Diagram

HEADLAMP ASSY, R | Includes Item(s) 2 - 3

35100-31G90-999

Unavailable

CORD ASSY RH | MODEL K7,K8 This part replaces 35171-31GM0.

35171-31GM1

$30.10

CORD ASSY, R | MODEL K9

35171-31GM1

$30.10

NUT

35157-31G90

$5.30

BULB (12V35/35W)

09471-12101

$64.80

HEADLAMP ASSY LH | Includes Item(s) 6 - 7 This part replaces 35300-31G90-999.

35300-31G92-999

$102.70

CORD ASSY LH | MODEL K7,K8 This part replaces 35171-31GH0.

35171-31GH1

$38.48

CORD ASSY, L | MODEL K9

35171-31GH1

$38.48

NUT

35157-31G90

$5.30

BULB (12V35/35W)

09471-12101

$64.80

GROMMET, HEADLAMP HOUSING

09308-07011

$2.62

SPRING, HEADLAMP ADJUST

35154-31300

$3.70

COVER,HEADLAMP HOUSING

35174-31G00

$10.62

SCREW, HEADLAMP ADJUST | 4X50

09125-04031

$2.28

SCREW, HEADLAMP | 6X22.5

09139-06118

$3.25

CUSHION

09320-10501

$6.23

WASHER, HEADLAMP

08322-0104A

$1.91

REFLEX REFLECTOR ASSY, FR SID | E28 This part replaces 35950-14A10.

35950-14A11

$15.23

NUT, FRONT SIDE RR | E28

08316-1005B

$2.50
