Description

Price

1

HANDLE BAR This part replaces 56111-31G00.

56111-31G30

$73.96

2

CABLE ASSY, THROTTLE

58300-31G00

$45.37

3

GUIDE, THROTTLE CABLE

58626-31G00

$12.82

4

GUIDE, CABLE

58620-31G00

$28.27

5

CLAMP

09407-18402

$2.19

6

CABLE, PARKING BRAKE | MODEL K7/K8

58810-31G00

$67.10

6

CABLE, PARKING BRAKE | MODEL K9

58810-31G10

$85.15

7

SPRING

09440-08042

$2.92

8

PIN

09209-13006

$5.24

9

NUT

09150-06015

$3.56

10

GUIDE, PARKING CABLE

58620-31G10

$15.80

11

SCREW

03541-0616B

$2.59

12

CABLE ASSY, STARTER

58410-11H00

$35.53

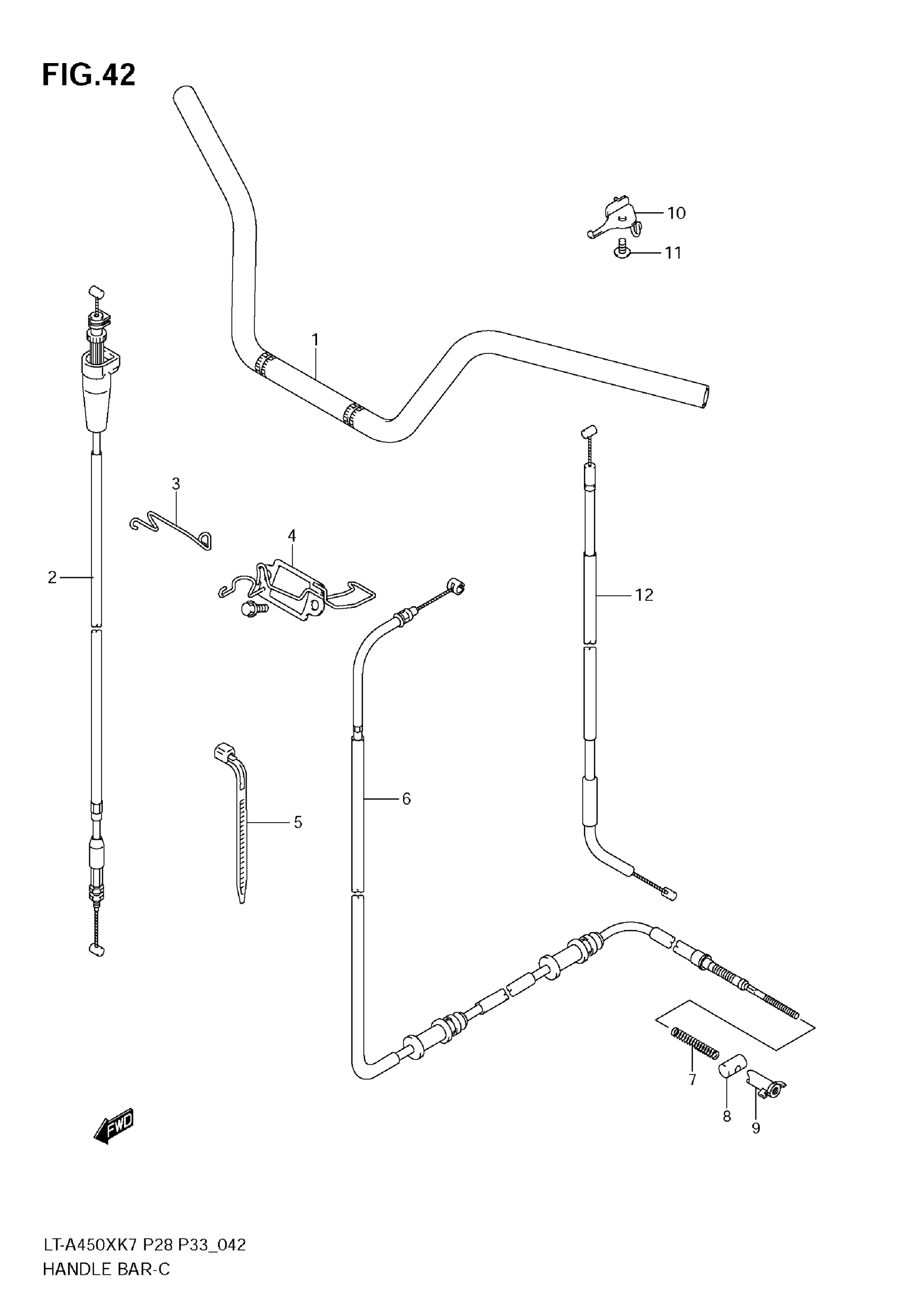

Suzuki LT-A450X (2009) HANDLE BAR Diagram
