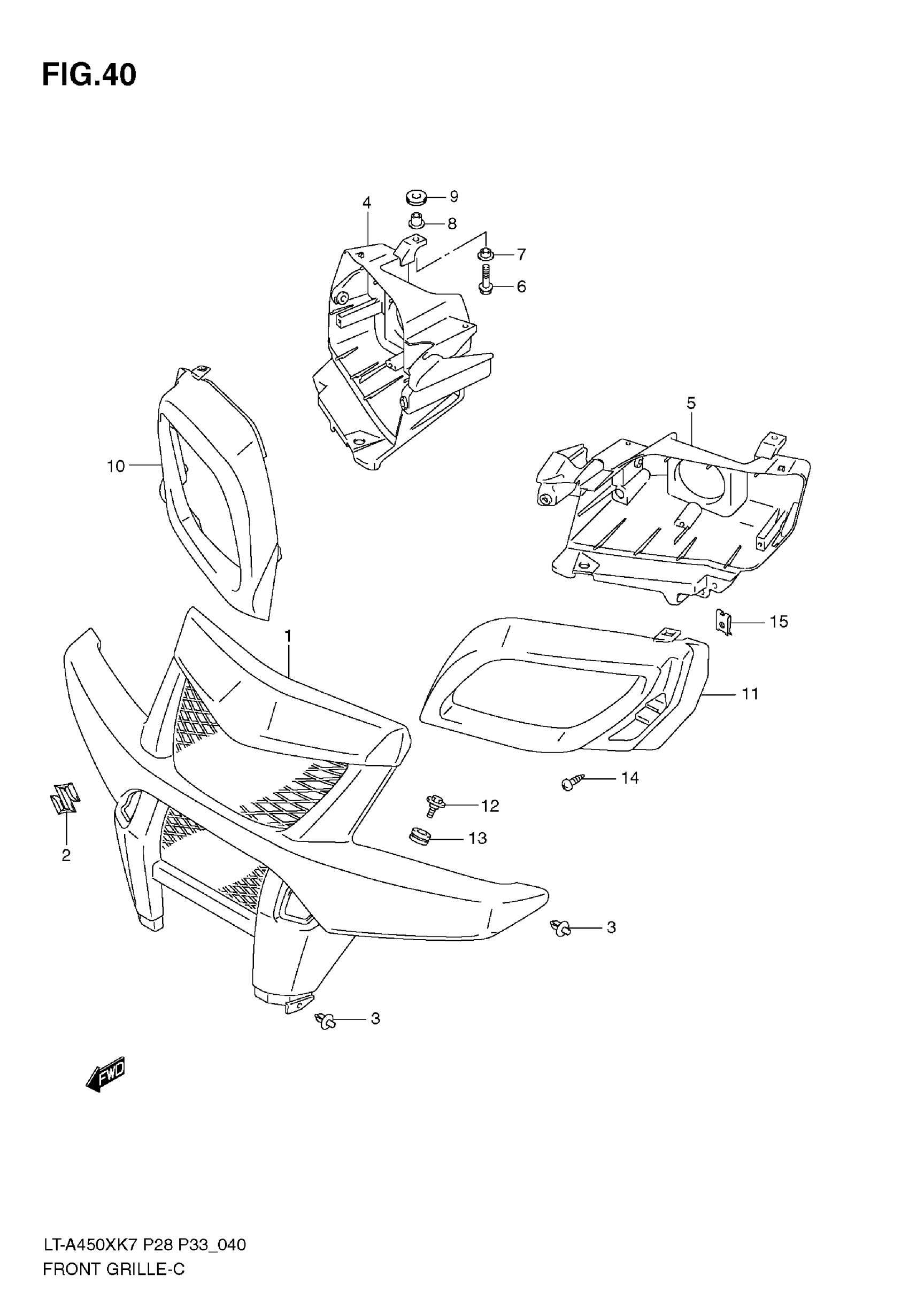

Suzuki LT-A450X (2009) FRONT GRILLE Diagram

#

Description
Price

1

GRILLE,FRONT This part replaces 53118-31G00-291.

53118-31G05-291

$169.30

2

EMBLEM, "S"

68151-03G40

$17.03

3

CLIP, FRONT

09409-08335

$2.47

4

HOUSING,FRONT L | E33 This part replaces 53281-31G00-291.

53281-31G04-291

$75.16

4

HOUSING,FRONT L | E28 This part replaces 53281-31G10-291.

53281-31G04-291

$75.16

5

HOUSING, FRONT LH (BLACK) | E33 This part replaces 53284-31G00-291.

53284-31G01-291

$29.06

5

HOUSING, FRONT LH (BLACK) | E28

53284-31G10-291

Unavailable

6

BOLT

01550-0630B

$2.85

7

WASHER

09169-06073

$3.42

8

SPACER

09169-06074

$7.95

9

CUSHION (11.5X32X12.2) | MODEL K7 This part replaces 09320-11019.

09320-11021

$4.17

9

CUSHION (11.5X32X12.2) | MODEL K8/K9

09320-11021

$4.17

10

COVER,FRONT LAM This part replaces 53282-31G00-291.

53282-31G03-291

$17.40

11

COVER,FRONT LAM This part replaces 53283-31G00-291.

53283-31G03-291

$30.75

12

BOLT

09139-06118

$3.25

13

CUSHION

09320-10501

$6.23

14

SCREW

03241-0516B

$1.74

15

NUT

09148-05038

$1.97
