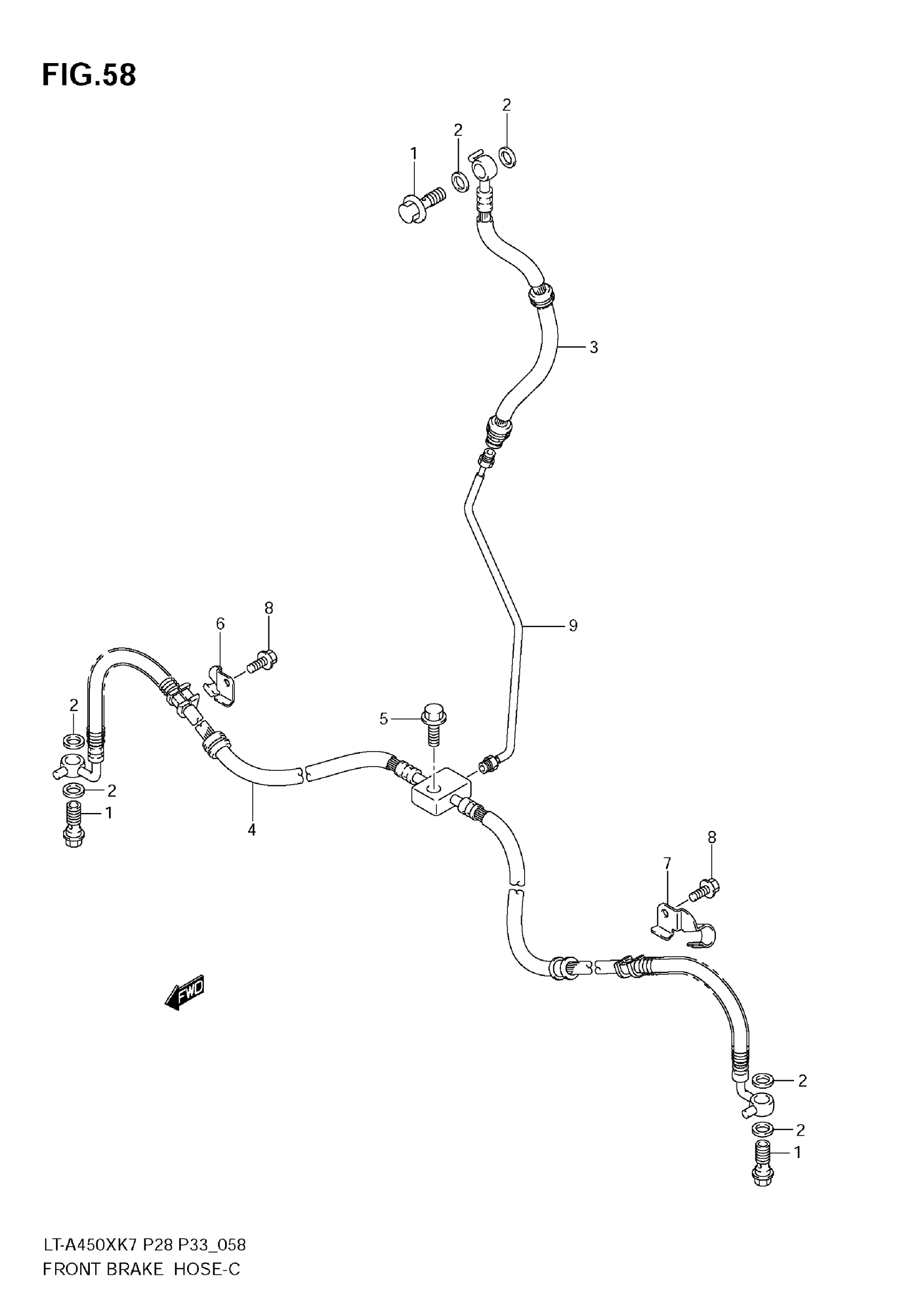

Suzuki LT-A450X (2009) FRONT BRAKE HOSE Diagram

#

Description

Price

1

BOLT, UNION

09360-10062

$6.43

2

WASHER (10X15X1.5)

09161-10009

$1.84

3

HOSE, FRONT BRAKE NO.1 This part replaces 59480-31G20.

59480-31G40

$30.08

4

HOSE,COMP,FR BR This part replaces 59240-31G20.

59240-31G52

$96.78

5

BOLT, FR BRAKE HOSE NO.2

01550-0625A

$1.97

6

CLAMP, HOSE NO.2 RH

59261-38F00

Unavailable

7

CLAMP, HOSE NO.2 LH

59271-38F00

$10.95

8

BOLT

01550-0616A

$1.97

9

PIPE, FRONT BRAKE

59250-31G00

$15.97
