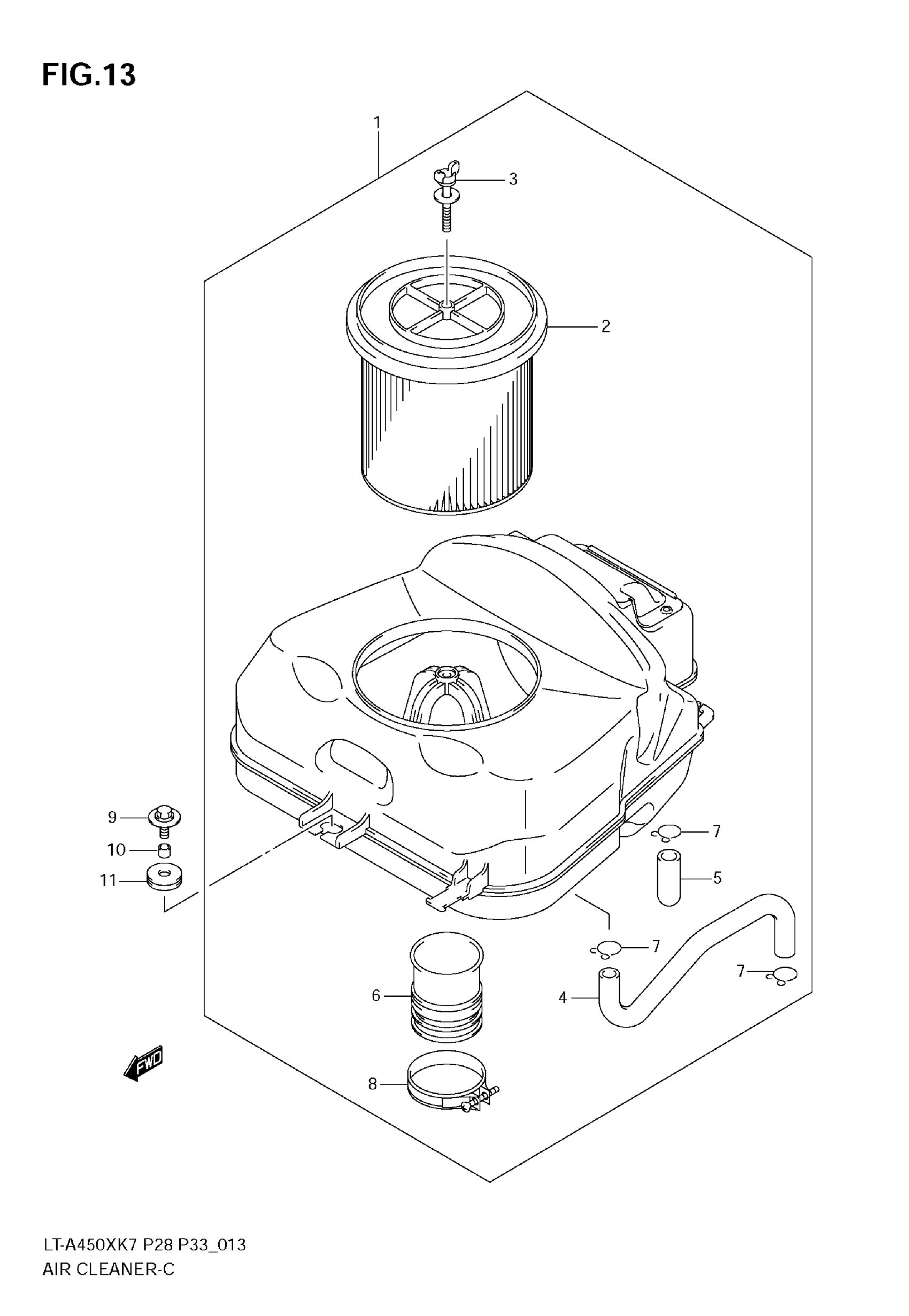

Suzuki LT-A450X (2009) AIR CLEANER Diagram

#

Description

Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 8 This part replaces 13700-11H00.

13700-11H21

$288.88

2

FILTER ASSY This part replaces 13780-31G10.

13780-31G30

$75.96

3

BOLT, WING

13831-31G00

$8.07

4

.TUBE, BREATHER This part replaces 13853-31G00.

13853-31G01

$20.78

5

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.48

6

TUBE, OUTLET

13881-11H00

Unavailable

7

CLIP

09401-14301

$2.35

8

CLAMP

09402-52208

$5.36

9

BOLT, 6X20

09116-06149

$3.78

10

SPACER, 6.1X8X7

09180-06247

$2.60

11

CUSHION

09320-08028

$3.04
