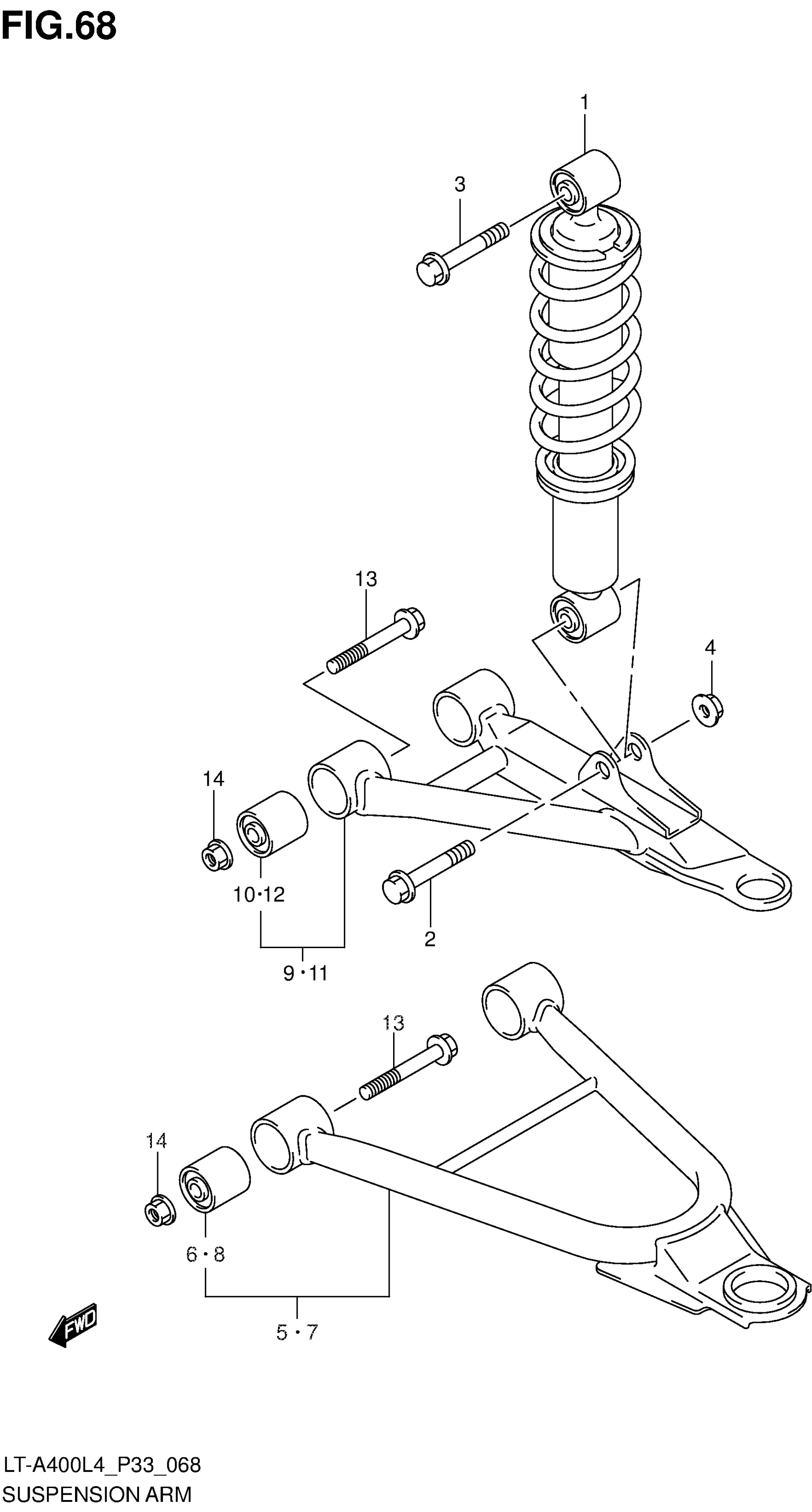

Suzuki LT-A400L4 (2014) SUSPENSION ARM (LT-A400ZL4 P33) Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK (BLACK)

52100-27H00-019

$166.05

2

BOLT (10X48) | LOWER

09103-10126

$4.50

3

BOLT (10X48) | UPPER

09103-10352

$5.88

4

NUT

08319-3110A

$2.73

5

ARM SET, SUSPENSION LOWER RH

52410-27810

Unavailable

6

BUSH

09319-10055

$21.02

7

ARM SET, SUSPENSION LOWER LH

52420-27810

$312.13

8

BUSH

09319-10055

$21.02

9

ARM SET,SUSPENSION UPPER RH

52430-27810

$298.63

10

BUSH

09319-10055

$21.02

11

ARM SET,SUSPENSION UPPER LH

52440-27810

$298.63

12

BUSH

09319-10055

$21.02

13

BOLT (10X60)

09103-10301

$5.98

14

NUT

09159-10115

$3.55
