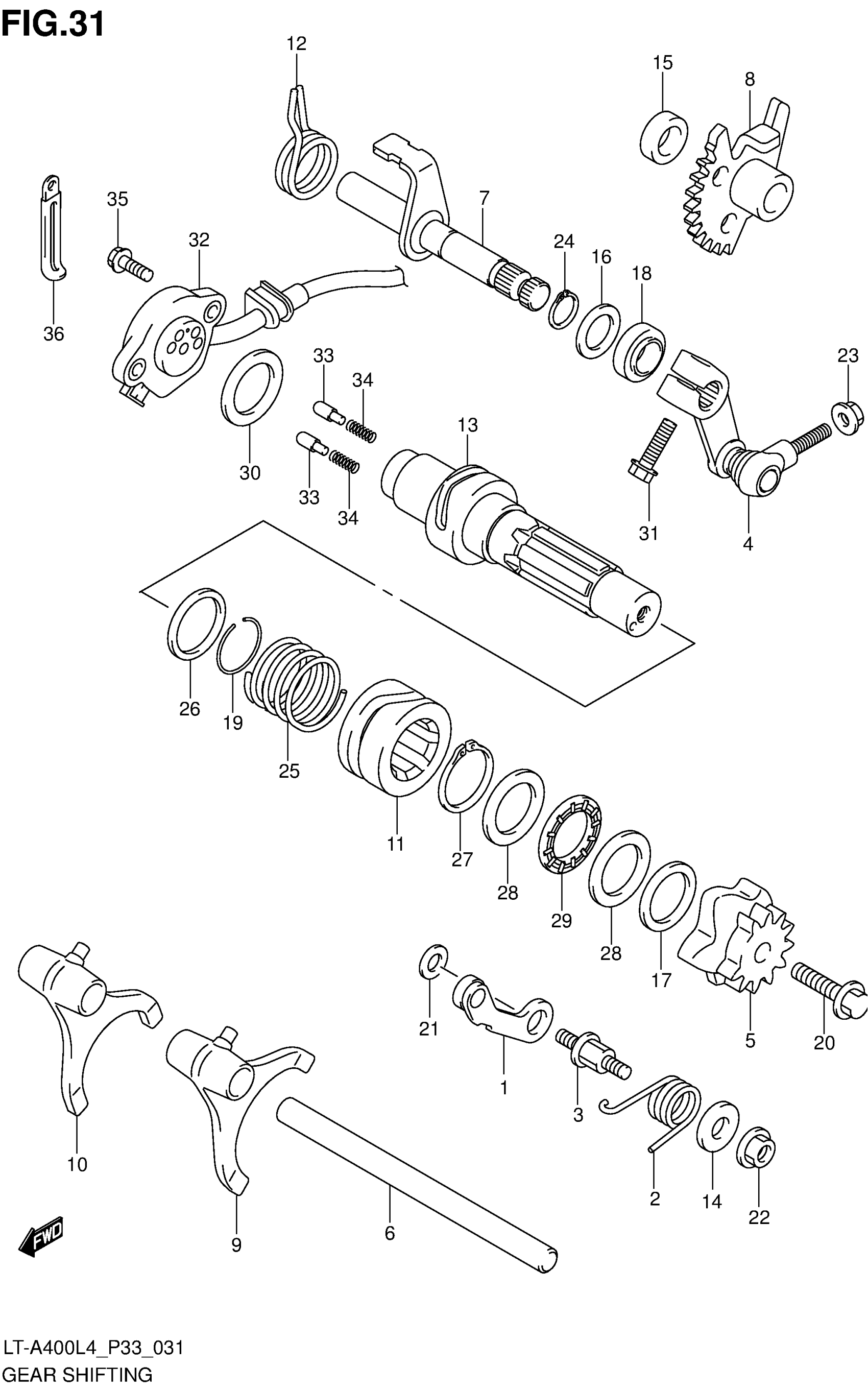

Suzuki LT-A400L4 (2014) GEAR SHIFTING Diagram

#

Description
Price

1

STOPPER, SHIFT CAM

25350-26D01

$16.22

2

SPRING, SHIFT CAM STOPPER

25355-38F00

$4.88

3

SUPPORT, SHIFT CAM STOPPER ARM

25356-12C00

$17.37

4

ARM, SELECT

25360-11H10

$80.02

5

PLATE, GEAR SHIFT CAM STOPPER

25381-38F10

Unavailable

6

SHAFT, SUB T/M GEAR SHIFT FORK

25411-18900

$23.07

7

SHAFT,T/M GEAR SHIFT This part replaces 25510-27H00.

25510-27H01

$41.13

8

GEAR, SUB T/M SHIFT

25540-27H00

Unavailable

9

FORK, SUB T/M GEAR SHIFT

29511-44D00

$90.23

10

FORK, GEAR SHIFT REVERSE

29511-44D00

$90.23

11

CAM, SUB T/M GEAR SHIFT

29611-27H00

Unavailable

12

SPRING, SHIFT ARM RETURN

29613-31G00

$7.05

13

SHAFT,SUB T/M GEAR SHIFT

29620-27H01

Unavailable

14

WASHER (6.5X16X2.3)

09160-06022

Unavailable

15

SPACER (12X22X8.0)

09180-12100

$5.35

16

SHIM (12X20X1)

09181-12167

$2.26

17

SHIM (20X28X0.5)

09181-20158

$3.03

18

OIL SEAL (12X22X9)

09285-12006

$6.32

19

CIRCLIP

09380-25012

$2.47

20

BOLT

01550-0625A

$1.97

21

WASHER

08211-06141

$1.59

22

NUT

08316-1006A

$2.19

23

NUT

08310-0006A

$1.84

24

CIRCLIP

08331-3112A

$1.78

25

SPRING, SUB T/M SHIFT CAM

29612-38F00

Unavailable

26

SHIM (25X32X1)

09181-25139

$3.32

27

CIRCLIP

08331-31259

$2.48

28

SHIM (20X34X1)

09181-20251

$2.79

29

BEARING (20X35X2)

09263-20014

Unavailable

30

SHIM (25X34X1)

09181-25167

$3.12

31

BOLT

01550-0620A

$1.97

32

BASE ASSY,GEAR SHIFT TERM

37720-27H00

$142.35

33

PIN (5X15.5)

09209-05011

$2.20

34

SPRING

09440-04010

$1.54

35

BOLT

07120-0516A

$2.28

36

CLAMP (L:45)

09404-06429

$1.83
