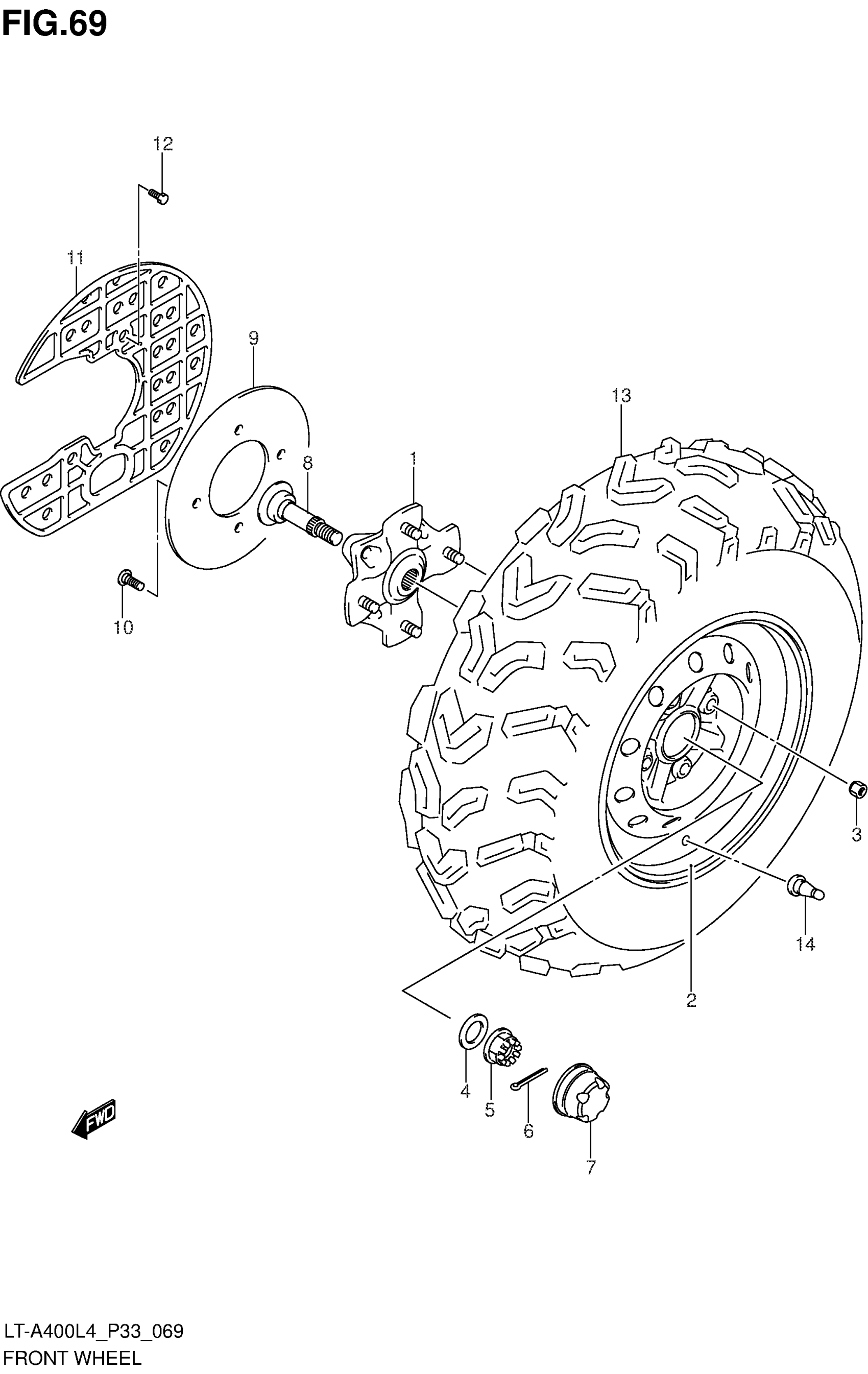

Suzuki LT-A400L4 (2014) FRONT WHEEL (LT-A400L4 P33) Diagram

#

Description
Price

1

HUB,FRONT WHEEL This part replaces 54110-27H00.

54110-27H10

$90.99

2

RIM, FRONT WHEEL (12X6.0AT) (BLACK)

55310-38F30-291

$169.20

3

NUT

09140-10021

$2.01

4

WASHER

09164-18004

$3.38

5

NUT

09141-18010

$9.25

6

COTTER PIN

04111-4035A

$1.37

7

CAP,WHEEL CENTER

54725-09F01

$9.11

8

AXLE, FRONT

54711-38F00

$121.48

9

DISC,FRONT BRAKE

59211-38F20

$42.79

10

BOLT (8X21)

09106-08160

$3.22

11

COVER,FRONT DISC

59231-27H00

$41.35

12

SCREW (6X16)

09139-06158

$4.42

13

TIRE,FRONT (AT25X8-12) This part replaces 55110-38FC0.

55110-31G30

$331.18

14

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10
