2021 Suzuki LT-A400FZM1 Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 2021 Suzuki LT-A400FZM1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

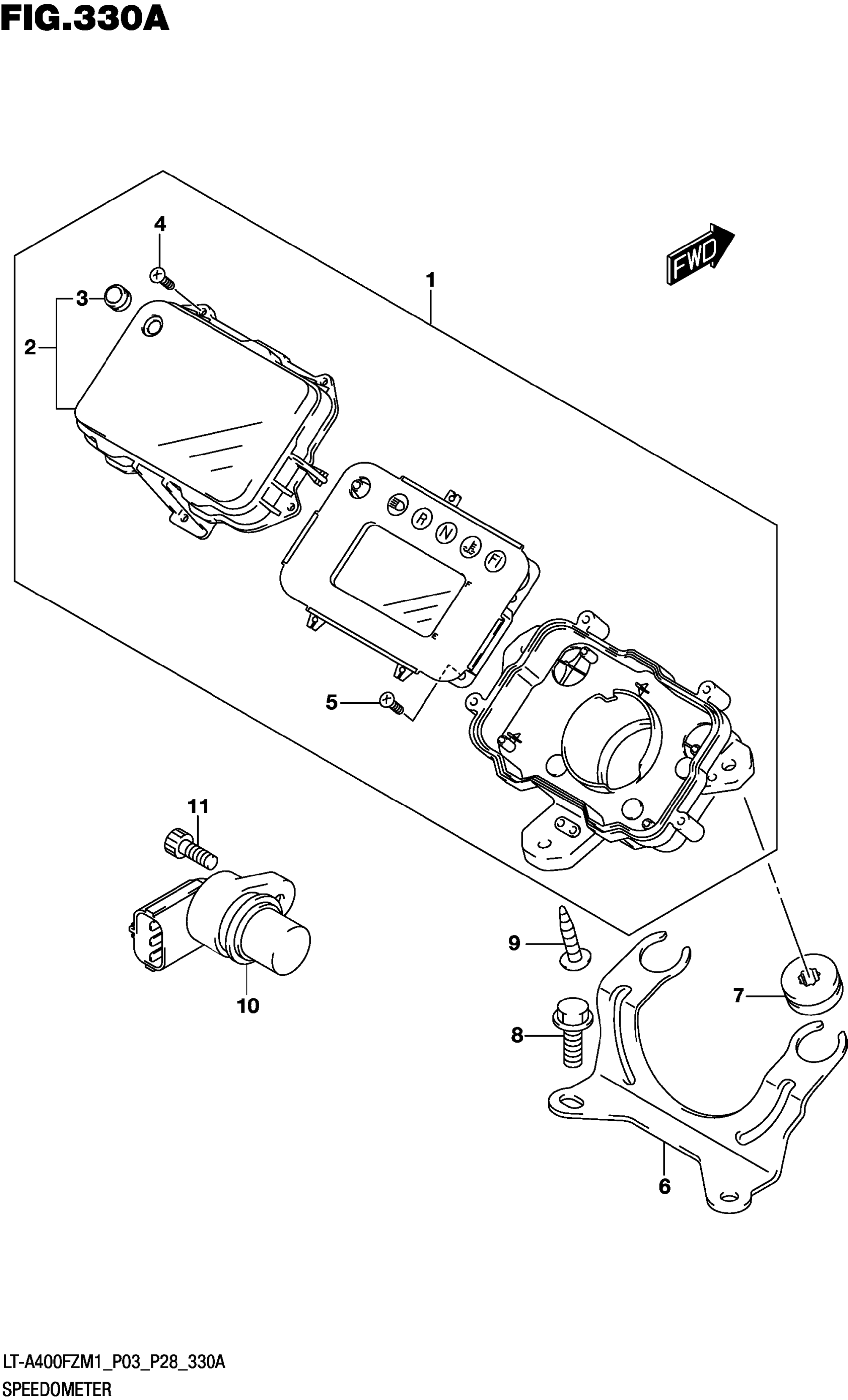

2021 Suzuki LT-A400FZM1 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

34100-27HA0

1
Out of stock

2

.CASE,UPPER

34150-27HA0

1
Out of stock

3

..SWITCH,RUBBER

34124-03GE0

1
Out of stock

4

.SCREW (3X12)

34183-09F00

5
Out of stock

5

.SCREW (3X12)

34184-27EE0

4
Out of stock

6

BRACKET,SPEEDOMETER

34162-27H00

1
Out of stock

7

CUSHION,SPEEDOMETER

34955-13E01

2
Out of stock

8

BOLT

01550-0616A

2
Out of stock

9

SCREW

03541-0516A

3
Out of stock

10

SENSOR,SPEED

34990-27H00

1
Out of stock

11

BOLT This part replaces 07130-0616A.

07130-0616B

1
Out of stock
