2021 Suzuki LT-A400FZM1 Battery Diagram

← All diagrams

Find the part on the Battery diagram for your 2021 Suzuki LT-A400FZM1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

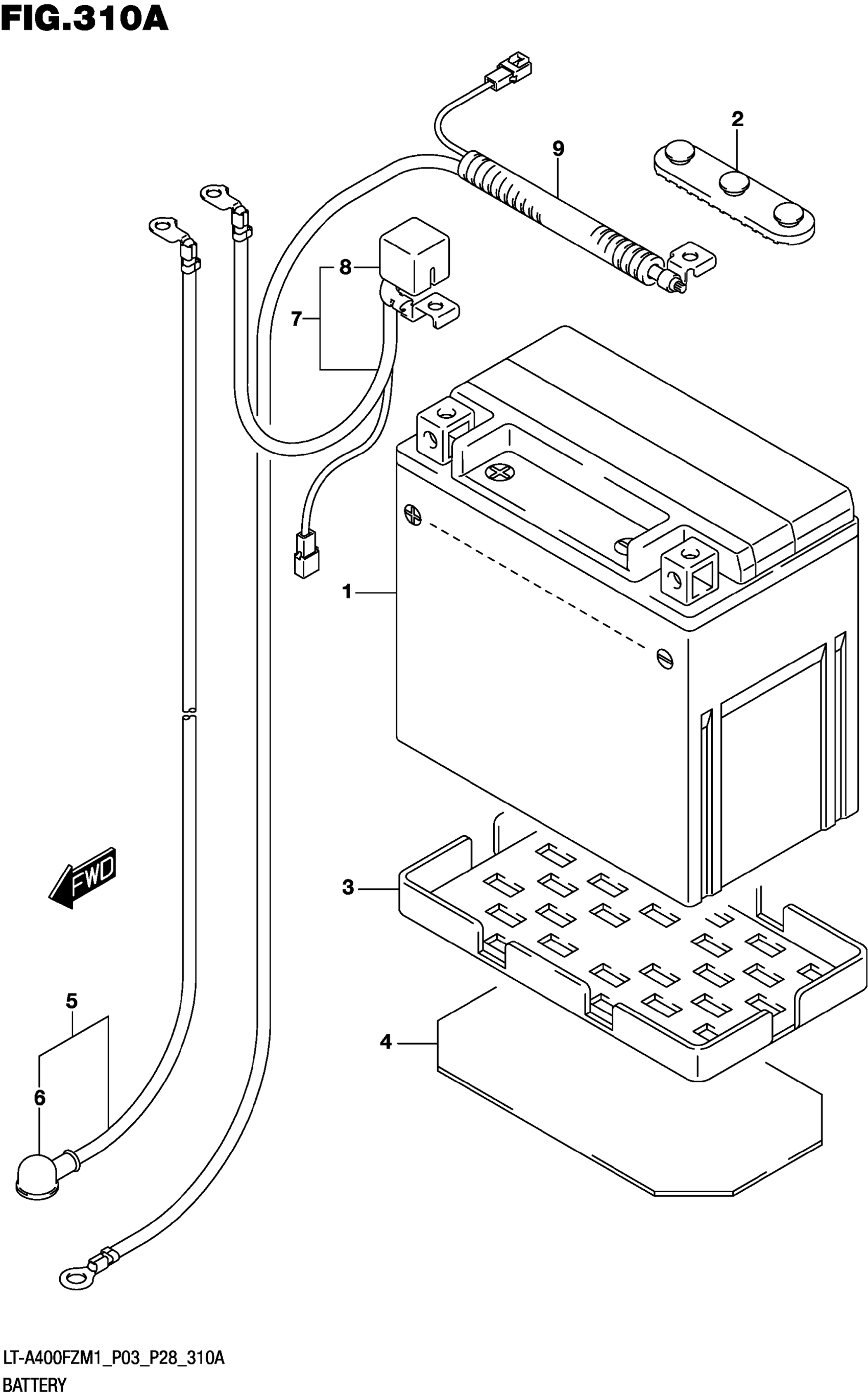

2021 Suzuki LT-A400FZM1 Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY

33610-38F02

1
Out of stock

2

PROTECTOR,BATTERY

33652-07G00

1
Out of stock

3

PROTECTOR,BATTERY

33652-16G00

1
Out of stock

4

PROTECTOR,BATTERY (150X85X2.0

33652-27H00

1
Out of stock

5

WIRE,STARTER MOTOR LEAD

33810-27H21

1
Out of stock

6

.CAP,STARTER MOTOR

33624-27H00

1
Out of stock

7

WIRE,BATTERY PLUS LEAD

33820-27H21

1
Out of stock

8

.CAP,BATTERY PLUS

33624-16E00

1
Out of stock

9

WIRE, BATTERY MINUS LEAD

33860-27H10

1
Out of stock
