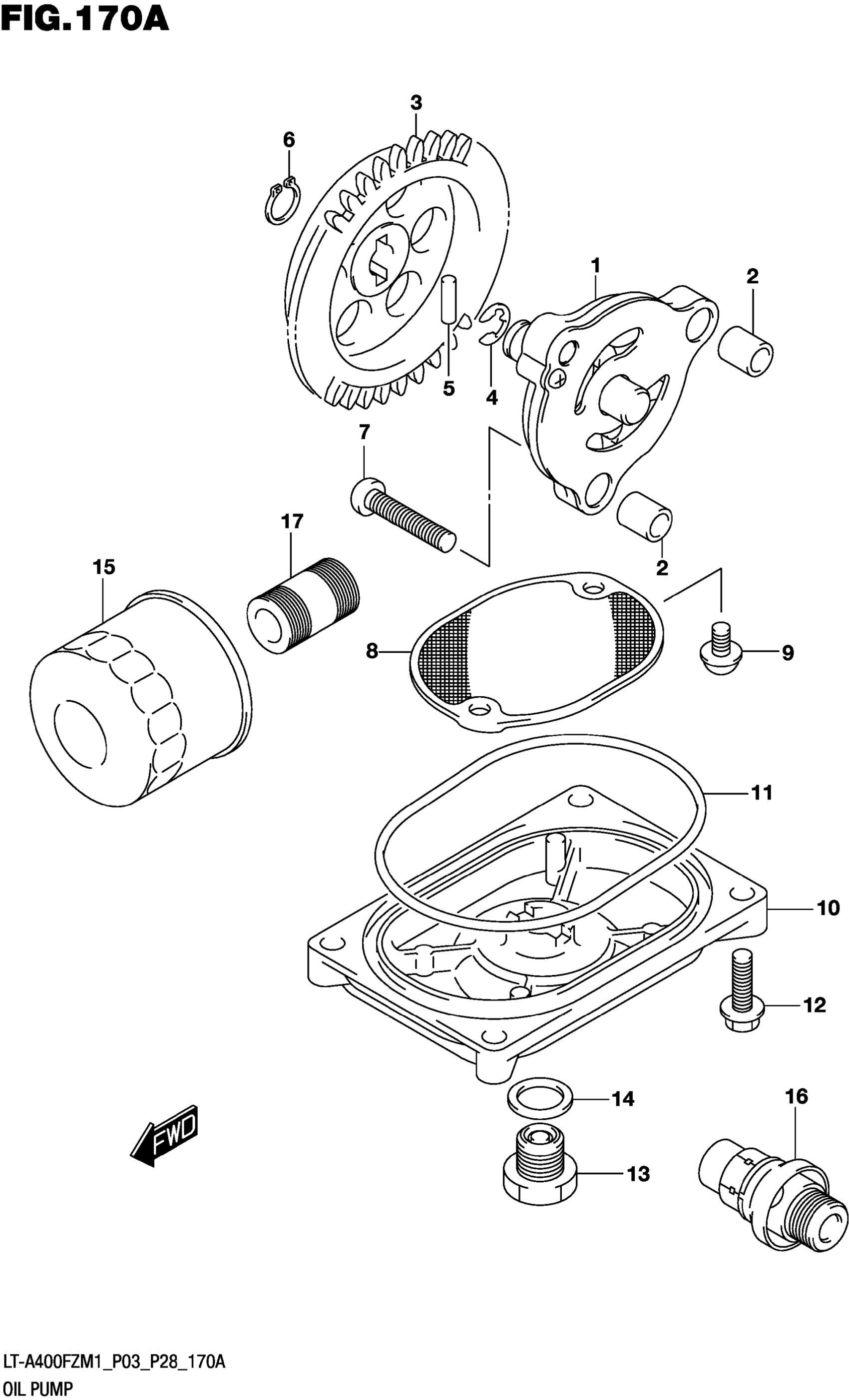

Suzuki LT-A400FZM1 (2021) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY,ENGINE OIL

16400-27H00

$164.72

2

PIN

04211-09109

$1.65

3

GEAR,OIL PUMP DRIVEN (NT:35)

16331-14D02

$48.37

4

SHIM (10X18X0.5)

09181-10158

$1.97

5

PIN (4X15.8)

09261-04009

$1.56

6

CIRCLIP

08331-31109

$1.78

7

SCREW

02112-0625A

$1.80

8

STRAINER,ENGINE OIL

16520-27H00

$9.07

9

SCREW

02112-7512A

$2.42

10

CAP,OIL STRAINER

16523-24501

$26.91

11

.O RING (D:2.4,ID:82)

16528-24500

$10.93

12

BOLT

01547-0625A

$2.01

13

PLUG (MAGNETO)

09247-14002

$5.24

14

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

15

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

$13.10

16

VALVE ASSY,OIL RELIEF (6K)

16440-27A01

$66.40

17

UNION,OIL STAND

16591-06B01

$7.05
