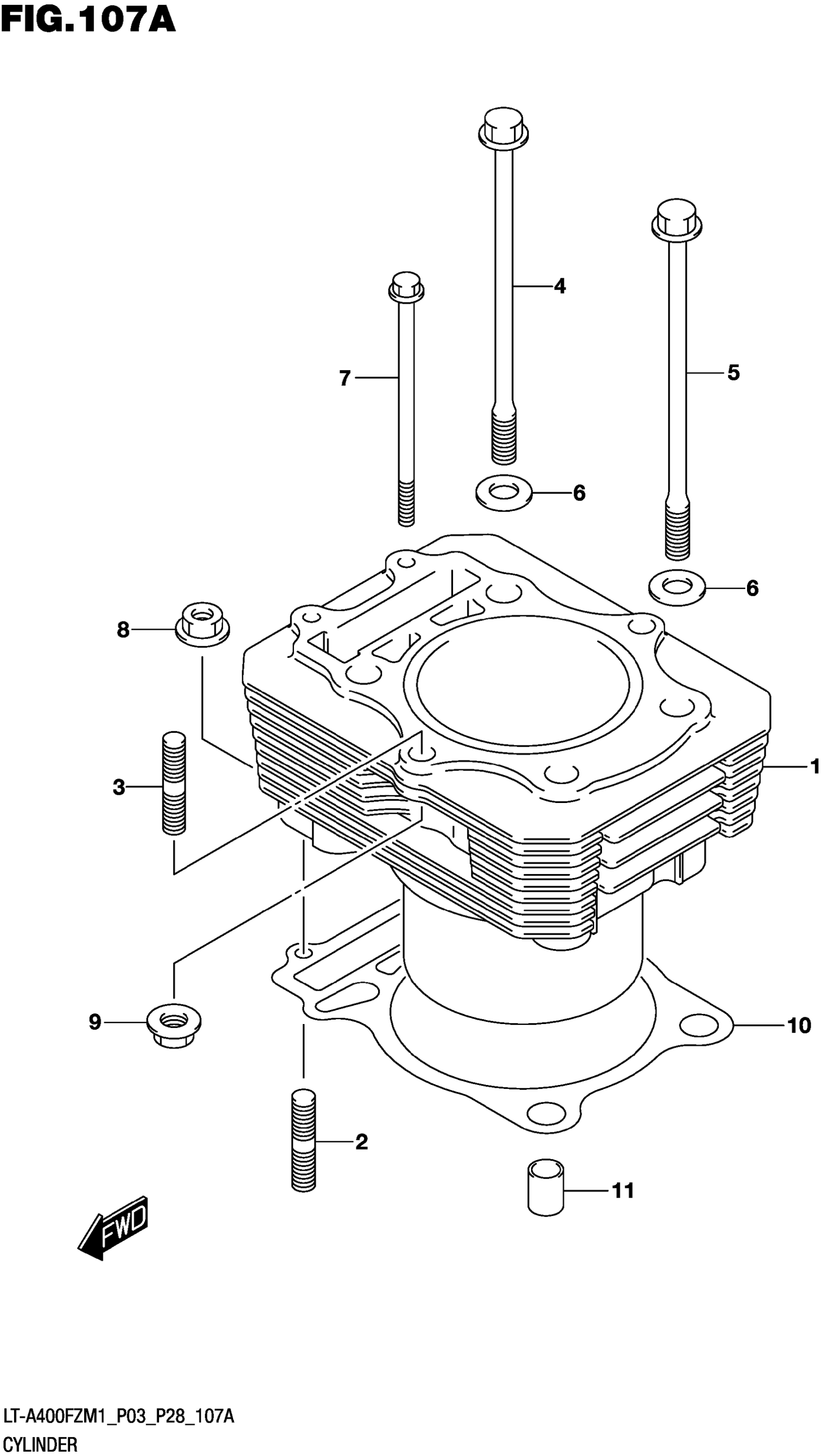

Suzuki LT-A400FZM1 (2021) CYLINDER Diagram

#

Description
Price

1

CYLINDER

11210-27H00-0F0

$695.42

2

BOLT,STUD

01421-0620A

$1.91

3

BOLT,STUD (L:30)

09108-08142

$3.18

4

BOLT (10X180)

09103-10178

$14.74

5

BOLT (10X170)

09103-10321

$14.85

6

WASHER (10.5X22X2.3)

09160-10039

$2.26

7

BOLT (6X115)

09103-06167

$4.26

8

NUT (6X12)

08316-1006A

$2.19

9

NUT

08316-1008A

$2.45

10

.GASKET,CYLINDER

11241-38F00

$13.30

11

PIN (10.4X13X18)

04211-13189

$2.19
