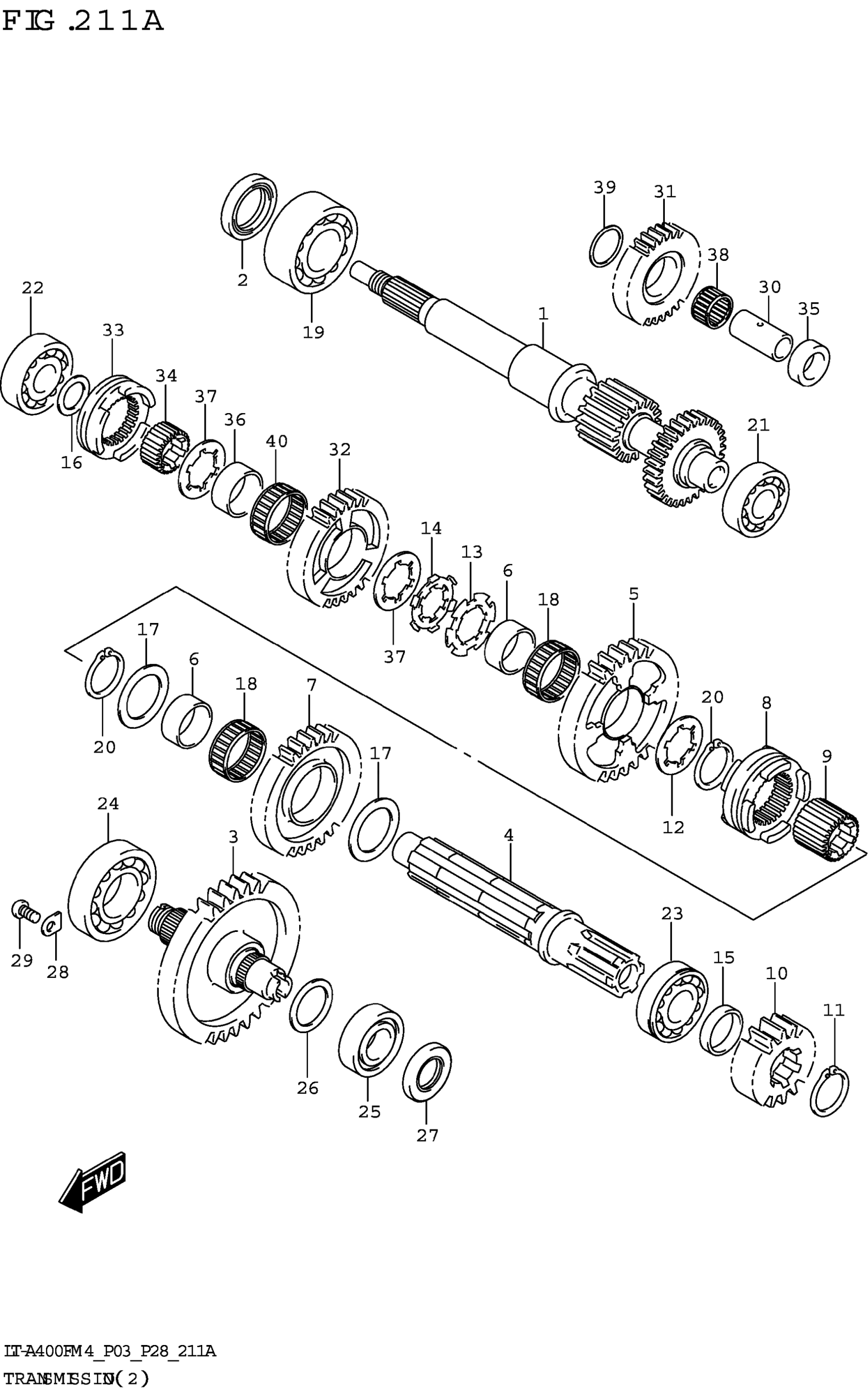

Suzuki LT-A400FM4 (2024) TRANSMISSION (2) Diagram

#

Description
Price

1

SHAFT,DRIVE (NT:24/16)

29111-38F10

Unavailable

2

SEAL,CRANKSHAFT UNDER OIL (30 | 44X7)

12281-87J00

$15.55

3

SHAFT,SUB T/M OUTPUT (NT:42)

29120-27H10

Unavailable

4

SHAFT,SUB T/M COUNTER

29131-27H00

Unavailable

5

GEAR,SUB T/M DRIVEN LOW (NT:4 | )

29311-09F51

$181.83

6

BUSH

29315-09F51

$28.08

7

GEAR SUB T/M DRIVEN,HI (NT:33

29321-09F51

$172.67

8

DOG,SUB T/M SELECT SLIDING

29331-38F10

$84.32

9

SPACER,SUB T/M SELECT

29332-38F10

Unavailable

10

GEAR,SUB T/M DRIVE,NO.2 (NT:1 | )

29411-38F00

$77.92

11

CIRCLIP

08331-31259

$2.48

12

WASHER (25.1X40X1.5)

09167-25017

$3.87

13

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

14

WASHER (25.1X37X2.5)

09169-25001

$2.70

15

SPACER (25X30X7)

09180-25097

$10.20

16

SHIM (20X30X1)

09181-20195

$2.60

17

SHIM (25X40X1)

09181-25251

$3.87

18

BEARING (30X35X12.8)

09263-30018

$22.25

19

BEARING

08113-62060

$34.25

20

SNAP RING

09380-25003

$3.04

21

BEARING (20X47X14)

09262-20069

$23.28

22

BEARING (20X52X15)

09262-20073

$23.28

23

BEARING (25X52X15)

09262-25003

$24.83

24

BEARING (35X72X17)

09262-35038

$46.10

25

BEARING (25X52X15)

09262-25003

$24.83

26

WASHER, 5TH DRIVE This part replaces 09181-25059.

09181-25167

$3.12

27

SEAL,OIL (25X45X5)

09283-25076

$10.19

28

RETAINER

24741-21A00

$2.81

29

SCREW (6X12)

09125-06122

$2.44

30

SHAFT,REVERSE IDLE

24551-38F00

Unavailable

31

GEAR,REVERSE IDLE (NT:28)

24561-27H00

Unavailable

32

GEAR,REVERSE DRIVEN (NT:34)

24571-27H00

Unavailable

33

DOG,REVERSE GR SELECT SLIDING

24581-27H00

Unavailable

34

SPACER,REVERSE SELECT SLIDING

24582-38F10

Unavailable

35

SPACER,REVERSE IDLE GEAR

24562-27H00

Unavailable

36

BUSH

29315-09F51

$28.08

37

WASHER (25.1X40X1.5)

09167-25017

$3.87

38

BEARING (20X24X12.8)

09263-20060

$20.73

39

SHIM (20X30X1)

09181-20195

$2.60

40

BEARING (30X35X12.8)

09263-30018

$22.25
