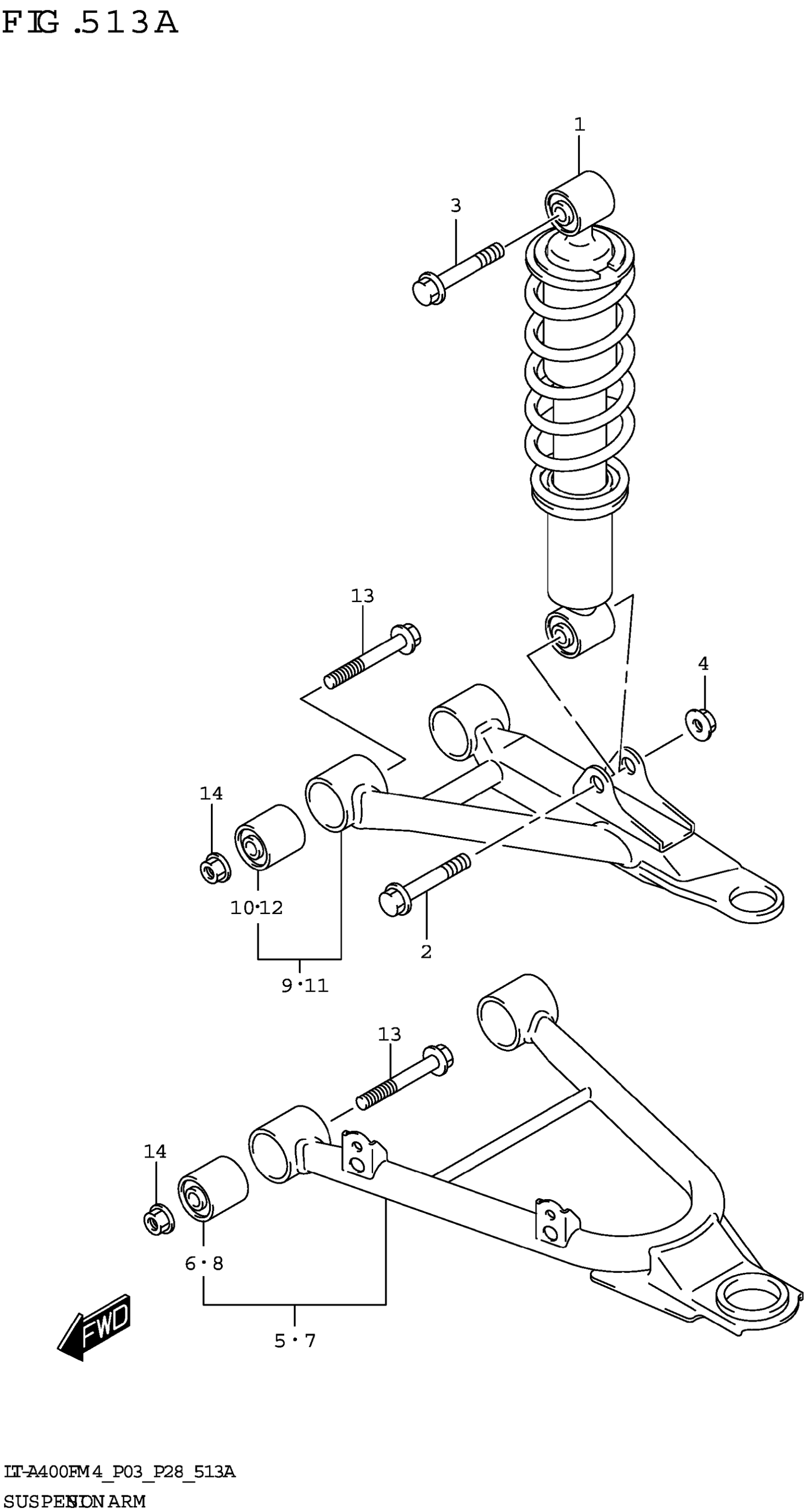

Suzuki LT-A400FM4 (2024) SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY,FR SHOCK (BLACK

52100-27H10-019

$160.48

2

BOLT (10X48)

09103-10126

$4.50

3

BOLT (10X48)

09103-10352

$5.88

4

NUT

08319-3110A

$2.73

5

ARM SET,SUSPENSION LOWER RH

52410-27820

$316.10

6

.BUSH (10X35.1X38)

09319-10055

$21.02

7

ARM SET,SUSPENSION LOWER LH

52420-27820

$310.27

8

.BUSH (10X35.1X38)

09319-10055

$21.02

9

ARM SET,SUSPENSION UPPER RH

52430-27810

$298.63

10

.BUSH (10X35.1X38)

09319-10055

$21.02

11

ARM SET,SUSPENSION UPPER LH

52440-27810

$298.63

12

.BUSH (10X35.1X38)

09319-10055

$21.02

13

BOLT (10X60)

09103-10301

$5.98

14

NUT (M10)

09159-10115

$3.55
