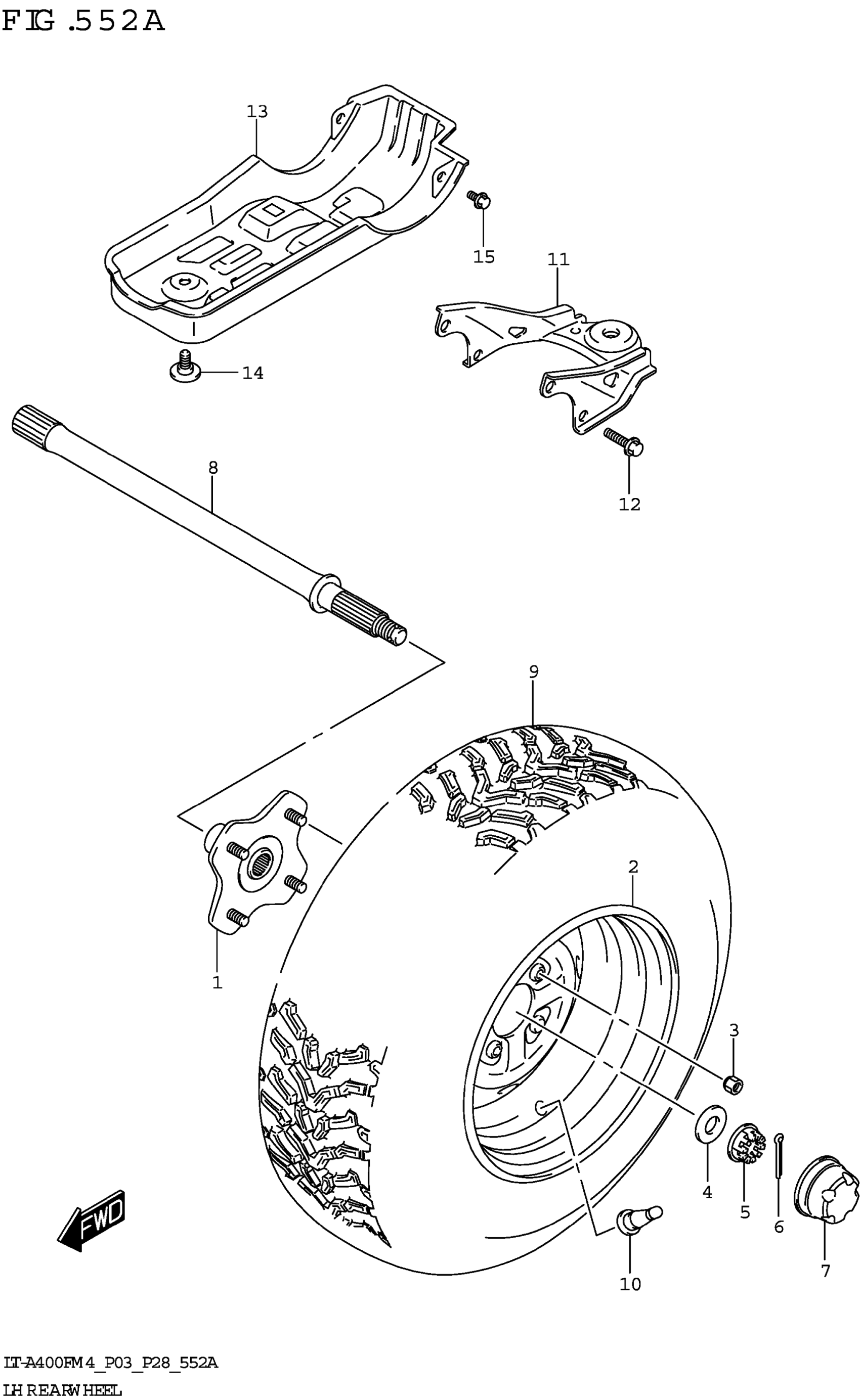

Suzuki LT-A400FM4 (2024) LH REAR WHEEL (LT-A400F) Diagram

Description

Price

HUB,REAR,L

64110-38F30

$110.00

RIM,RR WHEEL (12X7.5A,BLACK)

65310-38F40-291

$182.40

NUT

09140-10021

$2.03

WASHER,HUB

64723-38F00

$9.13

NUT

09141-20008

$18.05

04111-4035A

$1.49

CAP,WHEEL CENTER

54725-09F01

$9.95

AXLE,REAR,L

64712-38F20

$112.88

TIRE,REAR (AT25X10-12)

65110-31G30

$296.43

VALVE ASSY,WHEEL RIM (TR412)

43130-24AD0

Unavailable

PLATE,TRAILER TOW

95210-38F10

$43.63

BOLT (10X35)

09103-10422

$3.60

PROTECTOR,FINAL CASE

61391-38F11

$66.10

BOLT

61393-09F10

$7.13

BOLT (6X16.5)

09111-06094
