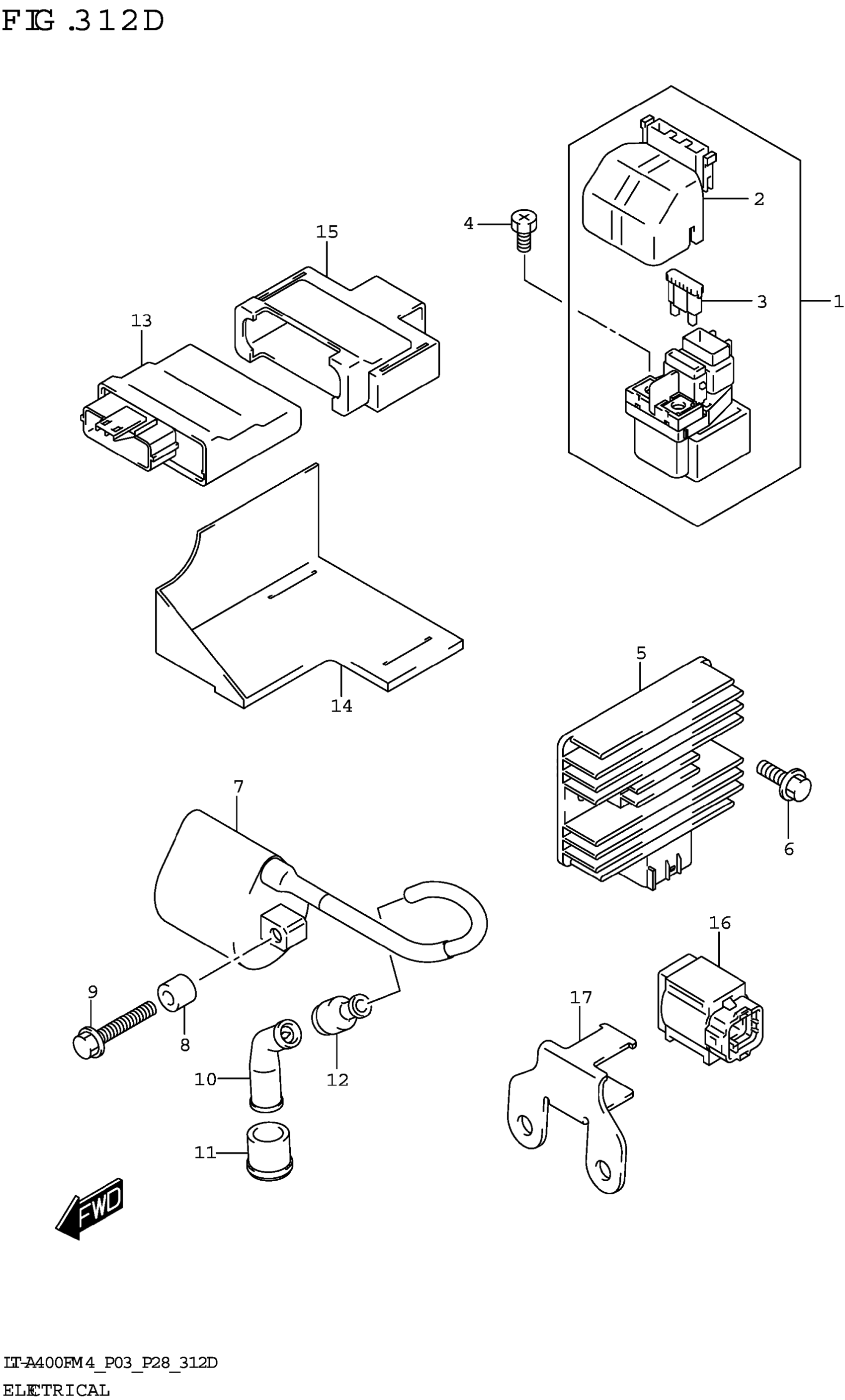

Suzuki LT-A400FM4 (2024) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR

31800-38G10

$97.31

2

.COVER

31861-38G00

$4.88

3

.FUSE (30A)

09481-30501

$2.32

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-42F10

$238.72

6

BOLT (6X20)

01550-0620A

$1.97

7

COIL ASSY,IGNITION

33410-26G01

$119.72

8

SPACER (6X12X10)

09180-06095

$3.93

9

BOLT

01547-0630B

$2.73

10

CAP,SPARK PLUG

33510-43010

$24.99

11

SEAL,SPARK PLUG

33541-44D00

$5.30

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

13

CONTROL UNIT,FI

32920-27HD1

$521.92

14

PROTECTOR, FI CONTROL UNIT

32942-27HA0

Unavailable

15

HOLDER, FI CONTROL UNIT

32981-27H00

Unavailable

16

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

17

BRACKET,FUEL CUT SENSOR

33961-27H00

Unavailable
