Description

Price

1

CRANKSHAFT SET

12201-38821

$1,025.18

2

.ROD,CONNECTING

12161-14D00

$150.35

3

.PIN,CRANK

12210-38F00

$65.60

4

.BEARING,34X43X22 (34X43X22)

09263-34005

$80.87

5

.WASHER,34X52X1 (34X52X1)

09160-34003

$8.62

6

.CRANKSHAFT,R (NT:24)

12220-38F12

Unavailable

7

.CRANKSHAFT,L

12260-38F10

Unavailable

8

.GEAR,CRANK BALANCER DRIVE (N | :37)

12661-38F01

Unavailable

9

BEARING (35X72X17)

09262-35038

$46.10

10

BEARING (35X72X17)

09262-35067

$87.25

11

OIL SEAL (34X52X6)

09282-34001

$36.72

12

RETAINER,CRANKSHAFT OIL SEAL,

12541-38F00

Unavailable

13

SCREW (6X12)

09126-06011

$2.03

14

PISTON

12111-38F21-0F0

$108.93

15

RING SET PISTON (STD)

12140-38F10

$51.49

16

PIN,PISTON

12151-24A00

$22.03

17

CIRCLIP

09381-20004

$1.65

18

OIL SEAL (25X42X6)

09283-25095

$26.72

19

CIRCLIP

08331-41479

$2.31

20

PISTON SET,OS0.5 (OS:0.5) | OPT

12100-38F21-050

$149.82

21

BEARING (25X47X8)

09262-25006

$25.54

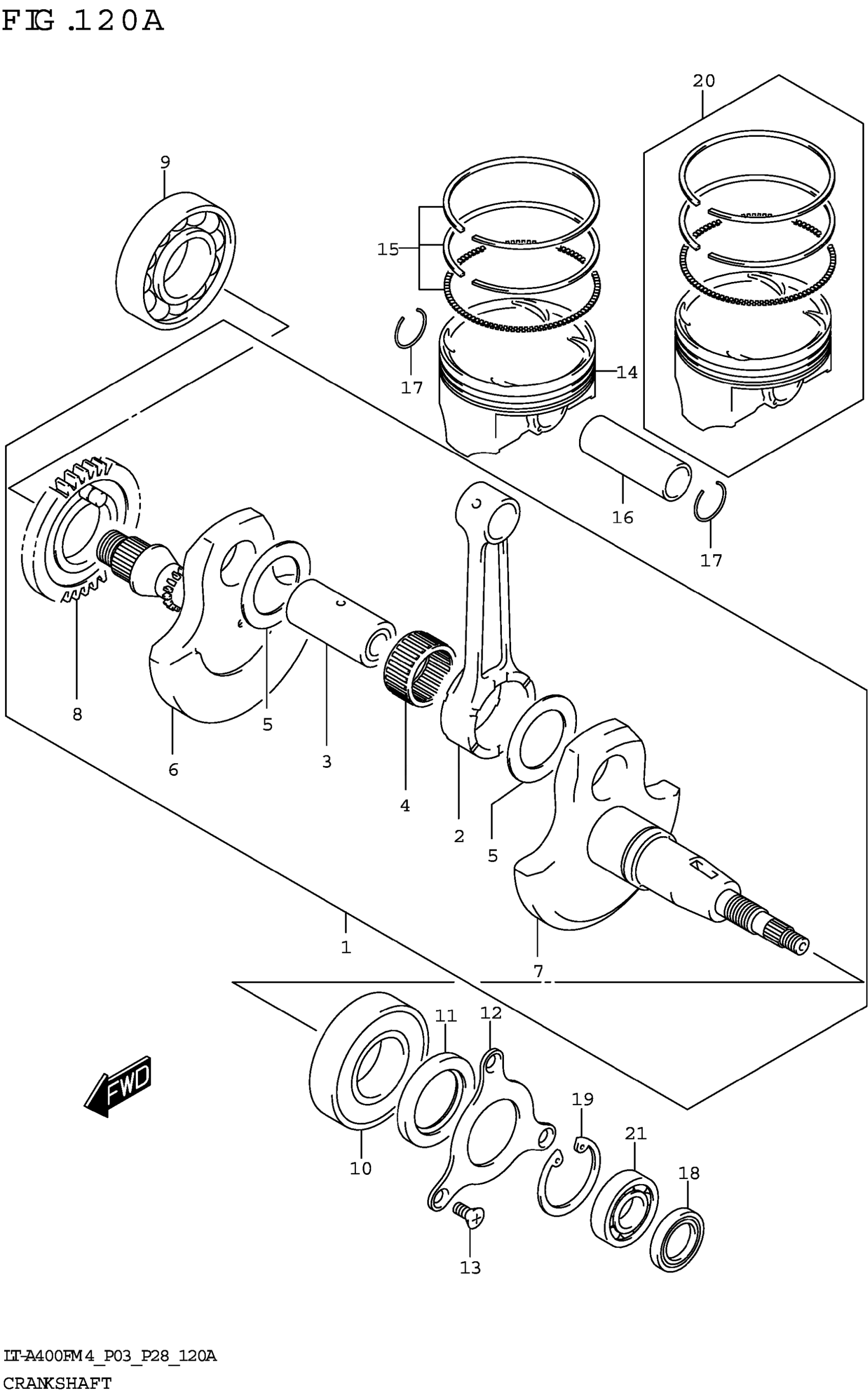

Suzuki LT-A400FM4 (2024) CRANKSHAFT Diagram

CRANKSHAFT SET

.ROD,CONNECTING

.PIN,CRANK

.BEARING,34X43X22 (34X43X22)

.WASHER,34X52X1 (34X52X1)

.CRANKSHAFT,R (NT:24)

.CRANKSHAFT,L

.GEAR,CRANK BALANCER DRIVE (N | :37)

BEARING (35X72X17)

BEARING (35X72X17)

OIL SEAL (34X52X6)

RETAINER,CRANKSHAFT OIL SEAL,

SCREW (6X12)

PISTON

RING SET PISTON (STD)

PIN,PISTON

CIRCLIP

OIL SEAL (25X42X6)

CIRCLIP

PISTON SET,OS0.5 (OS:0.5) | OPT

BEARING (25X47X8)
