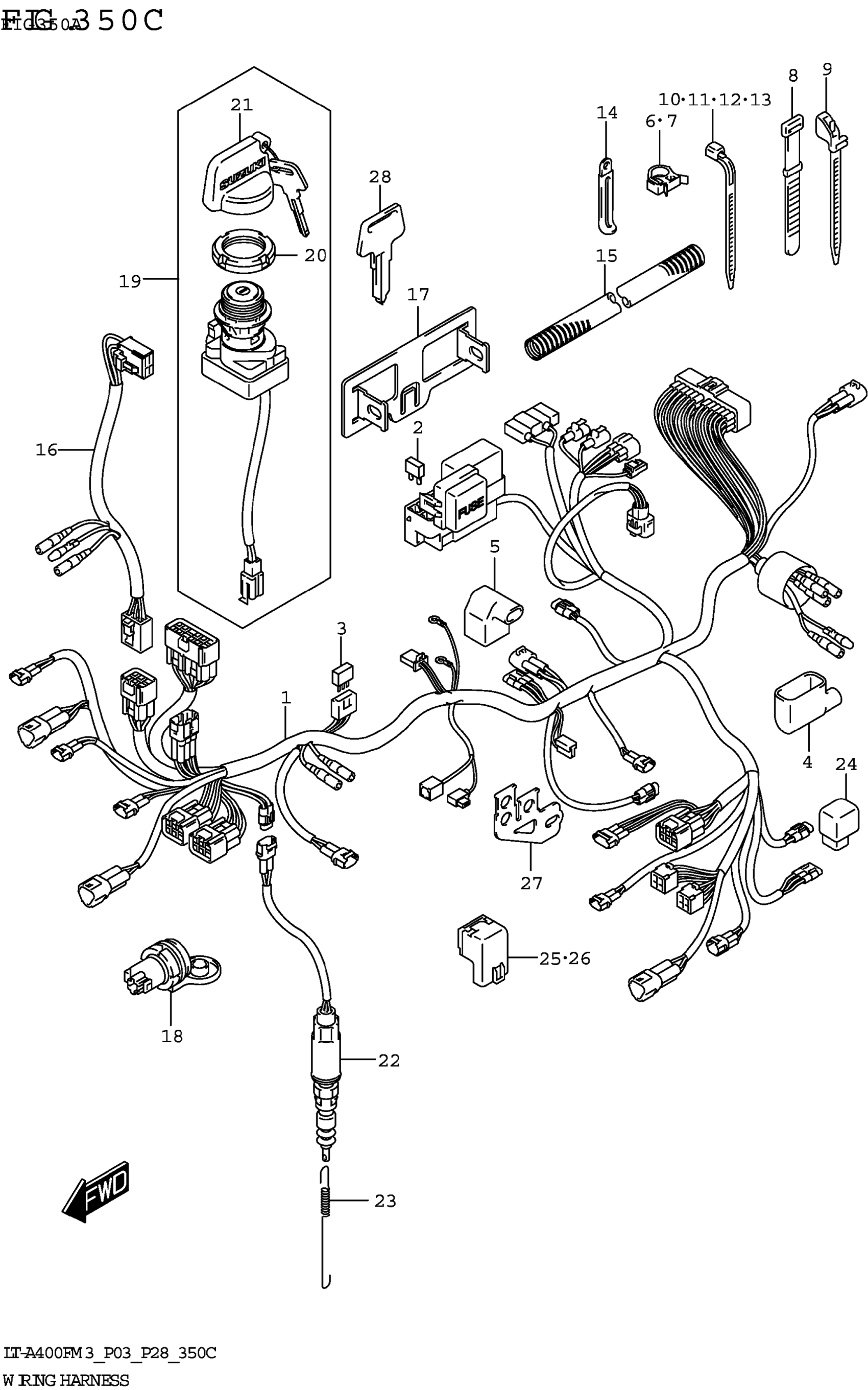

Suzuki LT-A400FM3 (2023) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS,WIRING

36610-27HG2

$627.32

2

.FUSE (10A)

09481-10501

$2.06

3

.DIODE

36611-38A10

$13.16

4

.PROTECTOR,WIRING HARNESS

36618-25H00

$4.92

5

.BOOT,CONNECTOR

36618-27H00

$2.65

6

CLAMP (D:20)

09403-20403

$3.58

7

CLAMP

09403-30403

Unavailable

8

CLAMP (L:187)

09407-18401

$2.07

9

CLAMP (L:116)

09407-12407

Unavailable

10

CLAMP (L:125)

09407-14403

$2.26

11

CLAMP (L:165)

09407-18402

$2.19

12

CLAMP (L:235)

09407-25401

$4.66

13

CLAMP (L:95)

09407-11401

$2.63

14

CLAMP (L:45)

09404-08211

$2.35

15

GUIDE,WIRING HARNESS

36619-27H00

Unavailable

16

WIRE,FRONT BRAKE SW LEAD

36855-27H00

$49.22

17

BRACKET,FUSE BOX

36744-38F00

$11.37

18

TERMINAL,POWER SOURCE (12V,12 | )

38850-03G10

$17.81

19

SWITCH ASSY,IGNITION

37110-38F01

$82.20

20

.NUT,IGNITION SWITCH

37112-24500

$11.48

21

.MASCOT,KEY

37142-19B01

$4.99

22

SWITCH ASSY,STOP LAMP

37740-38F01

$115.27

23

SPRING

09443-06016

$3.30

24

RELAY,NEUTRAL START

38730-09F00

$46.55

25

RELAY ASSY

38740-31G11

$27.46

26

RELAY ASSY

38740-31G11

$27.46

27

BRACKET, RELAY

38741-27H20

Unavailable

28-1

KEY,BLANK (TYPE:C)

37146-19B00

$8.07

28-2

KEY,BLANK (TYPE:D)

37146-19B10

$8.07

28-3

KEY,BLANK (TYPE:E)

37146-19B20

$8.07

28-4

KEY,BLANK (TYPE:F)

37146-19B30

$8.07
