Description

Price

1

HUB,REAR,L

64110-38F30

$110.00

2-1

WHEEL,REAR (BLACK) | BODY COLOR:YT9,YLG,30H,QMA

65311-27H00-291

Unavailable

2-2

WHEEL,REAR (BLACK) | BODY COLOR:QTF,QTM

65311-27H20-019

$265.88

3

NUT (H:23)

09159-10045

$6.42

4

WASHER,HUB

64723-38F00

$9.13

5

NUT

09141-20008

$18.05

6

PIN

04111-4035A

$1.49

7-1

CAP,WHEEL CENTER | BODY COLOR:YT9,YLG,30H,QMA

54725-34K00

$12.42

7-2

CAP,WHEEL CENTER | BODY COLOR:QTF,QTM

54725-34K20

$33.52

8

AXLE,REAR,L

64712-38F20

$112.88

9

TIRE,REAR (AT25X10-12)

65110-31G30

$296.43

10

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

11

PLATE,TRAILER TOW

95210-38F10

$43.63

12

BOLT (10X35)

09103-10422

$3.60

13

PROTECTOR,FINAL CASE

61391-38F11

$66.10

14

BOLT, FRONT This part replaces 61393-09F00.

61393-09F10

$7.13

15

BOLT (6X16.5)

09111-06094

$2.03

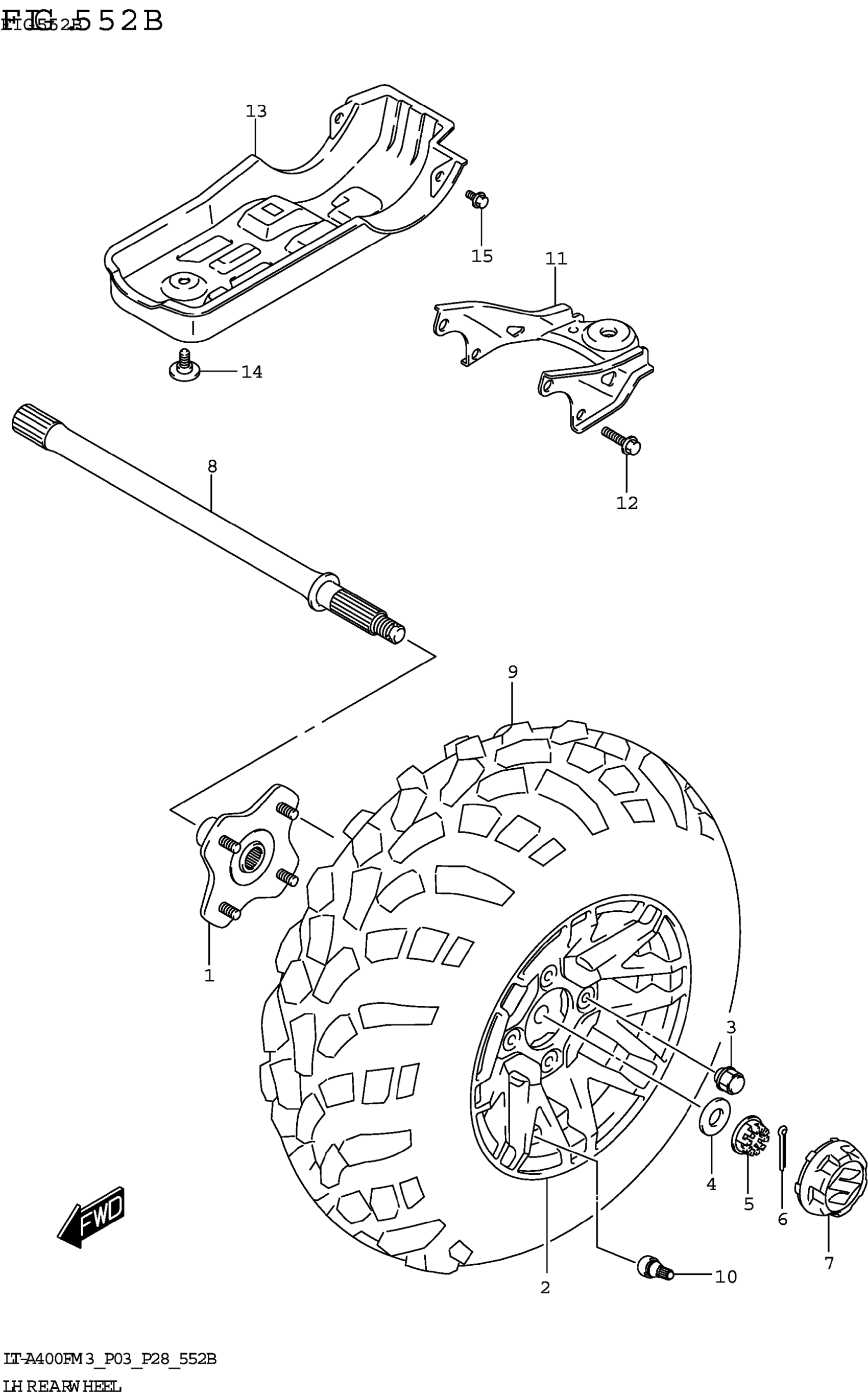

Suzuki LT-A400FM3 (2023) LH REAR WHEEL (LT-A400FZ) Diagram
