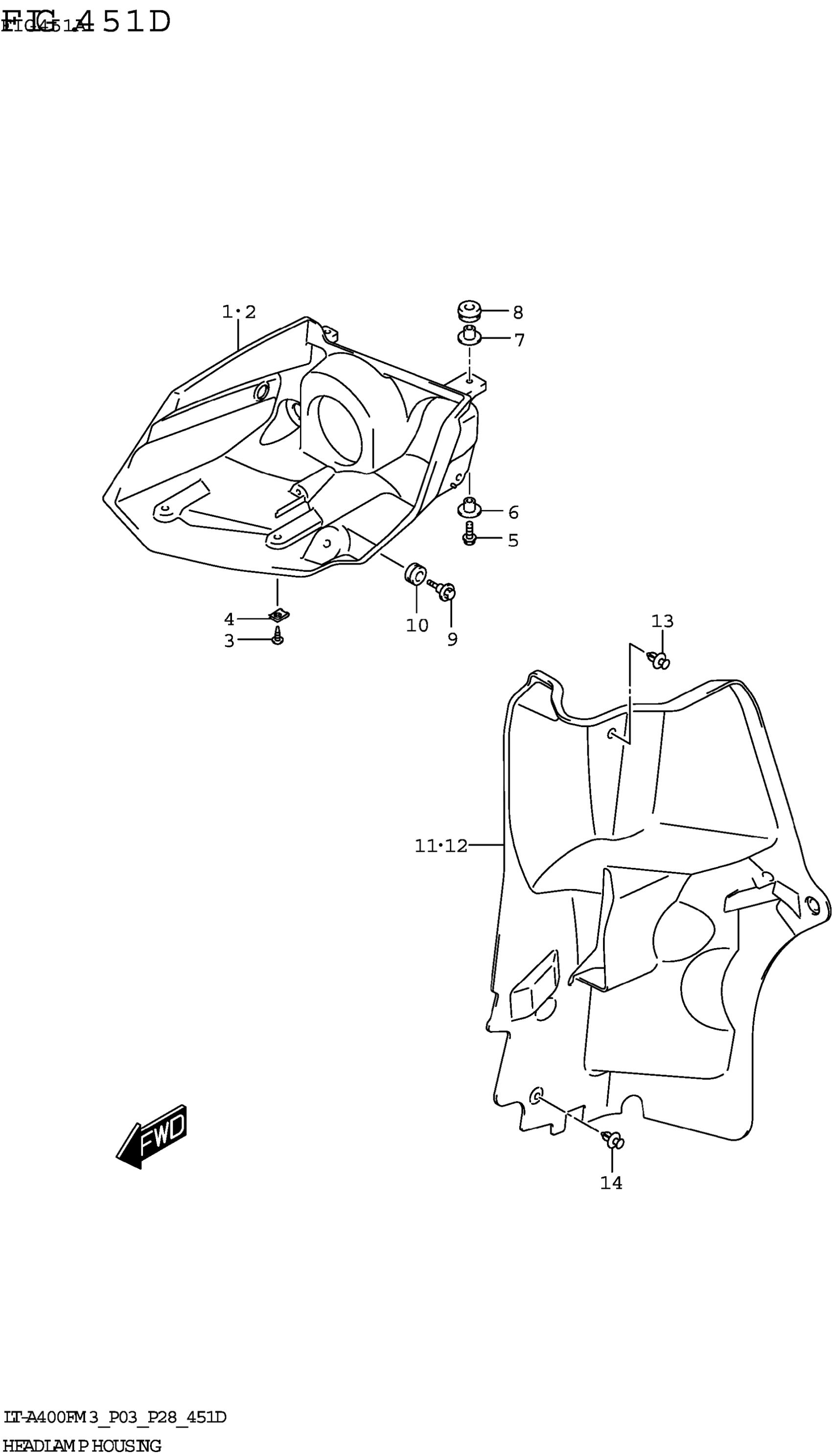

Suzuki LT-A400FM3 (2023) HEADLAMP HOUSING (P03) Diagram

#

Description

Price

1

HOUSING,FRONT LAMP,R (BLACK) This part replaces 53281-27H01-291.

53281-27H02-291

$33.02

2

HOUSING,FRONT LAMP,L (BLACK) This part replaces 53284-27H01-291.

53284-27H02-291

$32.72

3

SCREW

03541-0516A

$1.49

4

NUT (M5)

09148-05038

$1.97

5

BOLT (L:30)

01550-0630A

$2.32

6

WASHER (6.1X17.0X4.8)

09169-06073

$3.42

7

WASHER (6.5X24X1.6)

09169-06074

$7.95

8

CUSHION (11.5X32X12.2)

09320-11021

$4.17

9

SCREW (6X22.5)

09139-06118

$3.25

10

CUSHION (10X20X10)

09320-10078

$4.16

11

MUDFLAP,FENDER INNER,R This part replaces 53411-27H00.

53411-27H01

$94.18

12

MUDFLAP,FENDER INNER,L This part replaces 53421-27H00.

53421-27H01

$94.18

13

CLIP (D:2.4,ID:23.7)

09409-07333

$2.31

14

CLIP

09409-08335

$2.47
