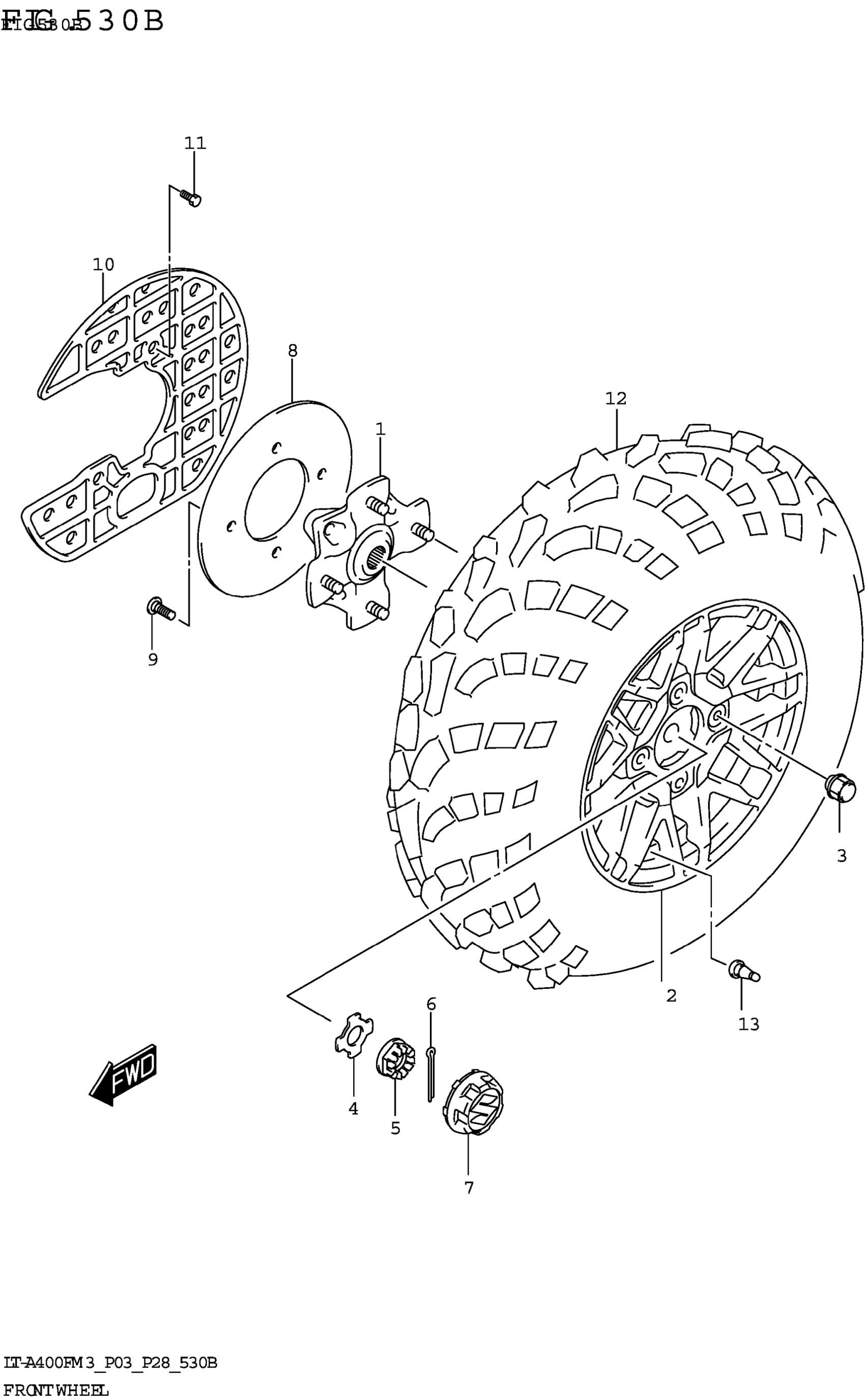

Suzuki LT-A400FM3 (2023) FRONT WHEEL (LT-A400FZ) Diagram

Description

Price

HUB,FRONT WHEEL This part replaces 54110-27H00.

54110-27H10

$99.40

2-1

WHEEL,FRONT (BLACK) | BODY COLOR:YT9,YLG,30H,QMA

55311-27H00-291

Unavailable

2-2

WHEEL,FRONT (BLACK) | BODY COLOR:QTF,QTM

55311-27H20-019

$150.12

NUT (H:23)

09159-10045

$6.42

WASHER

09164-18004

$3.76

NUT

09141-18010

$10.11

04111-4035A

$1.49

7-1

CAP,WHEEL CENTER | BODY COLOR:YT9,YLG,30H,QMA

54725-34K00

$12.42

7-2

CAP,WHEEL CENTER | BODY COLOR:QTF,QTM

54725-34K20

$33.52

DISC,FRONT BRAKE

59211-38F20

$46.75

BOLT (8X21)

09106-08160

$3.57

COVER,FRONT DISC

59231-27H00

$36.63

SCREW (6X16)

09139-06158

$4.90

TIRE,FRONT (AT25X8-12)

55110-31G30

$300.50

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85
