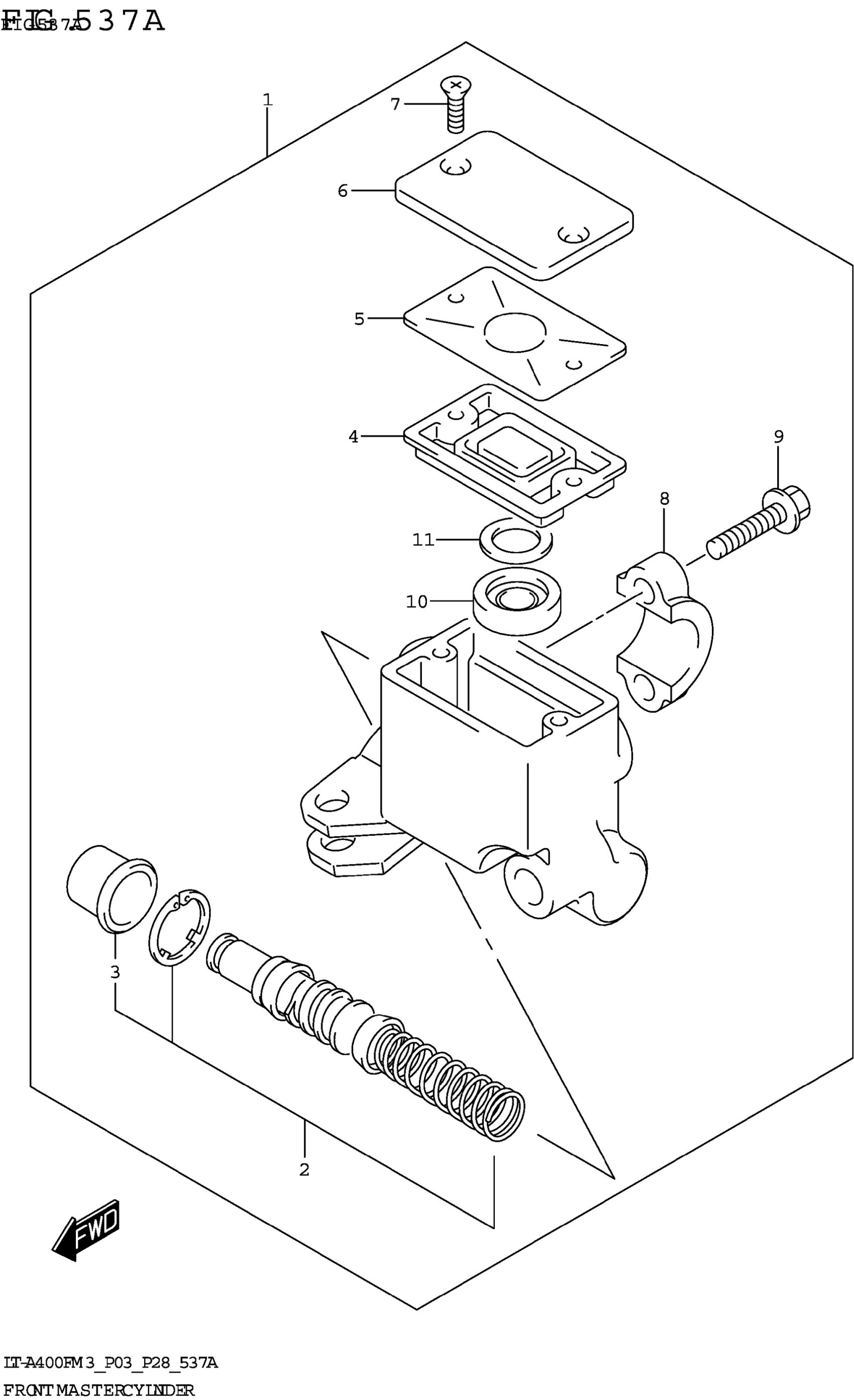

Suzuki LT-A400FM3 (2023) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-12D20

$297.43

2

.PISTON & CUP SET

59600-45850

$39.48

3

..BOOT

59666-44300

$5.80

4

.DIAPHRAGM

59667-04700

$9.78

5

.PLATE,DIAPHRAGM

59668-14F00

$11.60

6

.CAP

59669-14F10

$20.40

7

.SCREW

69689-49300

$1.91

8

.HOLDER

59671-36500

$12.21

9

.BOLT (6X22)

59675-02FA0

$3.82

10

.SEPARATOR

59748-15400

$9.38

11

.PLATE

59749-15400

$2.79
