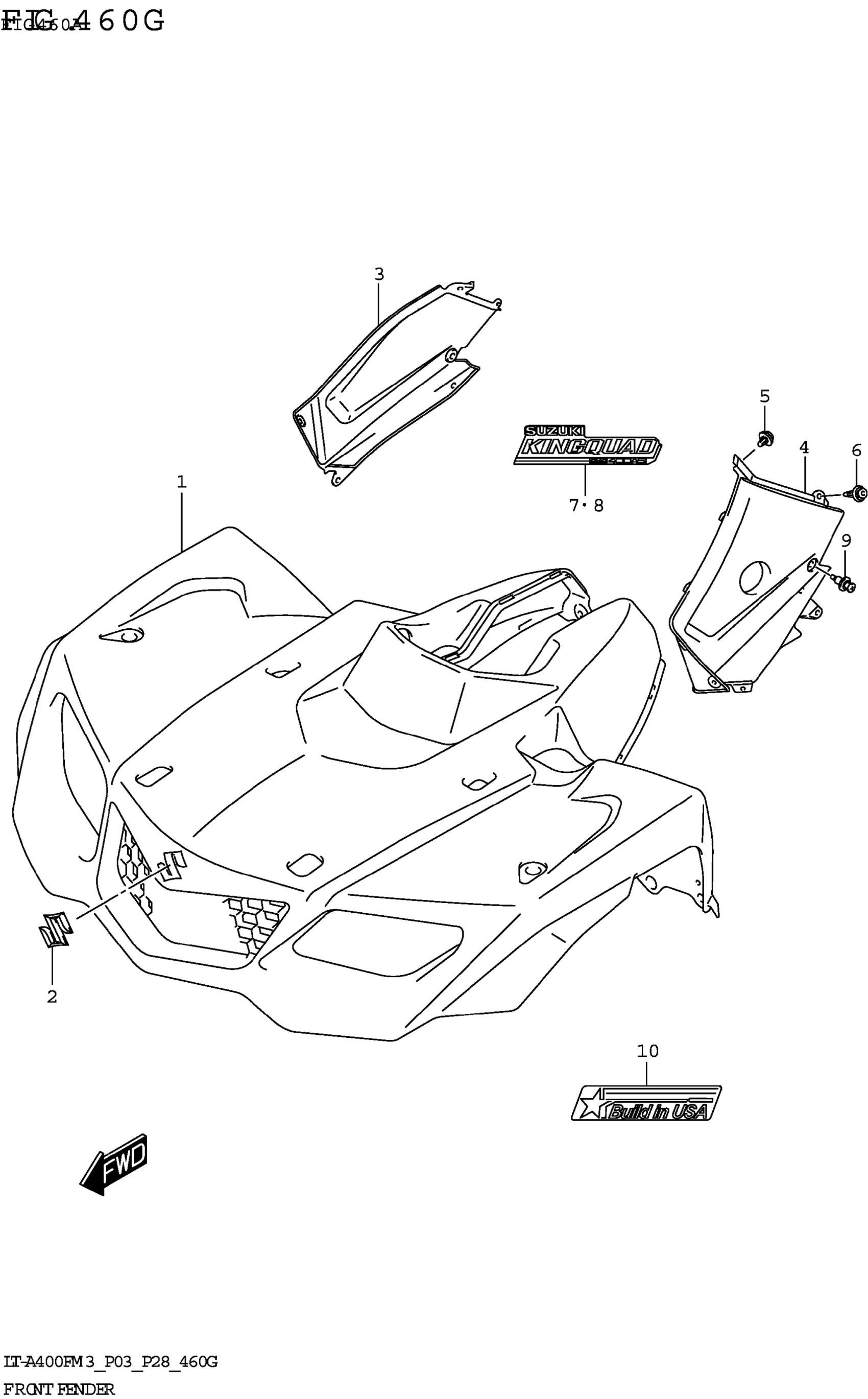

Suzuki LT-A400FM3 (2023) FRONT FENDER (P03) Diagram

#

Description

Price

1-1

FENDER,FRONT (RED)

53111-27H02-YT9

$371.05

1-2

FENDER,FRONT (GREEN)

53111-27H02-YLG

$358.13

1-3

FENDER,FRONT (GRAY)

53111-27H30-QTF

$917.18

1-4

FENDER,FRONT (KANATI)

53111-27H11-QTM

$1,091.68

2

EMBLEM,"S"

68151-03G40

$15.59

3

COVER,SIDE,R (BLACK) This part replaces 53112-27H03-291.

53112-27H04-291

$49.86

4

COVER,SIDE,L (BLACK) This part replaces 53122-27H12-291.

53122-27H13-291

$52.33

5

CLIP (D:2.4,ID:23.7)

09409-07333

$2.29

6

CLIP

09409-08335

$2.44

7

EMBLEM,FRONT FENDER RH (GRAY, | RAY,BLACK)

68151-27HB0-BM6

$27.17

8

EMBLEM,FRONT FENDER LH (GRAY, | RAY,BLACK)

68152-27HB0-BM6

$19.28

9

CLIP

09409-10306

$2.80

10

EMBLEM,FRONT FENDER (GRAY,GRA | )

68151-34KA0-BM7

$20.45
