2023 Suzuki LT-A400FM3 Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 2023 Suzuki LT-A400FM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

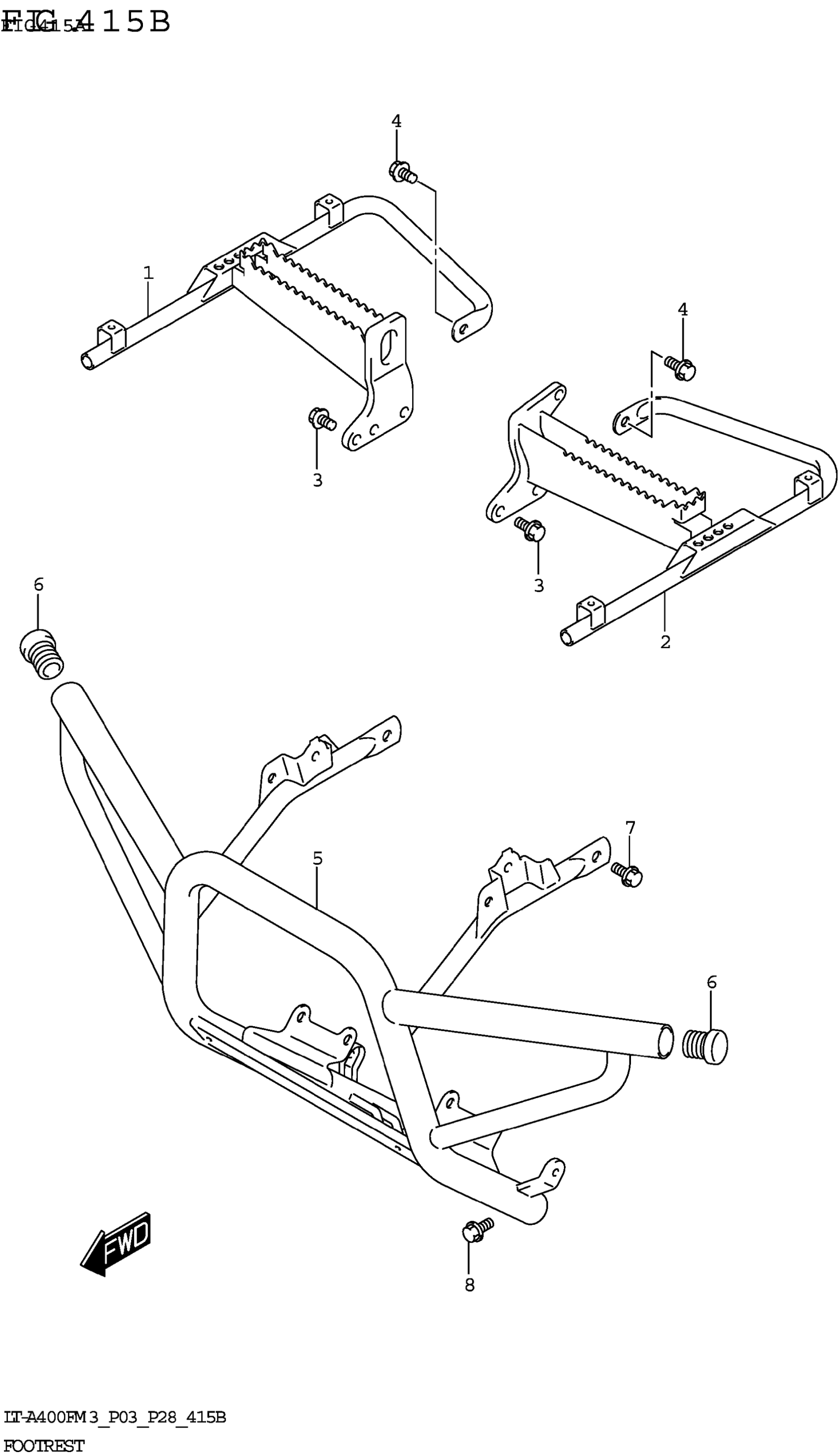

2023 Suzuki LT-A400FM3 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST RH

43510-27HA0

1
Out of stock

2

FOOTREST LH

43520-27HB0

1
Out of stock

3

BOLT (10X25)

43529-34K00

4
Out of stock

4

BOLT (8X16)

01550-0816A

2
Out of stock

5

GRIP,FRONT (BLACK)

46710-27H00-YSN

1
Out of stock

6

CAP,FRONT GRIP

43978-38F00

2
Out of stock

7

BOLT (8X16)

01550-0816A

2
Out of stock

8

BOLT (8X16)

09103-08441

2
Out of stock
