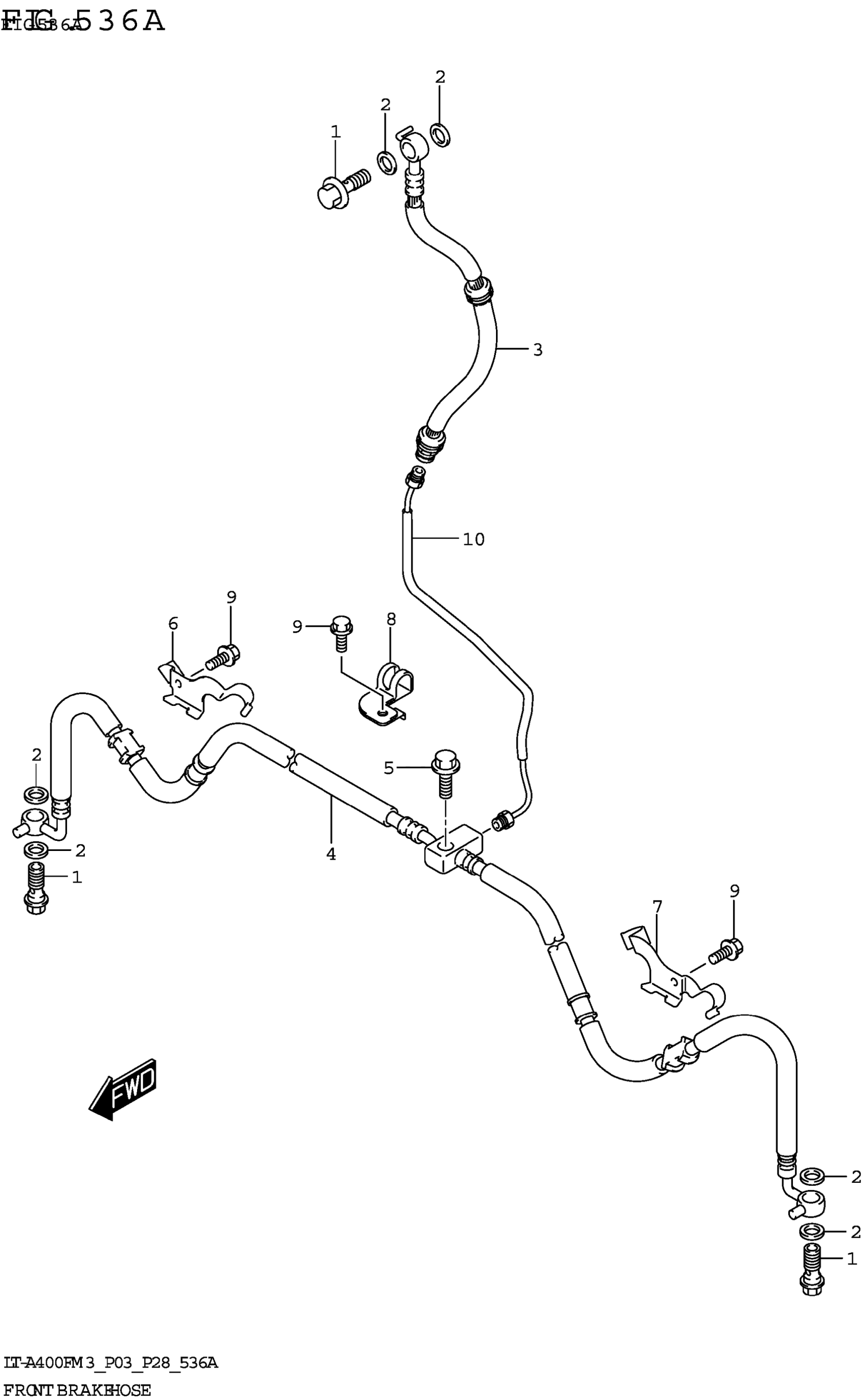

Suzuki LT-A400FM3 (2023) FRONT BRAKE HOSE Diagram

#

Description
Price

1

UNION (10X1.25X22)

09360-10062

$6.43

2

WASHER (10X15X1.5)

09161-10009

$1.84

3

HOSE,FRONT BRAKE NO.1

59480-27H11

$29.38

4

HOSE,FRONT BRAKE NO.2

59240-27H22

$98.63

5

BOLT (6X25)

01550-0625A

$1.97

6

CLAMP,FR BRAKE HOSE NO.2,R

59261-27H00

Unavailable

7

CLAMP,FR BRAKE HOSE NO.2,L

59271-27H00

Unavailable

8

CLAMP,FR BK HOSE NO.2 MIDDLE

59266-27H00

Unavailable

9

BOLT

01550-0616A

$1.97

10

PIPE,FR BRAKE

59250-27H00

Unavailable
