2022 Suzuki LT-A400FM2 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2022 Suzuki LT-A400FM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

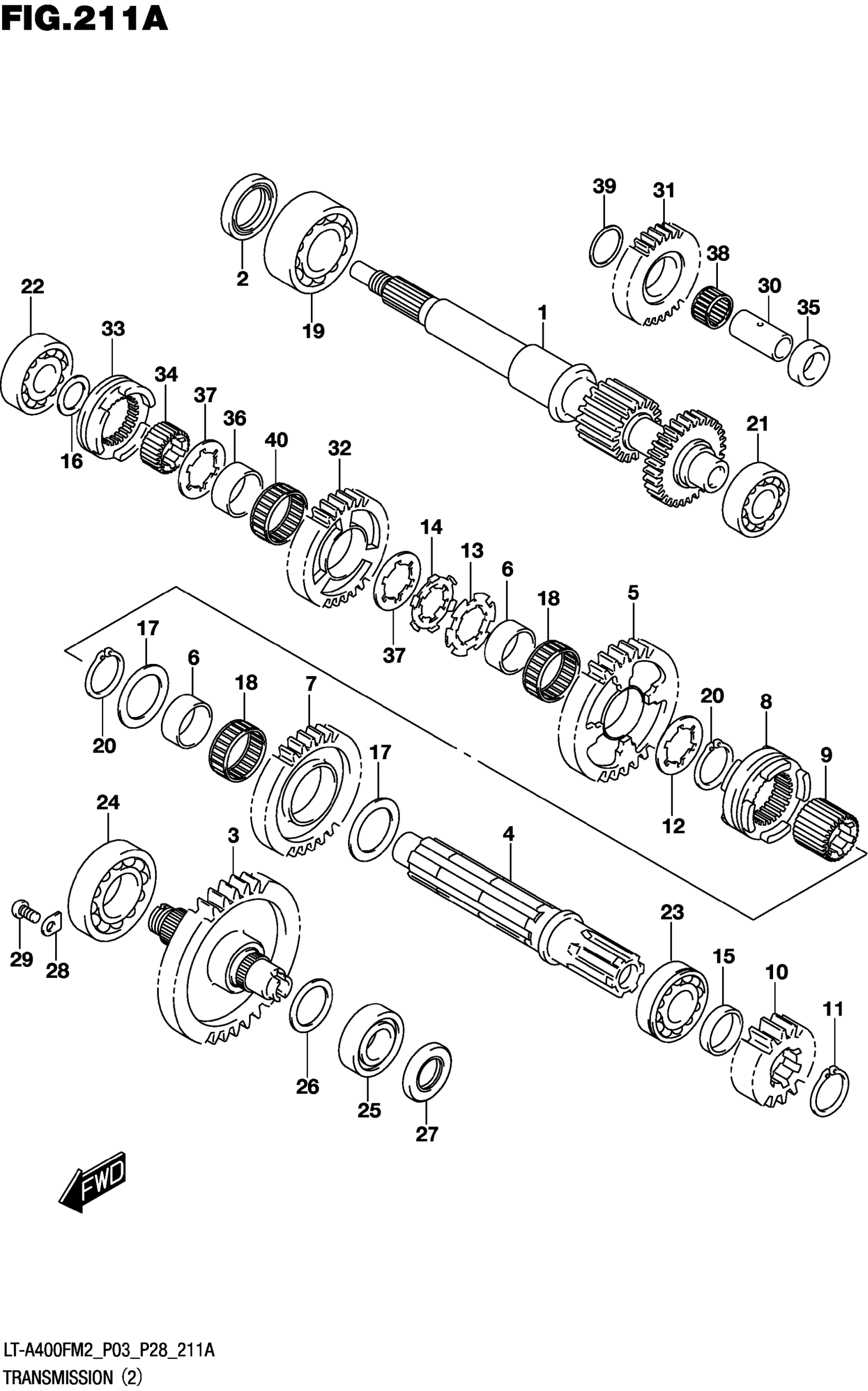

2022 Suzuki LT-A400FM2 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,DRIVE (NT:24/16)

29111-38F10

1
Out of stock

2

SEAL,CRANKSHAFT UNDER OIL (30

12281-87J00

1
Out of stock

3

SHAFT,SUB T/M OUTPUT (NT:42)

29120-27H10

1
Out of stock

4

SHAFT,SUB T/M COUNTER

29131-27H00

1
Out of stock

5

GEAR,SUB T/M DRIVEN LOW (NT:4

29311-09F51

1
Out of stock

6

BUSH

29315-09F51

1
Out of stock

7

GEAR SUB T/M DRIVEN,HI (NT:33

29321-09F51

1
Out of stock

8

DOG,SUB T/M SELECT SLIDING

29331-38F10

1
Out of stock

9

SPACER,SUB T/M SELECT

29332-38F10

1
Out of stock

10

GEAR,SUB T/M DRIVE,NO.2 (NT:1

29411-38F00

1
Out of stock

11

CIRCLIP

08331-31259

1
Out of stock

12

WASHER (25.1X40X1.5)

09167-25017

2
Out of stock

13

WASHER,LOCK (25.1X41X1.5)

09167-25013

1
Out of stock

14

WASHER (25.1X37X2.5)

09169-25001

1
Out of stock

15

SPACER (25X30X7)

09180-25097

1
Out of stock

16

SHIM (20X30X1)

09181-20195

1
Out of stock

17

SHIM (25X40X1)

09181-25251

2
Out of stock

18

BEARING (30X35X12.8)

09263-30018

1
Out of stock

19

BEARING

08113-62060

1
Out of stock

20

SNAP RING

09380-25003

2
Out of stock

21

BEARING (20X47X14)

09262-20069

1
Out of stock

22

BEARING (20X52X15)

09262-20073

1
Out of stock

23

BEARING (25X52X15)

09262-25003

1
Out of stock

24

BEARING (35X72X17)

09262-35038

1
Out of stock

25

BEARING (25X52X15)

09262-25003

1
Out of stock

26

WASHER, 5TH DRIVE This part replaces 09181-25059.

09181-25167

1
Out of stock

27

SEAL,OIL (25X45X5)

09283-25076

1
Out of stock

28

RETAINER

24741-21A00

2
Out of stock

29

SCREW (6X12)

09125-06122

2
Out of stock

30

SHAFT,REVERSE IDLE

24551-38F00

1
Out of stock

31

GEAR,REVERSE IDLE (NT:28)

24561-27H00

1
Out of stock

32

GEAR,REVERSE DRIVEN (NT:34)

24571-27H00

1
Out of stock

33

DOG,REVERSE GR SELECT SLIDING

24581-27H00

1
Out of stock

34

SPACER,REVERSE SELECT SLIDING

24582-38F10

1
Out of stock

35

SPACER,REVERSE IDLE GEAR

24562-27H00

1
Out of stock

36

BUSH

29315-09F51

2
Out of stock

37

WASHER (25.1X40X1.5)

09167-25017

1
Out of stock

38

BEARING (20X24X12.8)

09263-20060

1
Out of stock

39

SHIM (20X30X1)

09181-20195

1
Out of stock

40

BEARING (30X35X12.8)

09263-30018

2
Out of stock
