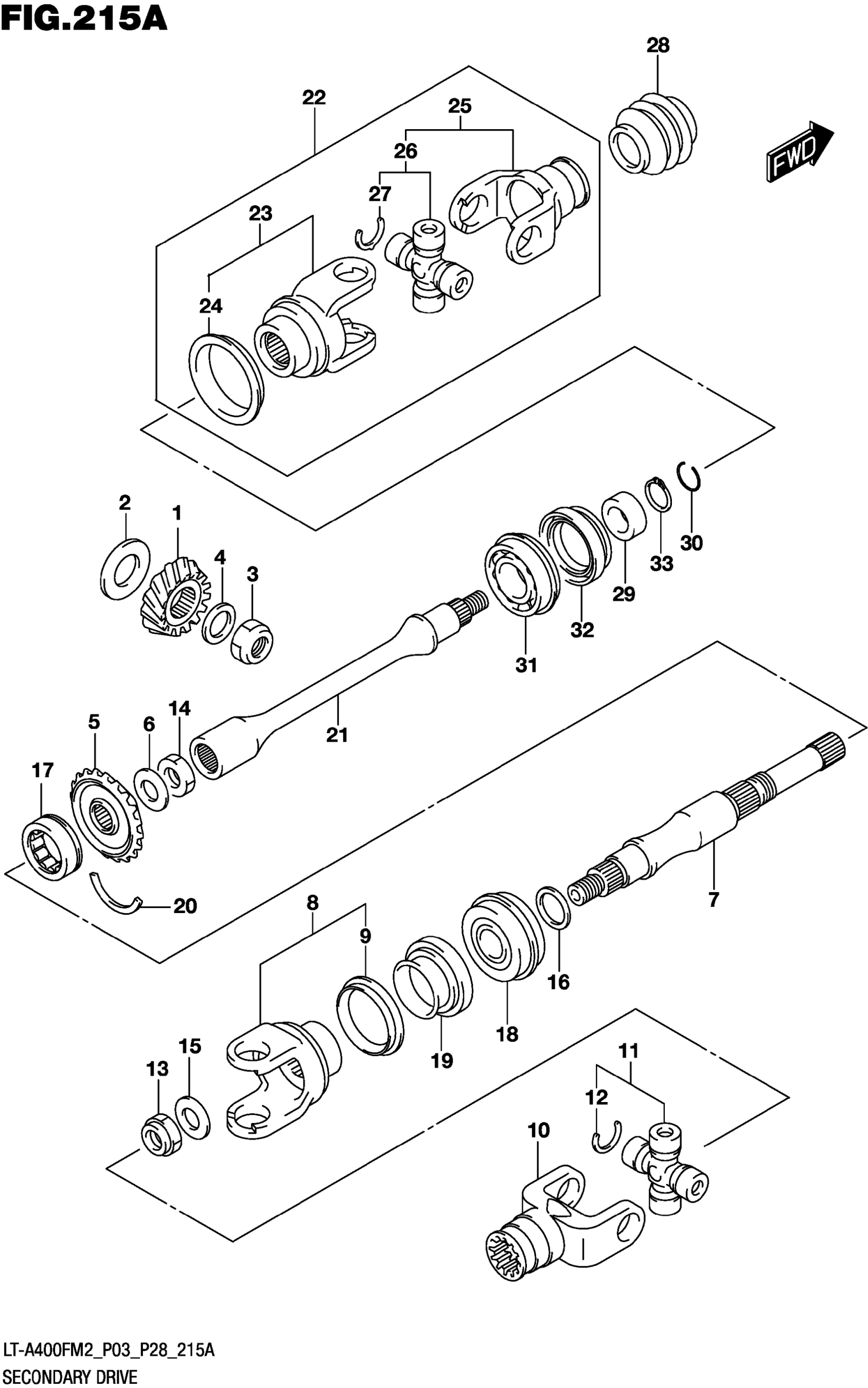

Find the part on the Secondary Drive diagram for your 2022 Suzuki LT-A400FM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki LT-A400FM2 Secondary Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR,SEC DRIVE BEVEL (NT:17)

24911-38F00

1
Out of stock

2

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.55/0.58/0.60

24935-03811

1
Out of stock

3

NUT

09140-20012

1
Out of stock

4

SHIM (20X32X1)

09181-20223

1
Out of stock

5

GEAR,SEC DRIVEN BEVEL (NT:21)

24921-38F00

1
Out of stock

6

WASHER

08211-22365

1
Out of stock

7

SHAFT,SEC DRIVEN OUTPUT RR

24971-27H00

1
Out of stock

8

YOKE,RR DRIVE OUTPUT

27130-03G00

1
Out of stock

9

.PLATE

27592-38F00

1
Out of stock

10

YOKE, PROP SHAFT JOINT

27140-27H01

1
Out of stock

11

JOINT SET,UNIVERSAL

27200-19811

1
Out of stock

12

.CIRCLIP

09380-20016

4
Out of stock

13

NUT

09159-16003

1
Out of stock

14

NUT

09159-22005

1
Out of stock

15

WASHER (16X30X3)

09160-16026

1
Out of stock

16

SHIM SET,SEC DRIVEN BEVEL

24945-03811

1
Out of stock

17

BEARING (30X50X17)

09263-30050

1
Out of stock

18

BEARING (25X52X20.6)

09267-25014

1
Out of stock

19

OIL SEAL (34X52X9)

09283-34008

1
Out of stock

20

C RING

09390-50002

1
Out of stock

21

SHAFT,SEC DRIVEN OUTPUT FR

24961-27H50

1
Out of stock

22

YOKE ASSY,UNIVERSAL JOINT

27100-27H02

1
Out of stock

23

.YOKE, FR DRIVE OUTPUT

27130-27H01

1
Out of stock

24

.PLATE

27592-38F00

1
Out of stock

25

YOKE, PROP SHAFT JOINT

27140-27H01

1
Out of stock

26

JOINT SET,UNIVERSAL

27200-19811

1
Out of stock

27

.CIRCLIP

09380-20016

4
Out of stock

28

BOOT,PROPELLER SHAFT

27153-27H11

1
Out of stock

29

COLLAR,FRONT DRIVE OUTPUT

27591-27H00

1
Out of stock

30

CIRCLIP (21.5X1.2)

09381-19005

1
Out of stock

31

BEARING (25X52X15)

09262-25131

1
Out of stock

32

OIL SEAL (34X52X9)

09283-34008

1
Out of stock

33

CIRCLIP

08331-31229

1
Out of stock
