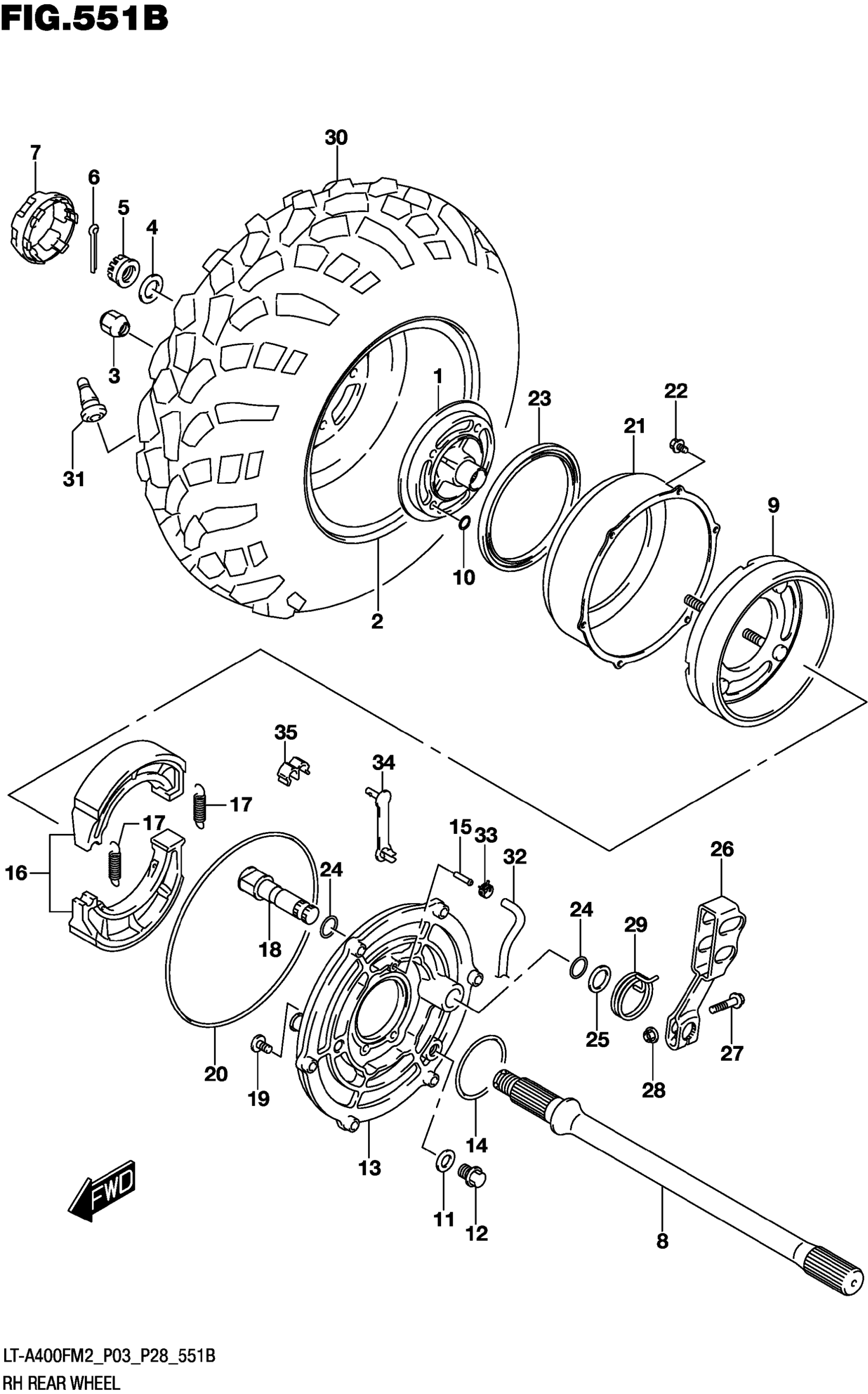

Suzuki LT-A400FM2 (2022) RH REAR WHEEL (LT-A400FZ) Diagram

#

Description
Price

1

HUB,REAR,R

64111-38F32

$156.60

2-1

WHEEL,REAR (BLACK) | FOR YT9,YLG,30H,QMA

65311-27H00-291

Unavailable

2-2

WHEEL,REAR (BLACK) | FOR QTF,QTM

65311-27H20-019

$265.88

3

NUT (H:23)

09159-10045

$6.42

4

WASHER,HUB

64723-38F00

$9.13

5

NUT

09141-20008

$18.05

6

PIN

04111-4035A

$1.49

7-1

CAP,WHEEL CENTER | FOR YT9,YLG,30H,QMA

54725-34K00

$12.42

7-2

CAP,WHEEL CENTER | FOR QTF,QTM

54725-34K20

$33.52

8

AXLE,REAR,R

64711-38F20

$134.43

9

DRUM,REAR BRAKE

64120-38F00

$293.45

10

O-RING (D:1.9,ID:9.8)

09280-10016

$3.37

11

WASHER (10X17X2.0)

09161-10007

$1.72

12

PLUG (10X12)

09247-10008

$1.97

13

PANEL,REAR BRAKE ANCHOR

64210-38F10

Unavailable

14

O-RING

09280-63005

$2.16

15

UNION

09364-04004

$13.12

16

SHOE SET,REAR BRAKE

64400-38830

$51.01

17

SPRING,BRAKE SHOE

55420-30000

$4.48

18

CAM,REAR BRAKE

64440-09F00

$23.68

19

BOLT (8X20)

09106-08161

$3.70

20

O-RING (D:3.7,ID:186)

09280-00038

$15.10

21

COVER,REAR BRAKE DRUM

64123-38F00

$118.08

22

BOLT

01547-0612A

$2.03

23

SEAL,REAR BRAKE DRUM COVER

64124-38F00

$135.46

24

O RING,BK CAM DUST (15.9X19.7

64443-18A00

$1.98

25

WASHER,16X26X1 (16X26X1)

09160-16033

$2.90

26

LEVER,REAR BRAKE CAM

64451-09F00

$33.97

27

BOLT

01550-0635A

$2.32

28

NUT (6X12)

08316-1006A

$2.19

29

SPRING,RR BRAKE CAM LEVER

64484-38F00

$8.85

30

TIRE,REAR (AT25X10-12) | AT489 CARLISLE

65110-31G30

$296.43

31

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

32

HOSE, REAR BRAKE BREATHER

64275-27H00

$6.35

33

CLIP (ID:6.8)

09401-06405

$2.45

34

CLAMP (L:33)

09407-03401

$3.07

35

CLIP

09408-00200

$2.67
