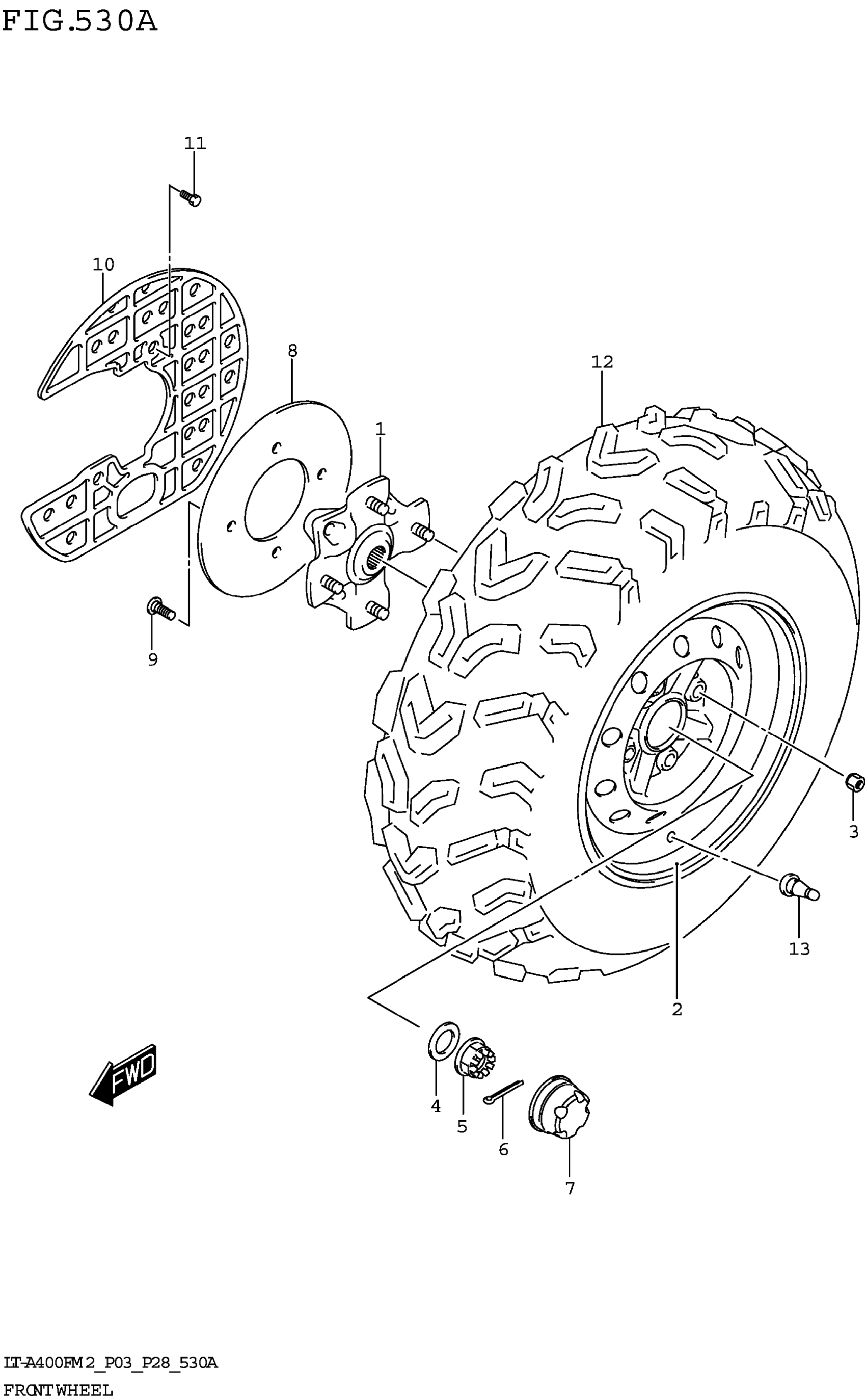

Suzuki LT-A400FM2 (2022) FRONT WHEEL (LT-A400F) Diagram

Description

Price

HUB,FRONT WHEEL This part replaces 54110-27H00.

54110-27H10

$99.40

RIM,FRONT WHEEL,12X6.0AT (12X

55310-38F30-291

$181.39

NUT

09140-10021

$2.03

WASHER

09164-18004

$3.76

NUT

09141-18010

$10.11

04111-4035A

$1.49

CAP,WHEEL CENTER

54725-09F01

$9.95

DISC,FRONT BRAKE

59211-38F20

$46.75

BOLT (8X21)

09106-08160

$3.57

COVER,FRONT DISC

59231-27H00

$36.63

SCREW (6X16)

09139-06158

$4.90

TIRE,FRONT (AT25X8-12) | AT489 CARLISLE

55110-31G30

$300.50

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85
