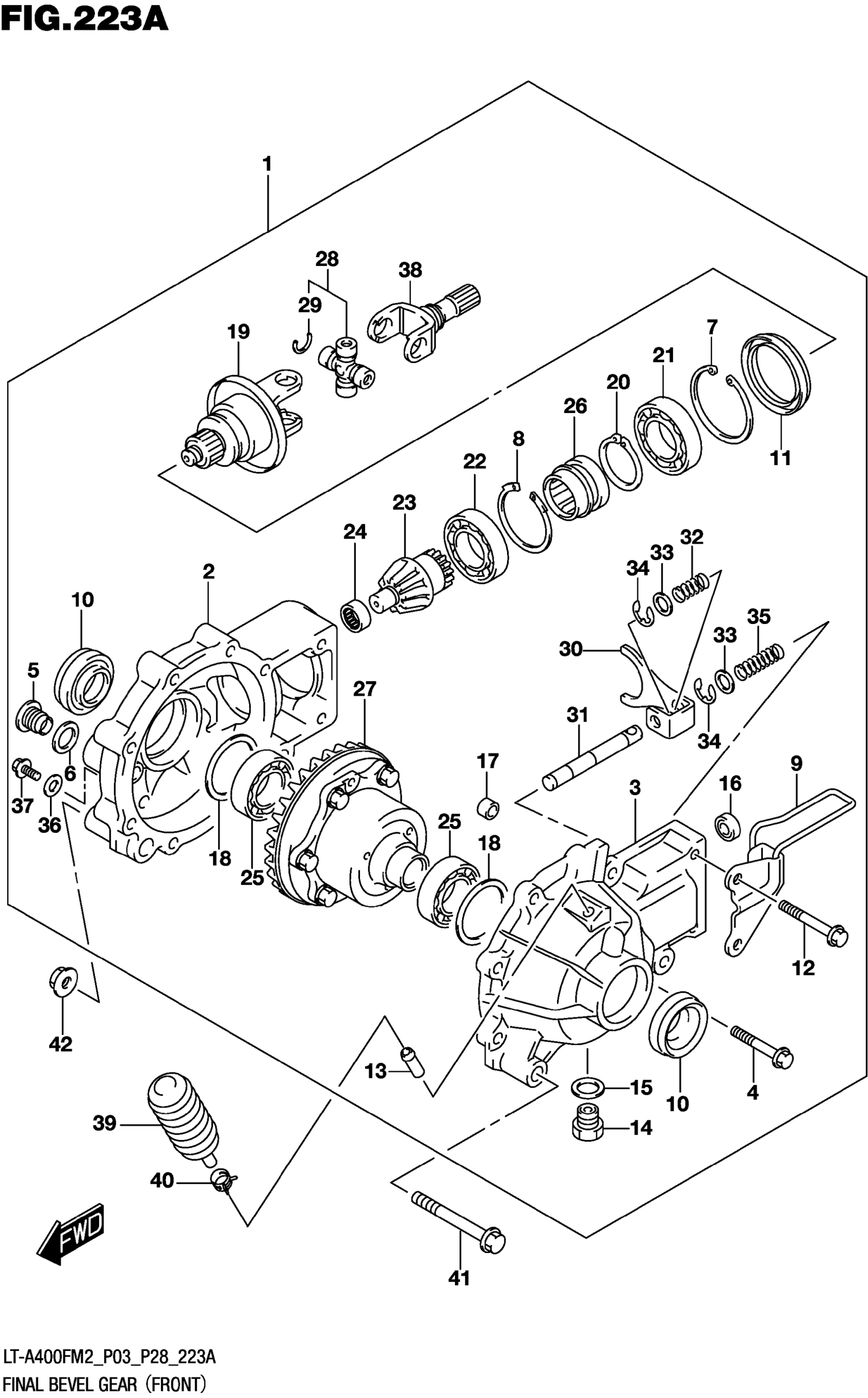

Suzuki LT-A400FM2 (2022) FINAL BEVEL GEAR (FRONT) Diagram

#

Description
Price

1

CASE ASSY,FR DIFFERENTIAL

27400-38F51

$1,340.88

2

.HOUSING,FINAL DRIVE,FR

27451-38FB1

Unavailable

3

.COVER,FINAL DRIVE,FR

27461-38FA1

Unavailable

4

.BOLT (8X25)

27401-38FA1

Unavailable

5

.PLUG

27409-38FA0

$3.40

6

.WASHER

27407-31GA0

$9.15

7

.RING SNAP

27403-38FA0

$4.82

8

.RING SNAP

27403-38FB0

$4.82

9

.BRACKET ASSY,SHIFT

27951-38FA0

$16.95

10

.OIL SEAL

27406-38FD0

$7.66

11

.OIL SEAL

27406-38FB0

$9.81

12

.BOLT (8X50)

27401-38FB0

$3.17

13

.UNION

09364-08003

$3.15

14

.PLUG

27409-38FB0

Unavailable

15

.WASHER

27407-38FB0

$2.78

16

.OIL SEAL

27406-38FC0

Unavailable

17

.PIN

27404-31GA0

$1.49

18

.SHIM SET

27445-38FA0

$114.32

19

.YOKE ASSY

27130-03GA0

$113.25

20

.SNAP RING

27403-38FC0

$3.27

21

.BEARING

27405-38FA0

$28.97

22

.BEARING

27405-38FB0

$30.47

23

PINION,DRIVE This part replaces 27311-11HA0.

27311-11HA1

$246.93

24

.BEARING

27405-38FC0

$8.53

25

.BEARING

27405-38FD0

$15.88

26

.SLEEVE

27371-31GA0

$76.35

27

.GEAR ASSY

27320-27HA0

$468.07

28

JOINT SET,UNIVERSAL

27200-19811

$59.54

29

.CIRCLIP

09380-20016

$2.32

30

.FORK,SHIFT

27941-38FA0

$15.10

31

.ROD,SHIFT

27921-38FA0

Unavailable

32

.SPRING,SHIFT

27402-38FA0

$2.80

33

.WASHER

27407-38FC0

$3.18

34

.E RING

27403-38FD0

$2.57

35

.SPRING,RETURN

27402-38FB0

$3.18

36

.WASHER

27407-38FD0

$3.05

37

.PLUG,LEVEL

27409-38FC0

$5.35

38

.YOKE,PROP SHAFT JOINT

27151-27HA0

$141.12

39

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$18.50

40

CLIP (ID:8.6)

09401-08411

$1.78

41

BOLT (10X110)

09103-10148

$6.94

42

NUT

08319-3110A

$2.73
