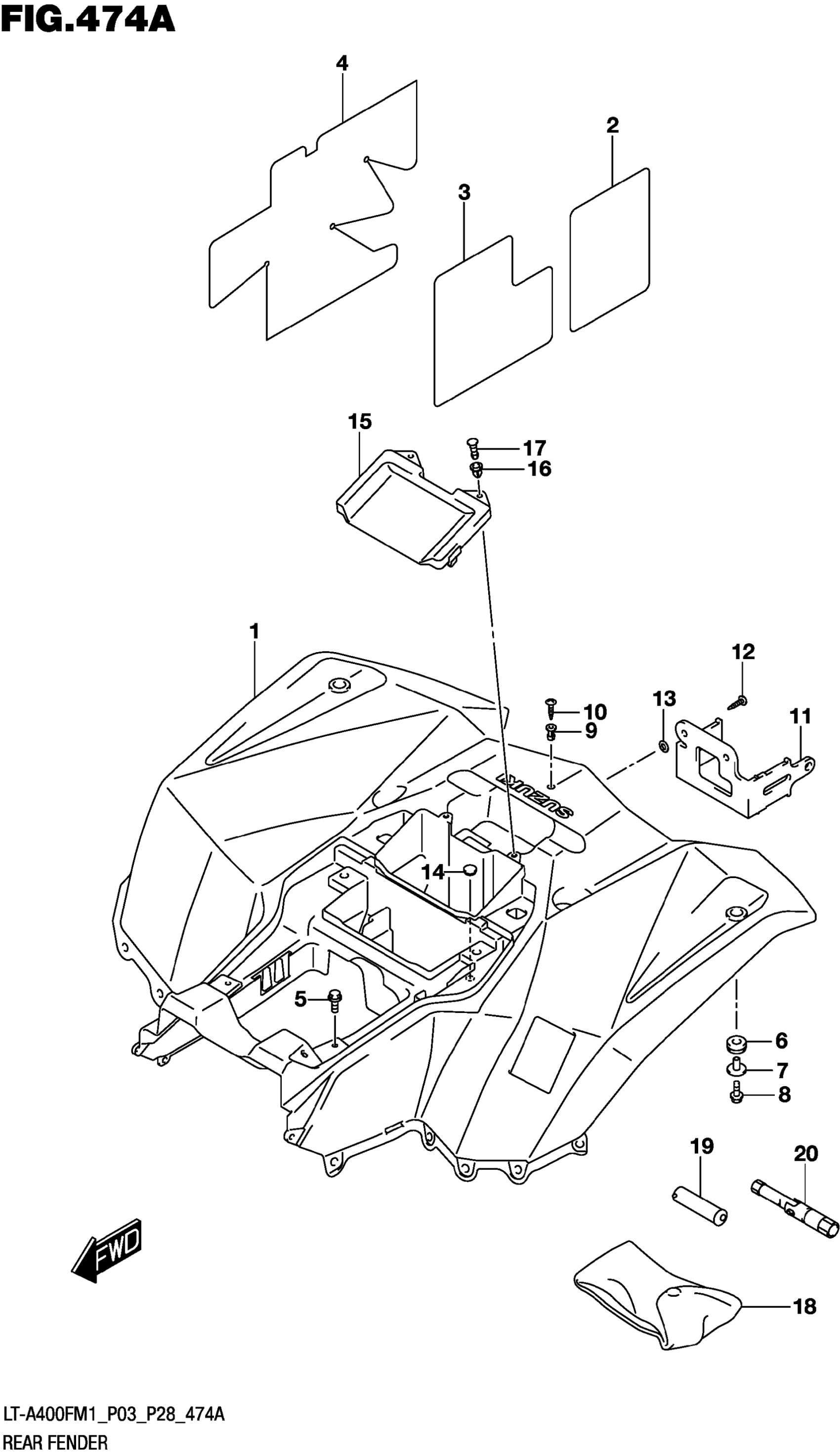

Suzuki LT-A400FM1 (2021) REAR FENDER Diagram

#

Description
Price

1-1

FENDER,REAR (RED) | BODY COLOR:YT9 This part replaces 63111-27H02-YT9.

63111-27H03-YT9

$340.22

1-2

FENDER,REAR (GREEN) | BODY COLOR:YLG This part replaces 63111-27H02-YLG.

63111-27H03-YLG

$328.27

1-3

FENDER,RR (WHITE) | BODY COLOR:30H

63111-27H02-30H

$302.25

1-4

FENDER,REAR (KANATI) | BODY COLOR:QTM

63111-27H12-QTM

$1,011.37

1-5

FENDER,REAR (BRONZE) | BODY COLOR:QMA

63111-27H30-QMA

$435.78

1-6

FENDER,REAR (GRAY) | BODY COLOR:QTF

63111-27H30-QTF

$886.05

2

SHIELD,RR FENDER

63122-27H30

$7.43

3

SHIELD,RR FENDER

63123-27H30

$8.62

4

SHIELD,RR FENDER

63124-27H30

$10.33

5

BOLT (6X16)

09116-06006

$1.86

6

CUSHION (11.5X32X12.2)

09320-11021

$4.17

7

WASHER (6.5X24X1.6)

09169-06074

$7.95

8

BOLT (6X25)

01550-0625A

$1.97

9

NUT (M5)

09159-05019

$7.14

10

SCREW

02142-0520B

$1.78

11

PLATE,CDI UNIT

47413-27H00

$10.96

12

RIVET

09229-04020

$2.66

13

WASHER

08322-0104A

$1.91

14

CAP (OD:16)

09250-08018

$3.34

15

COVER,REAR FENDER

63112-27H00

$35.80

16

GROMMET

09409-08329

$2.40

17

PLUNGER

09409-08330

$2.38

18

TOOL ASSY

09800-21057

$11.57

19

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92

20

SPANNER,BOX (16)

09816-00168

$15.10
