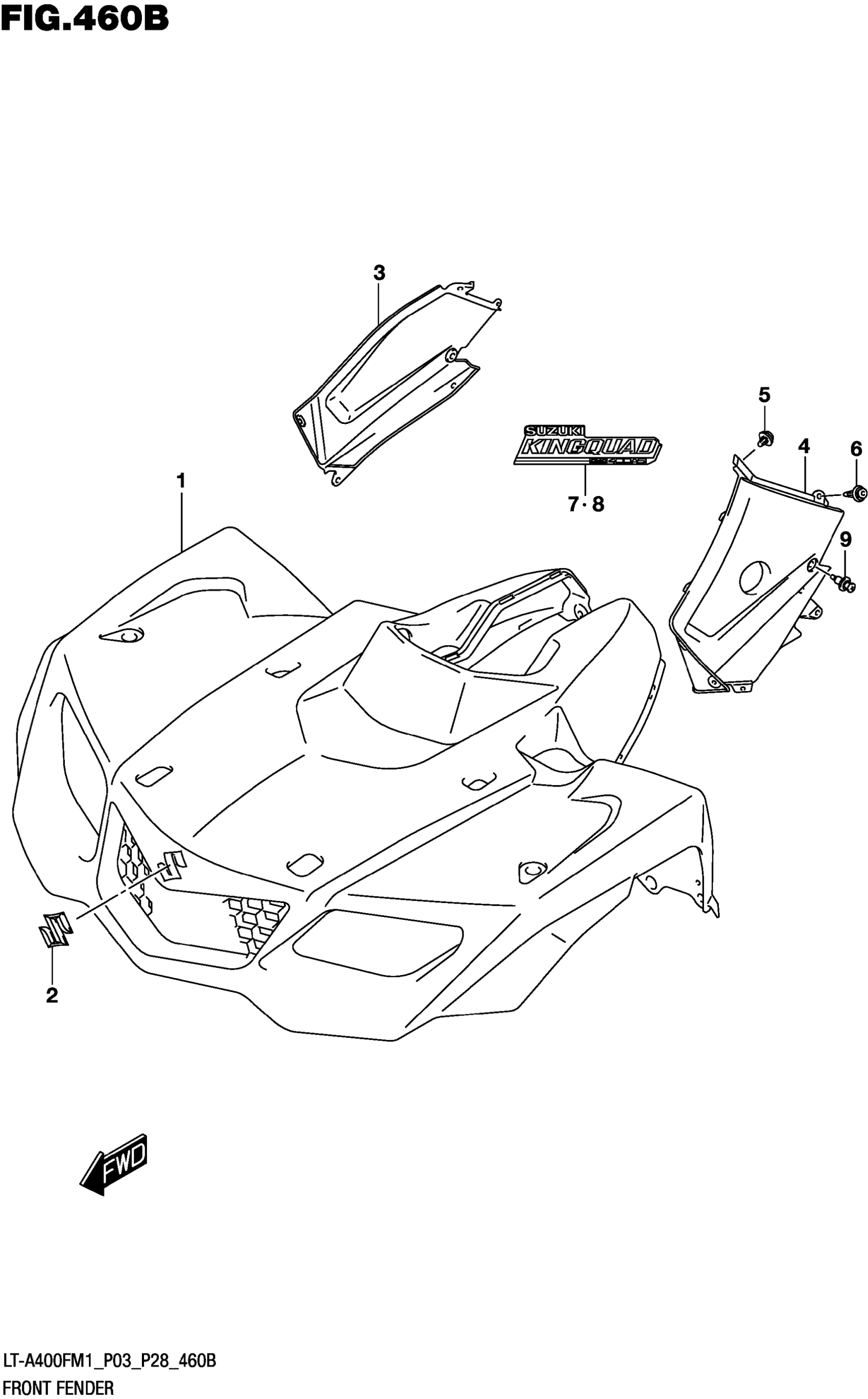

Suzuki LT-A400FM1 (2021) FRONT FENDER Diagram

#

Description
Price

1-1

FENDER,FRONT (RED) | BODY COLOR:YT9 This part replaces 53111-27H01-YT9.

53111-27H02-YT9

$343.08

1-2

FENDER,FRONT (GREEN) | BODY COLOR:YLG This part replaces 53111-27H01-YLG.

53111-27H02-YLG

$331.13

1-3

FENDER,FRONT (WHITE) | BODY COLOR:30H This part replaces 53111-27H01-30H.

53111-27H02-30H

$343.08

1-4

FENDER,FRONT (KANATI) | BODY COLOR:QTM

53111-27H11-QTM

$1,009.42

1-5

FENDER,FRONT (BRONZE) | BODY COLOR:QMA

53111-27H30-QMA

$435.90

1-6

FENDER,FRONT (GRAY) | BODY COLOR:QTF

53111-27H30-QTF

$848.07

2

EMBLEM,"S"

68151-03G40

$17.03

3

COVER,SIDE,R (BLACK) This part replaces 53112-27H02-291.

53112-27H04-291

$52.96

4

COVER,SIDE,L (BLACK) This part replaces 53122-27H11-291.

53122-27H13-291

$48.62

5

CLIP (D:2.4,ID:23.7)

09409-07333

$2.31

6

CLIP

09409-08335

$2.47

7

EMBLEM,FRONT FENDER RH (GRAY, | RAY/BLACK)

68151-27HB0-BM6

$24.07

8

EMBLEM,FRONT FENDER LH (GRAY, | RAY/BLACK)

68152-27HB0-BM6

$24.07

9

CLIP

09409-10306

$3.04
