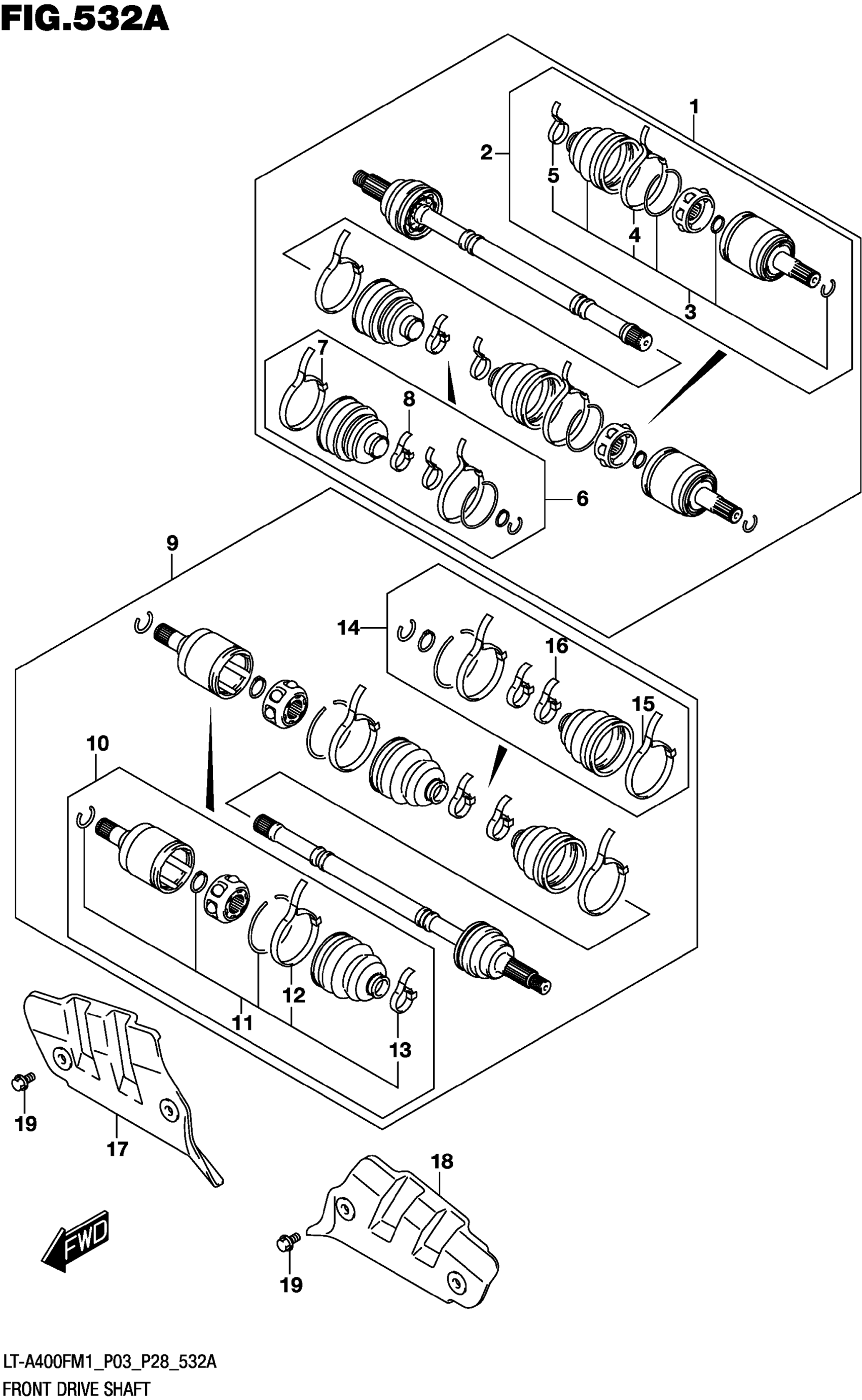

Suzuki LT-A400FM1 (2021) FRONT DRIVE SHAFT Diagram

#

Description
Price

1

SHAFT ASSY, FRONT DRIVE RH

54901-27H01

$427.70

2

.JOINT SET

54933-38F14

$203.32

3

..BOOT SET, INNER

54931-38F14

$104.35

4

...BAND, BOOT

44121-38F20

Unavailable

5

...BAND, BOOT

44124-38F00

Unavailable

6

.BOOT SET, OUTER

54930-27H01

$142.67

7

..BAND, BOOT

44121-38F30

Unavailable

8

...BAND, BOOT

44124-38F00

Unavailable

9

SHAFT ASSY, FRONT DRIVE LH

54902-27H01

$405.78

10

.JOINT SET

54933-38F14

$203.32

11

..BOOT SET, INNER

54931-38F14

$104.35

12

...BAND, BOOT

44121-38F20

Unavailable

13

...BAND, BOOT

44124-38F00

Unavailable

14

.BOOT SET, OUTER

54930-27H01

$142.67

15

..BAND, BOOT

44121-38F30

Unavailable

16

...BAND, BOOT

44124-38F00

Unavailable

17

PROTECTOR,FRONT DRIVE SHAFT,R

54903-27H01

$14.05

18

PROTECTOR,FRONT DRIVE SHAFT,L

54904-27H01

$16.52

19

BOLT (6X12)

09111-06085

$4.54
