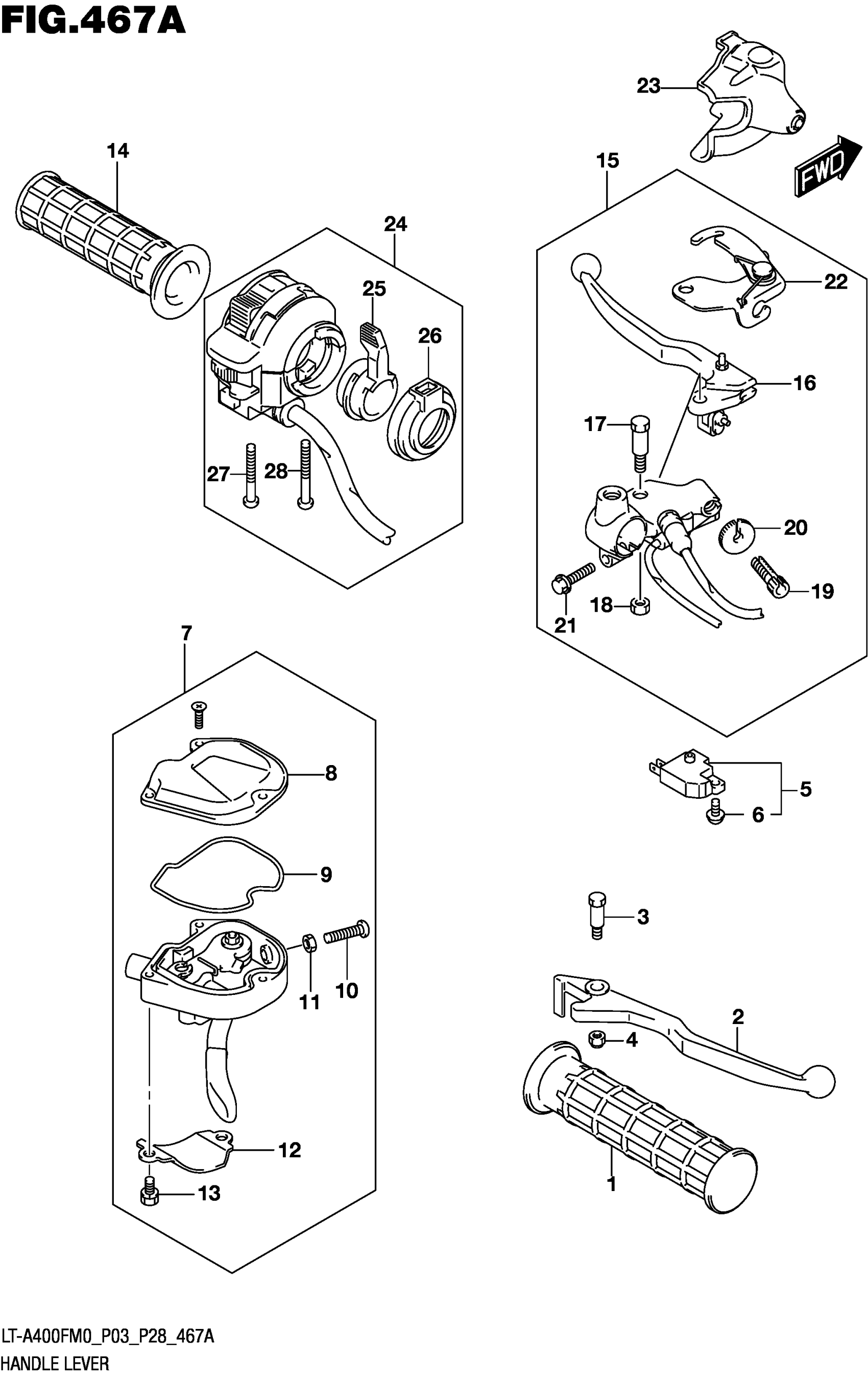

Suzuki LT-A400FM0 (2020) HANDLE LEVER Diagram

#

Description
Price

1

GRIP

57211-21G10

$10.15

2

LEVER,FRONT BRAKE

57421-39D20

$23.07

3

BOLT,BRAKE LEVER PIVOT

57431-04F00

$6.28

4

NUT,LEVER PIVOT

57433-09F00

$3.56

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$38.46

6

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.19

7

CASE ASSY,THROTTLE This part replaces 57100-27H01.

57100-27H03

$81.17

8

.CAP

57121-27H00

$56.05

9

.GASKET

57157-27H00

Unavailable

10

.SCREW

02112-0520B

$1.84

11

NUT This part replaces 08310-0005B.

08310-0005A

$1.84

12

.HOLDER

57126-07G00

$29.10

13

.BOLT

57127-07G00

$11.95

14

GRIP

57211-21G10

$10.15

15

LEVER SET,REAR BRAKE This part replaces 57501-27H10.

57501-27H12

$105.82

16

.LEVER SET,BRAKE

57620-27820

$79.88

17

.BOLT,PIVOT

57431-09F00

$12.90

18

.NUT

08319-2106A

$1.91

19

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

$11.64

20

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

$8.36

21

..BOLT

01547-0620B

$2.45

22

.STOPPER,BRAKE LEVER

57790-38FA0

$45.37

23

COVER,BRAKE LEVER This part replaces 57541-38FA0.

57541-38FA1

$8.70

24

SWITCH ASSY,HANDLE LH

37400-27H00

$176.37

25

.LEVER,CHOKE

37571-19B01

$12.15

26

.COVER,CHOKE

37576-19B01

$6.79

27

.SCREW

02112-05407

$2.06

28

.SCREW

02112-05457

$1.86
