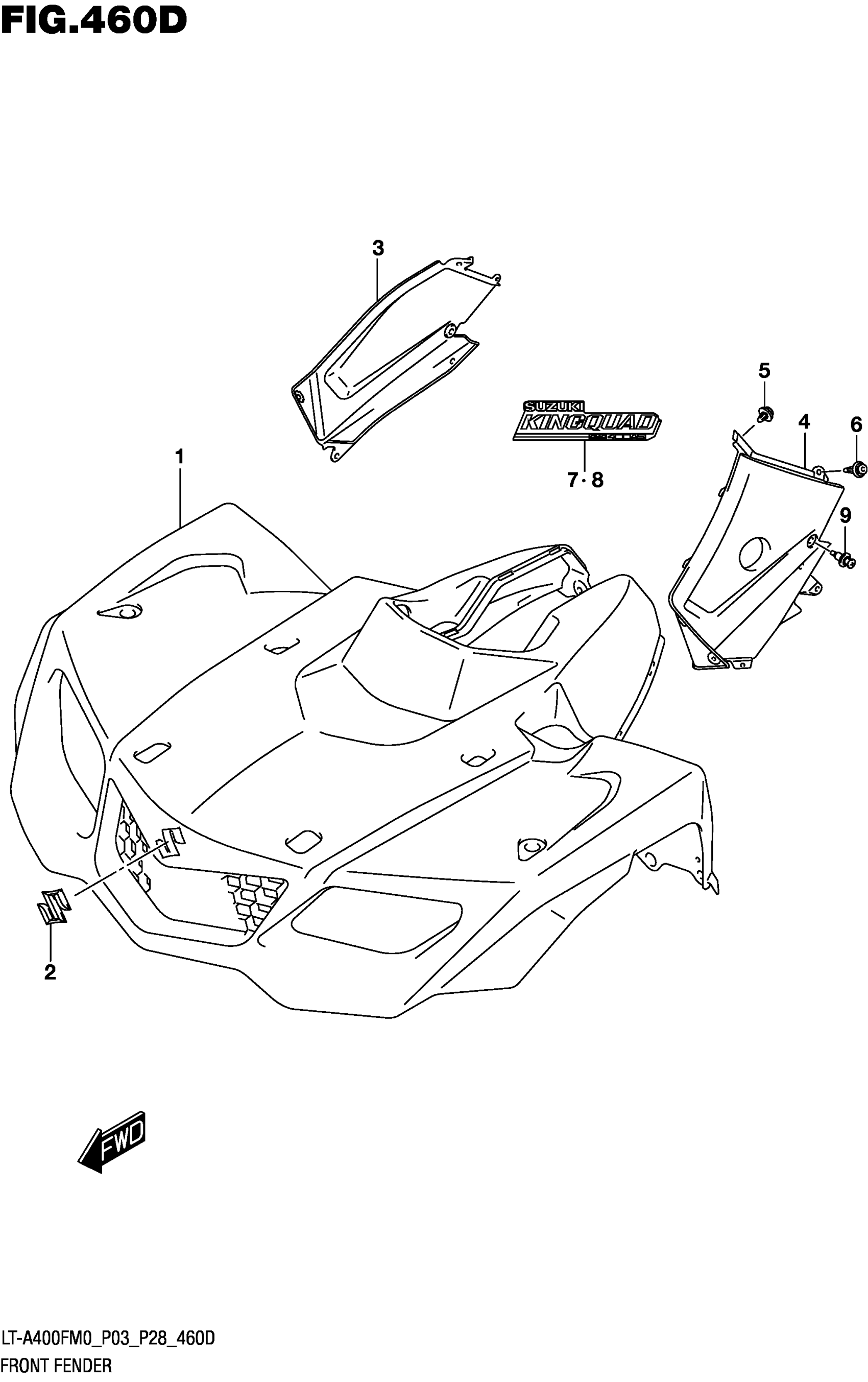

Suzuki LT-A400FM0 (2020) FRONT FENDER (LT-A400FZM0 P28) Diagram

Description

Price

1-1

FENDER,FRONT (RED) This part replaces 53111-27H01-YT9.

53111-27H02-YT9

$343.08

1-2

FENDER,FRONT (GREEN) This part replaces 53111-27H01-YLG.

53111-27H02-YLG

$331.13

1-3

FENDER,FRONT (WHITE) This part replaces 53111-27H01-30H.

53111-27H02-30H

$343.08

1-4

FENDER, FRONT (CAMOUFLAGE)

53111-27H11-PHW

$668.47

1-5

FENDER, FRONT (BLACK)

53111-27H30-QFA

$613.58

1-6

FENDER,FRONT (BRONZE)

53111-27H30-QMA

$435.90

EMBLEM,"S"

68151-03G40

$17.03

COVER,SIDE,R (BLACK) This part replaces 53112-27H02-291.

53112-27H04-291

$52.96

COVER,SIDE,L (BLACK) This part replaces 53122-27H11-291.

53122-27H13-291

$48.62

CLIP (D:2.4,ID:23.7)

09409-07333

$2.31

CLIP

09409-08335

$2.47

EMBLEM,FRONT FENDER RH (GRAY, | (GRAY)

68151-27HB0-BM6

$24.07

EMBLEM,FRONT FENDER LH (GRAY, | (GRAY)

68152-27HB0-BM6

$24.07

CLIP

09409-10306

$3.04
