Description

Price

1

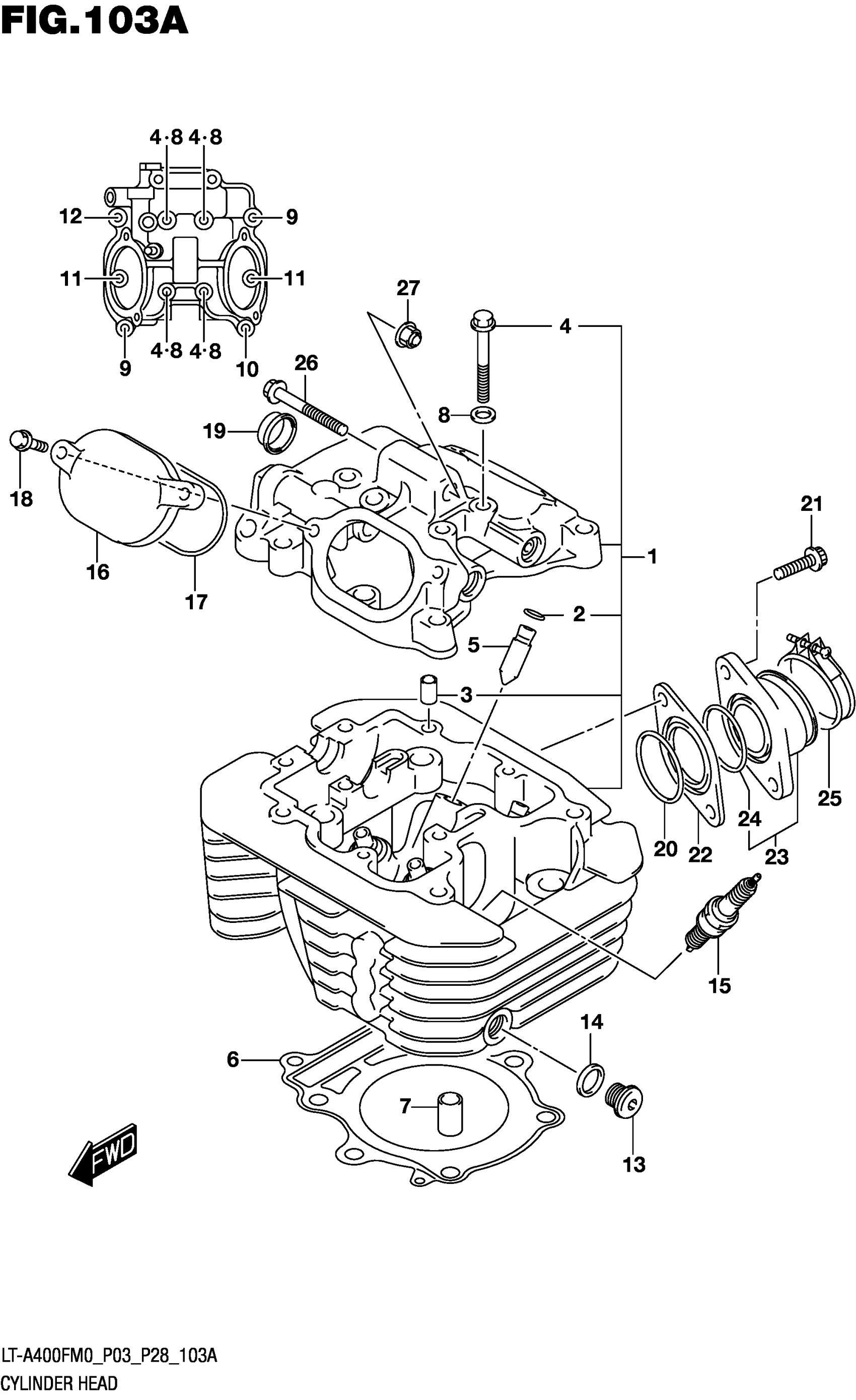

HEAD ASSY, CYLINDER

11100-27H20

$1,173.53

2

.RING (10X85)

09381-10004

$1.50

3

.PIN (8X11)

09206-08001

$1.78

4

.BOLT (6X55)

09103-06102

$2.10

5

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

$39.23

6

.GASKET,CYLINDER HEAD

11141-38F00

$35.76

7

PIN (13X22)

09206-13004

$2.40

8

GASKET (5.8X13X1.2)

09168-06023

$2.35

9

BOLT (6X35)

09103-06108

$2.23

10

BOLT (6X39)

09103-06026

$1.98

11

BOLT (6X25)

01550-0625A

$1.97

12

BOLT (L:30)

01550-0630A

$2.32

13

PLUG (L:12)

09248-12004

$7.95

14

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

15-1

PLUG,SPARK (IU22D)

09482-00553

$17.50

15-2

PLUG,SPARK (CR7EIA-9)

09482-00554

$11.97

15-3

PLUG,SPARK (IU24D) | OPT

09482-00555

$17.96

15-4

PLUG,SPARK (CR8EIA-9) | OPT

09482-00556

$10.85

15-5

PLUG,SPARK,CR6EIA-9 (CR6EIA-9 | OPT

09482-00590

$17.18

16

CAP,INSPECTION

11175-47D00

$24.10

17

.O RING,INSPECTION CAP

11177-14D01

$4.60

18

BOLT (6X20)

01550-0620A

$1.97

19

PLUG (OD:30)

09241-25007

$6.17

20

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

21

BOLT

07120-0625A

$2.50

22

INSULATOR, INTAKE PIPE

13117-38F01

$9.24

23

PIPE ASSY,INTAKE This part replaces 13101-27H00.

13101-27H01

$53.92

24

.O-RING (D:2.4,ID:39.7)

13118-38F00

$5.67

25

CLAMP

09402-54208

$5.57

26

.BOLT (8X60)

09103-08217

$3.72

27

NUT

08319-3108A
