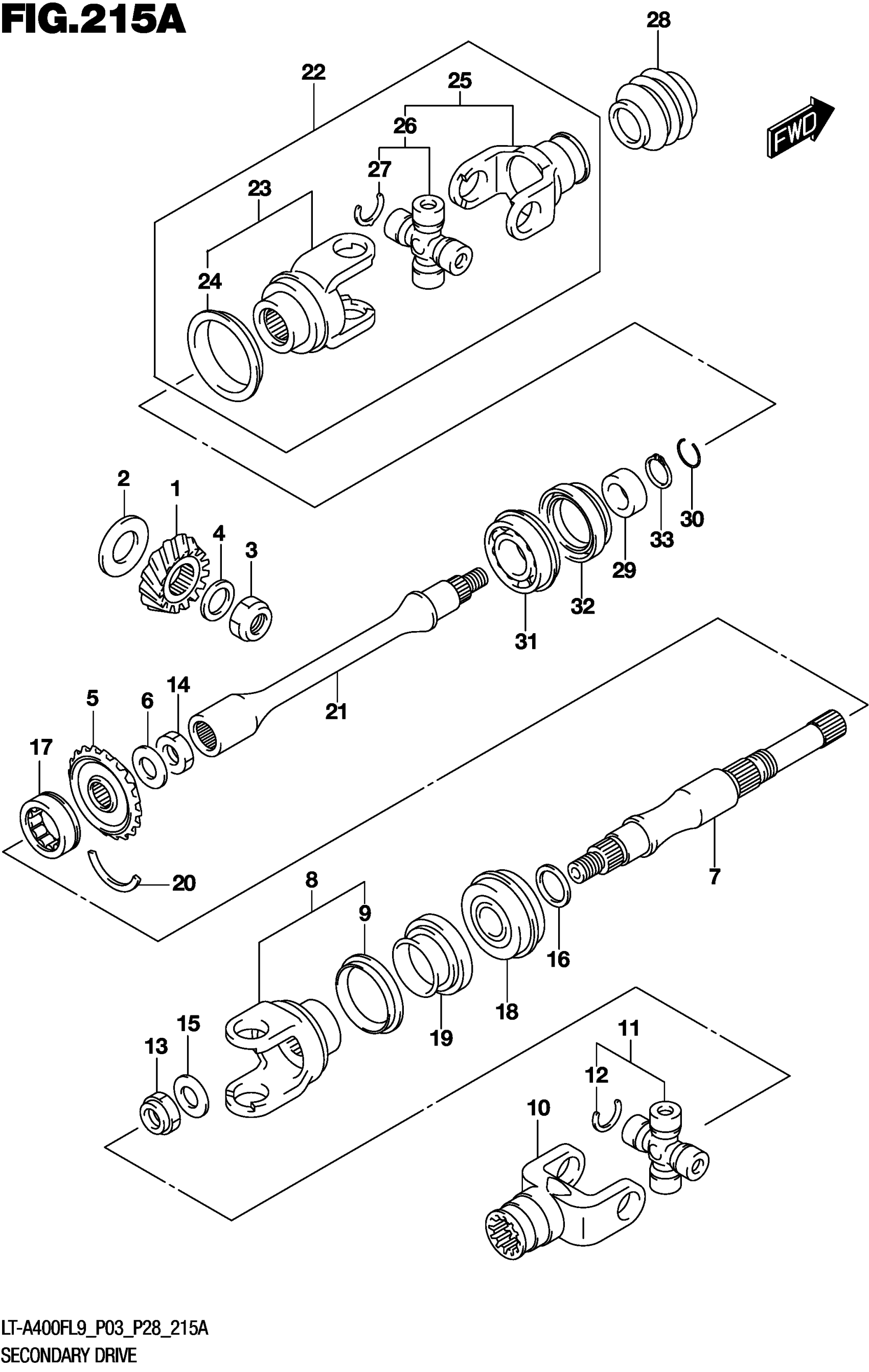

Suzuki LT-A400FL9 (2019) SECONDARY DRIVE Diagram

#

Description
Price

1

GEAR,SEC DRIVE BEVEL (NT:17)

24911-38F00

Unavailable

2

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.55/0.58/0.60/

24935-03811

$133.70

2

SHIM SET,SEC DRIVE BEVEL | 0.63/0.65/0.68/0.70/0.73/0.75/

24935-03811

$133.70

2

SHIM SET,SEC DRIVE BEVEL | 0.78/0.80/0.83/0.85/0.88/0.90/

24935-03811

$133.70

2

SHIM SET,SEC DRIVE BEVEL | 0.93/0.95/0.98/1.00/1.03/1.05/

24935-03811

$133.70

2

SHIM SET,SEC DRIVE BEVEL | 1.08/1.10/1.13/1.15/1.18/1.20/

24935-03811

$133.70

2

SHIM SET,SEC DRIVE BEVEL | 1.23/1.25/1.28/1.30

24935-03811

$133.70

3

NUT

09140-20012

$4.32

4

SHIM (20X32X1)

09181-20223

$2.92

5

GEAR,SEC DRIVEN BEVEL (NT:21)

24921-38F00

Unavailable

6

WASHER

08211-22365

$5.97

7

SHAFT,SEC DRIVEN OUTPUT RR

24971-27H00

Unavailable

8

YOKE,RR DRIVE OUTPUT

27130-03G00

$156.94

9

.PLATE

27592-38F00

$11.33

10

YOKE, PROP SHAFT JOINT

27140-27H01

$139.15

11

JOINT SET,UNIVERSAL This part replaces 27200-19810.

27200-19811

$59.54

12

.CIRCLIP

09380-20016

$2.32

13

NUT

09159-16003

$4.00

14

NUT

09159-22005

$27.75

15

WASHER (16X30X3)

09160-16026

$5.00

16

SHIM SET,SEC DRIVEN BEVEL | T:0.55/0.58/0.60/0.63/0.65/0.68

24945-03811

$111.58

16

SHIM SET,SEC DRIVEN BEVEL | /0.70/0.73/0.75/0.78/0.80/0.83

24945-03811

$111.58

16

SHIM SET,SEC DRIVEN BEVEL | /0.85/0.88/0.90/0.93/0.95/0.98

24945-03811

$111.58

16

SHIM SET,SEC DRIVEN BEVEL | /1.00/1.03/1.05/1.08/1.10/1.13

24945-03811

$111.58

16

SHIM SET,SEC DRIVEN BEVEL | /1.15/1.18/1.20/1.23/1.25/1.28

24945-03811

$111.58

16

SHIM SET,SEC DRIVEN BEVEL | /1.30/1.33/1.35/1.38/1.40

24945-03811

$111.58

17

BEARING (30X50X17)

09263-30050

$57.07

18

BEARING (25X52X20.6)

09267-25014

$124.50

19

OIL SEAL (34X52X9)

09283-34008

$20.72

20

C RING

09390-50002

$3.03

21

SHAFT,SEC DRIVEN OUTPUT FR

24961-27H50

$237.42

22

YOKE ASSY,UNIVERSAL JOINT This part replaces 27100-27H01.

27100-27H02

$306.75

23

.YOKE, FR DRIVE OUTPUT

27130-27H01

$183.00

24

.PLATE

27592-38F00

$11.33

25

YOKE, PROP SHAFT JOINT

27140-27H01

$139.15

26

JOINT SET,UNIVERSAL This part replaces 27200-19810.

27200-19811

$59.54

27

.CIRCLIP

09380-20016

$2.32

28

BOOT,PROPELLER SHAFT This part replaces 27153-27H10.

27153-27H11

$7.62

29

COLLAR,FRONT DRIVE OUTPUT

27591-27H00

$25.98

30

CIRCLIP (21.5X1.2)

09381-19005

$2.19

31

BEARING (25X52X15)

09262-25131

$49.88

32

OIL SEAL (34X52X9)

09283-34008

$20.72

33

CIRCLIP

08331-31229

$2.48
