2019 Suzuki LT-A400FL9 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2019 Suzuki LT-A400FL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

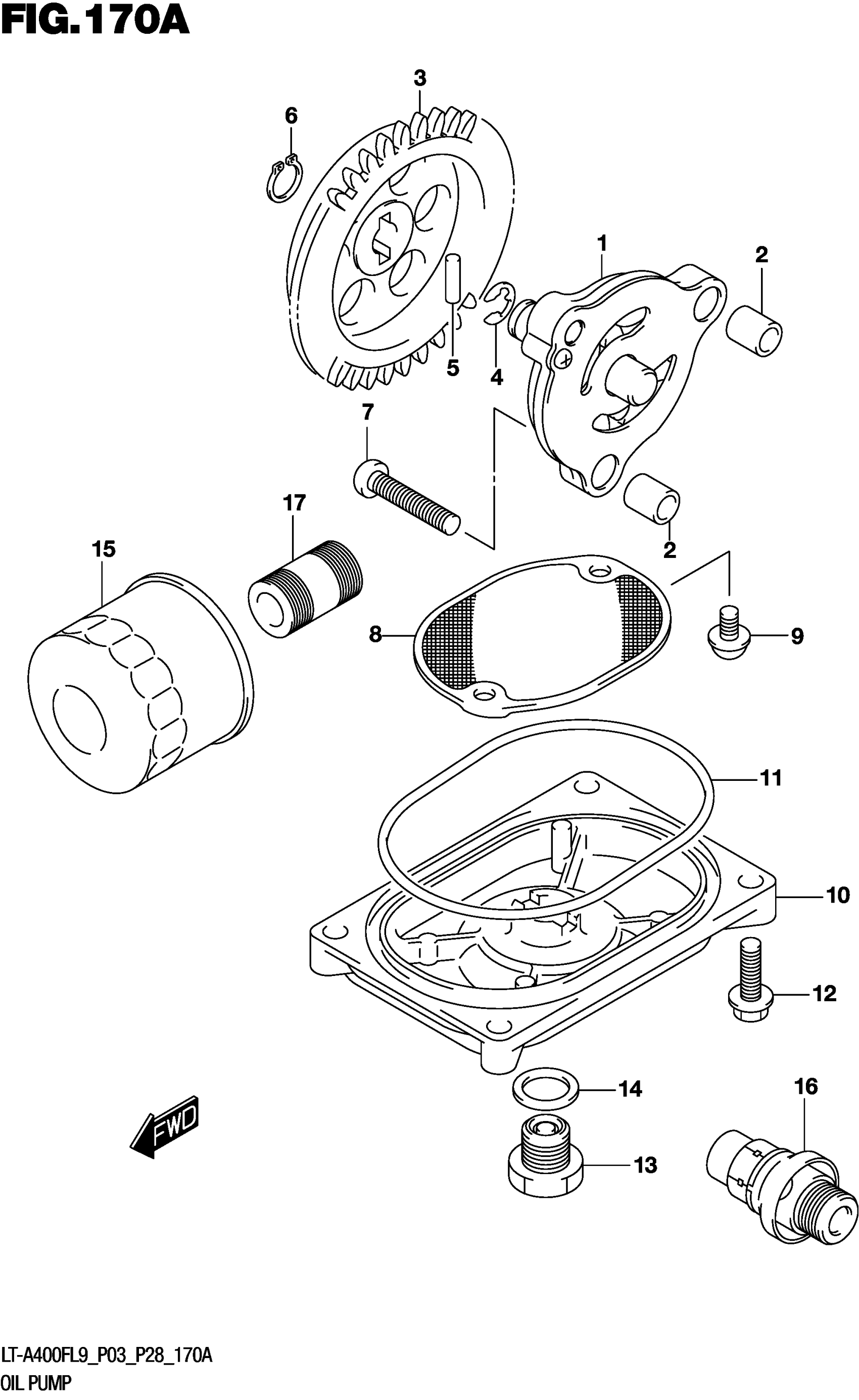

2019 Suzuki LT-A400FL9 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,ENGINE OIL

16400-27H00

1
Out of stock

2

PIN

04211-09109

2
Out of stock

3

GEAR,OIL PUMP DRIVEN (NT:35)

16331-14D02

1
Out of stock

4

SHIM (10X18X0.5)

09181-10158

1
Out of stock

5

PIN (4X15.8)

09261-04009

1
Out of stock

6

CIRCLIP

08331-31109

1
Out of stock

7

SCREW

02112-0625A

3
Out of stock

8

STRAINER,ENGINE OIL

16520-27H00

1
Out of stock

9

SCREW

02112-7512A

2
Out of stock

10

CAP,OIL STRAINER

16523-24501

1
Out of stock

11

.O RING (D:2.4,ID:82)

16528-24500

1
Out of stock

12

BOLT

01547-0625A

4
Out of stock

13

PLUG (MAGNETO) | OIL DRAIN

09247-14002

1
Out of stock

14

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

15

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

1
Out of stock

16

VALVE ASSY,OIL RELIEF (6K)

16440-27A01

1
Out of stock

17

UNION,OIL STAND

16591-06B01

1
Out of stock
