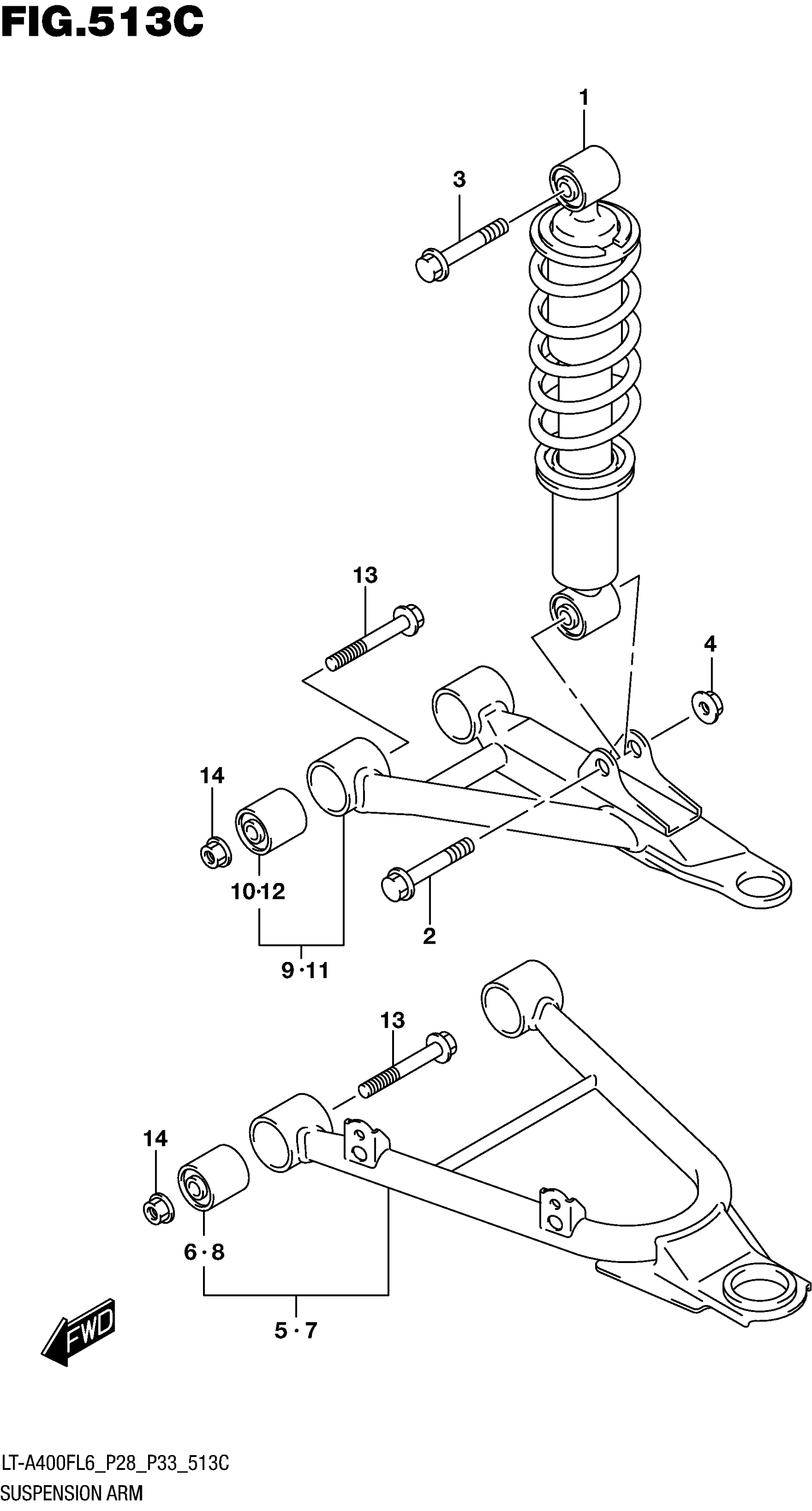

Suzuki LT-A400FL6 (2016) SUSPENSION ARM (LT-A400FZL6 P33) Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK

52100-27H10-019

$178.58

1

(BLACK)

52100-27H10-019

$178.58

2

BOLT (10X48) | LOWER

09103-10126

$4.07

3

BOLT (10X48) | UPPER

09103-10352

$6.38

4

NUT

08319-3110A

$2.73

5

ARM SET,SUSPENSION LOWER RH

52410-27820

$351.77

6

.BUSH

09319-10055

$19.25

7

ARM SET,SUSPENSION LOWER LH

52420-27820

$246.01

8

.BUSH

09319-10055

$19.25

9

ARM SET,SUSPENSION UPPER RH

52430-27810

$332.32

10

.BUSH

09319-10055

$19.25

11

ARM SET,SUSPENSION UPPER LH

52440-27810

$332.32

12

.BUSH

09319-10055

$19.25

13

BOLT (10X60)

09103-10301

$6.52

14

NUT

09159-10115

$3.21
